Product Number: SAC15030B
Variations

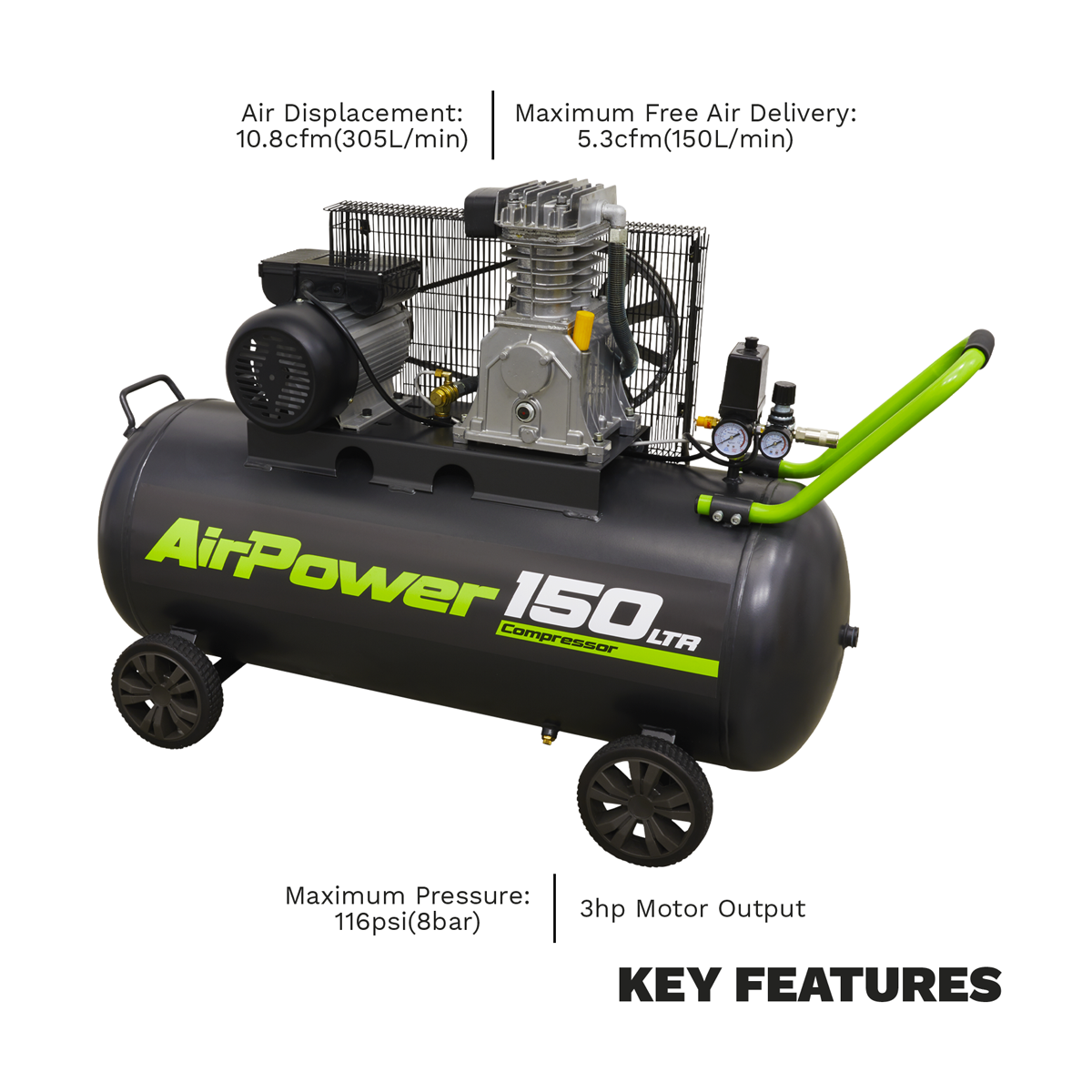

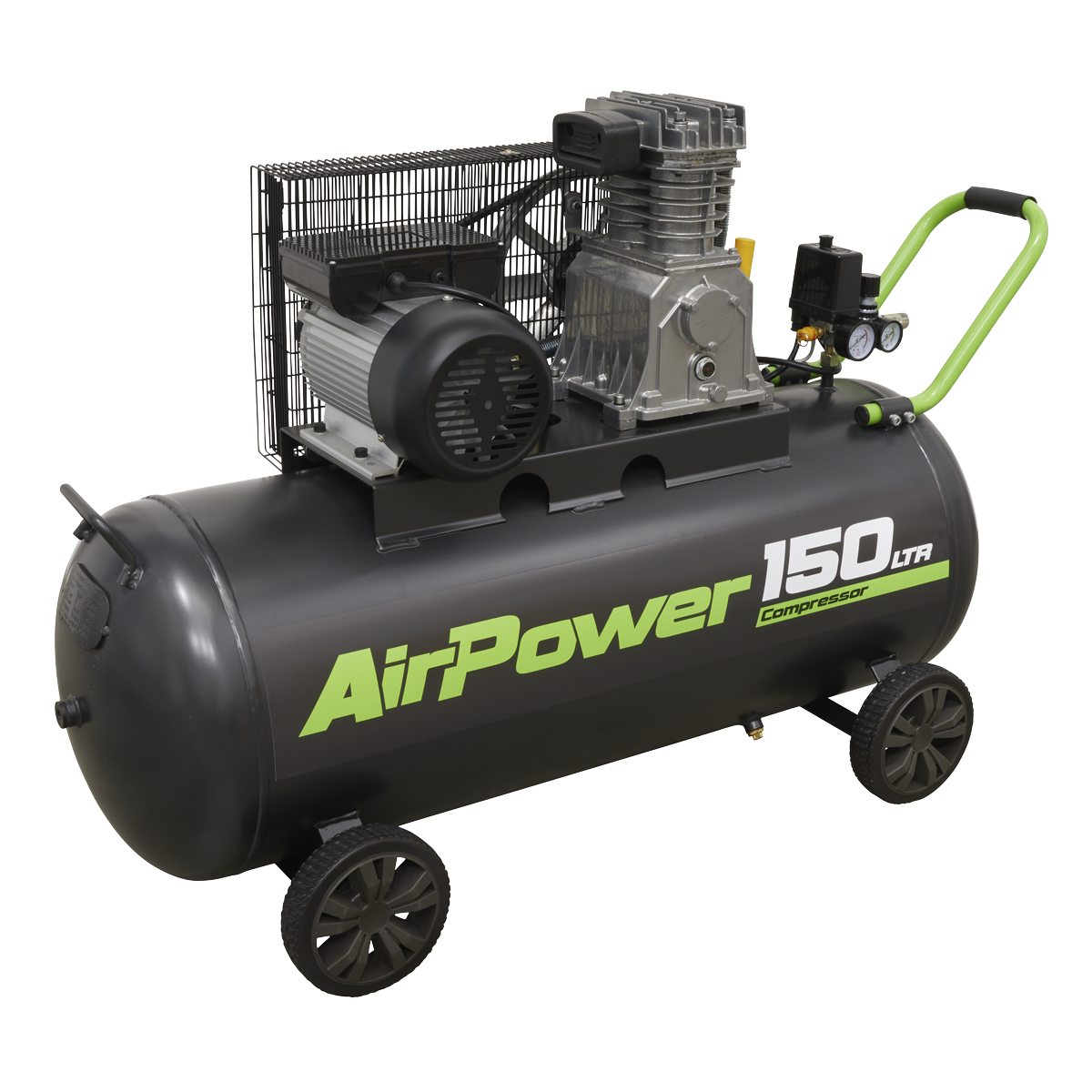

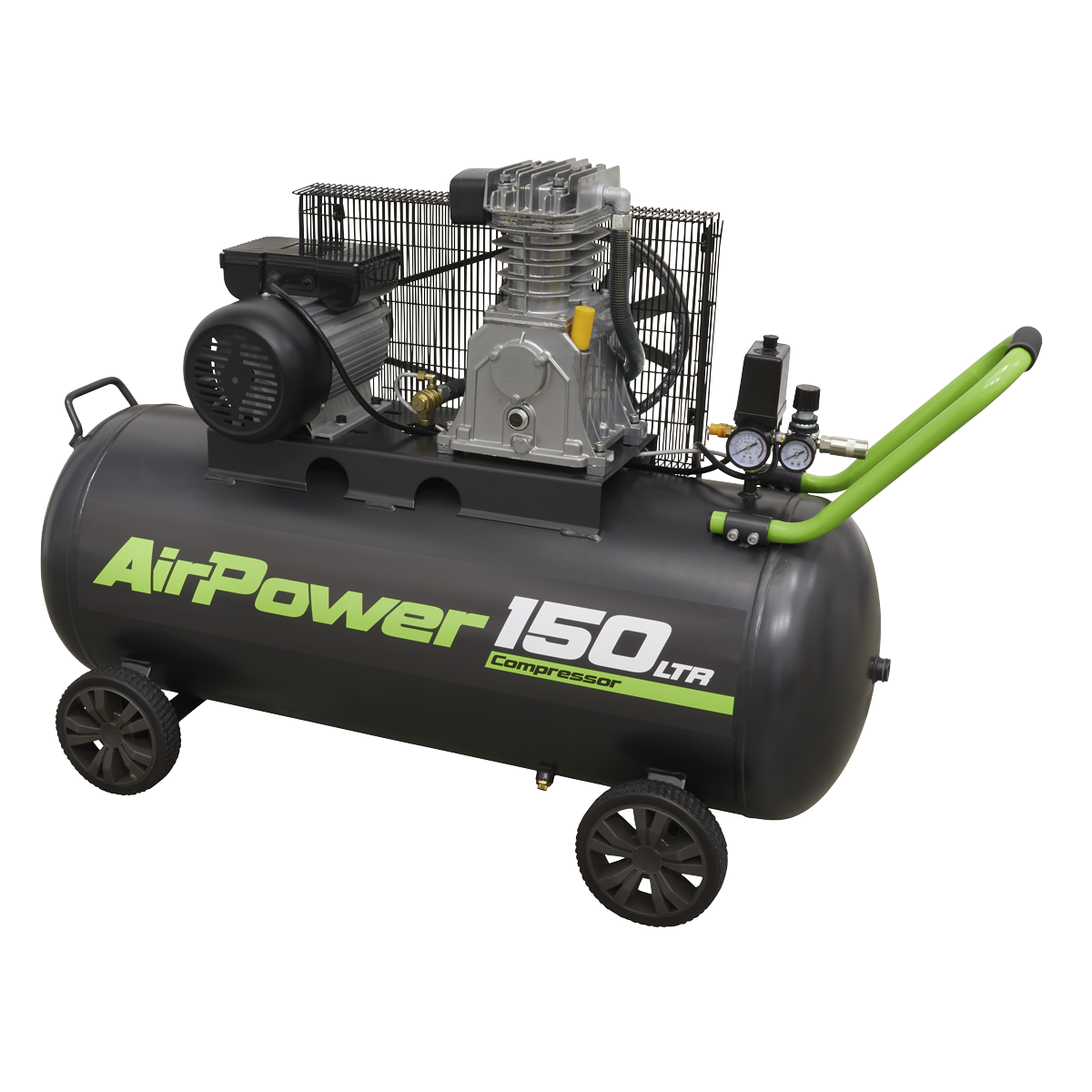

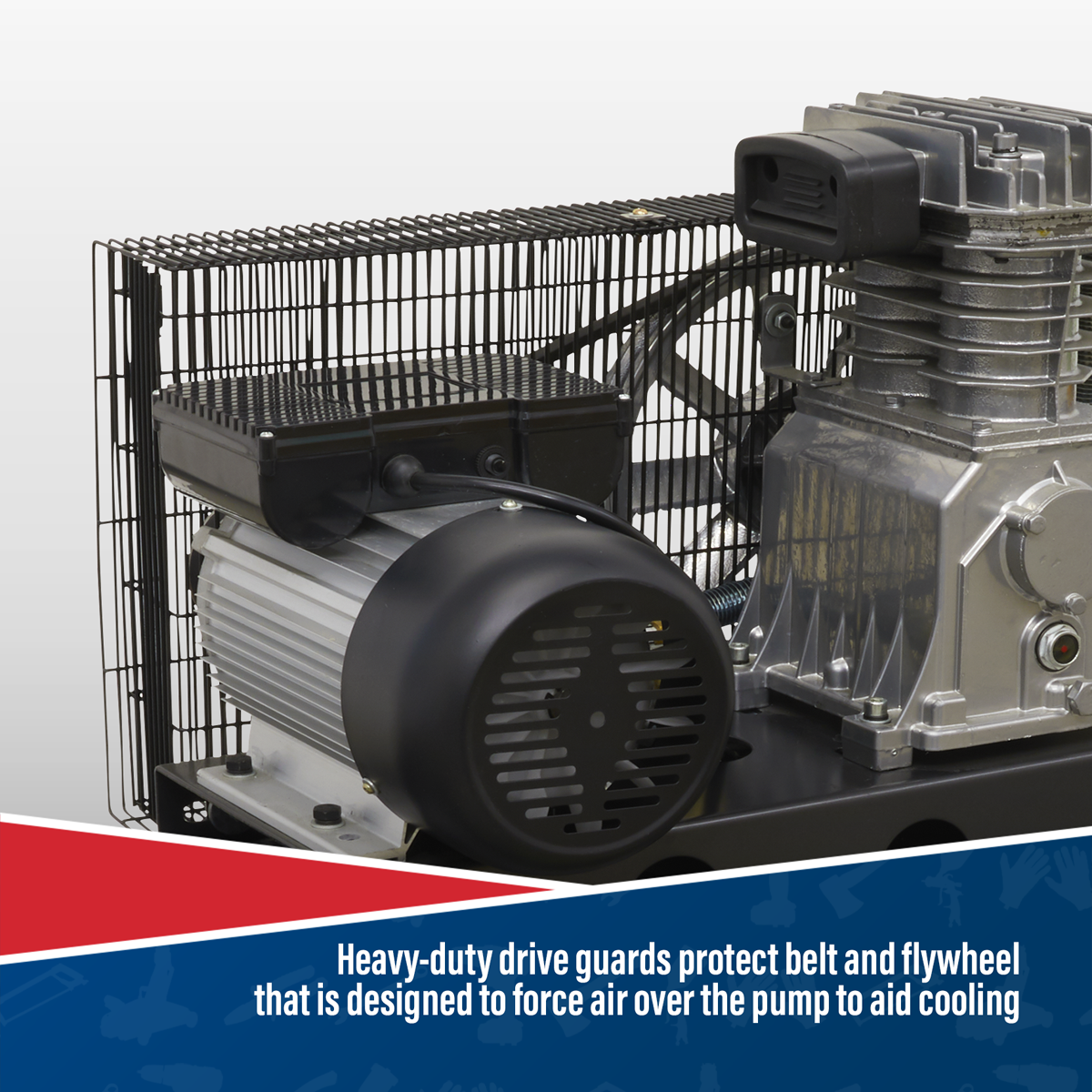

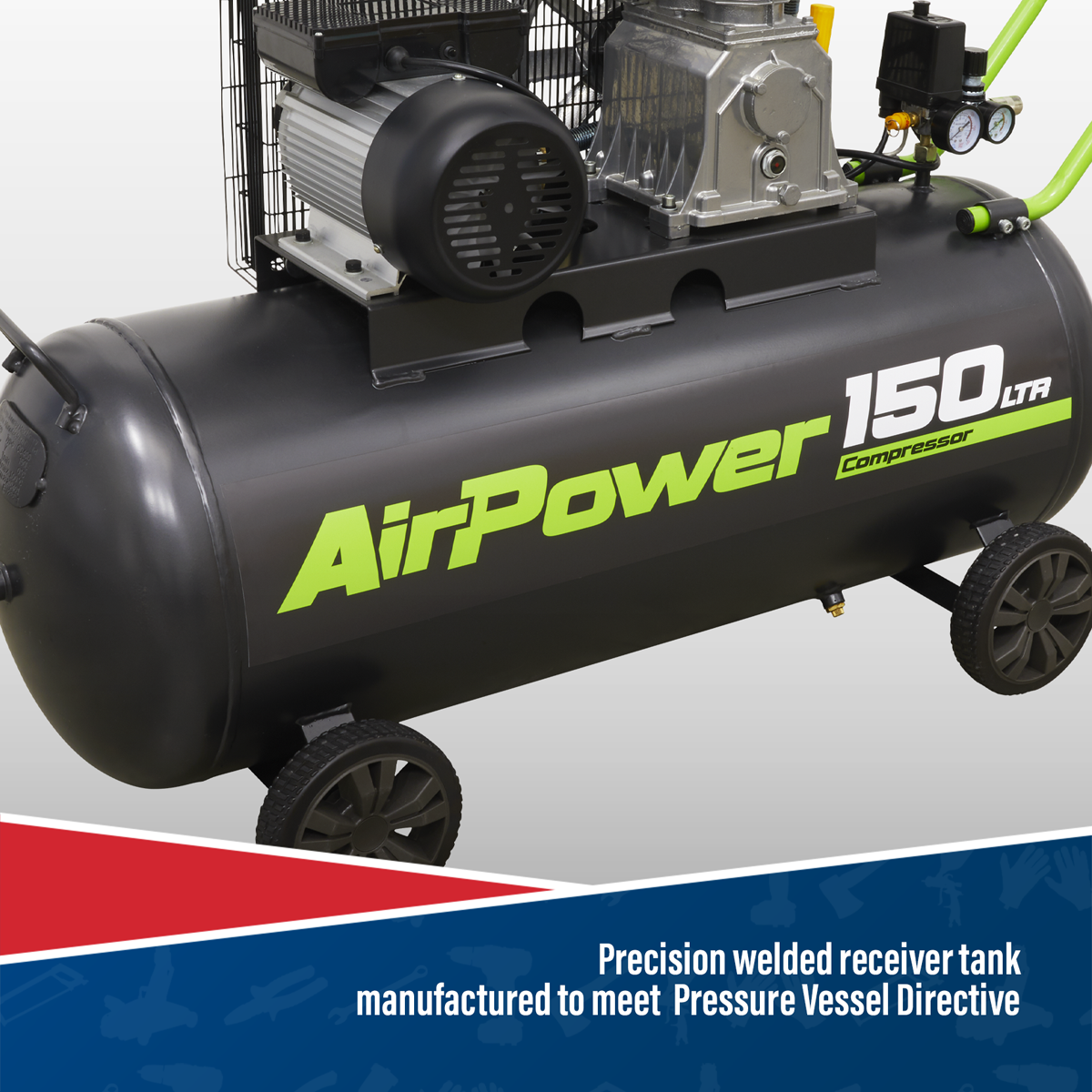

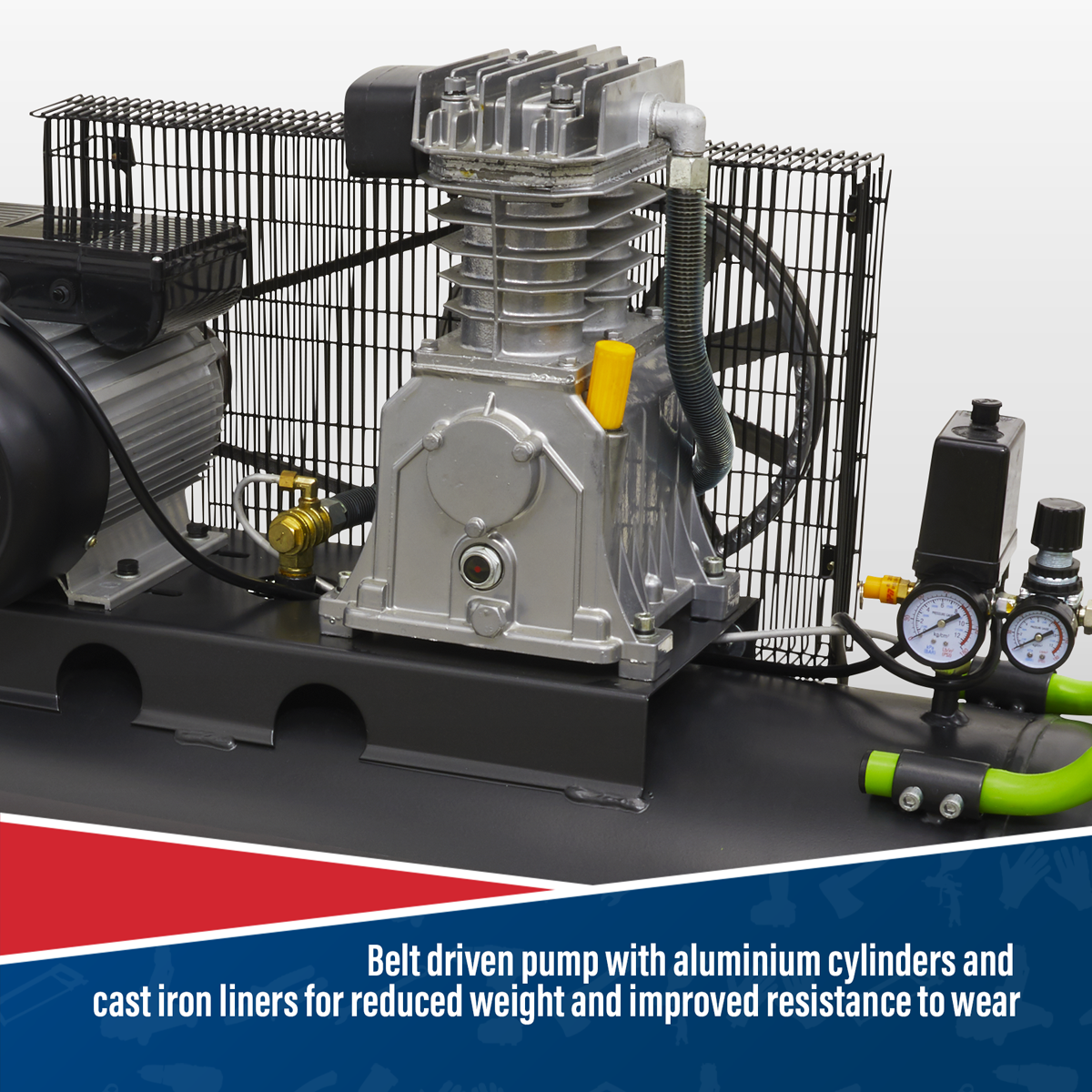

Sealey SAC15030B Air Compressor 150L Belt Drive 3hp is a belt‑driven single-phase unit suited to general-purpose workshop and trade applications. A 3hp motor on 230V 13A drives a pump with aluminium cylinders and cast iron liners, combining reduced weight with improved resistance to wear. It delivers 10.8cfm (305L/min) air displacement and 5.3cfm (150L/min) free air delivery at up to 116psi (8bar), making it ideal for inflating, blow‑off work and lighter air tools. The 150L receiver provides good storage capacity, while heavy‑duty drive guards protect the belt and flywheel, which is designed to force air over the pump to aid cooling. A precision‑welded tank manufactured to Pressure Vessel Directive standards ensures durability. With a 97dB(A) noise level, quick release outlet and robust construction, this compressor is a practical choice for general workshops needing a dependable 8bar, 150L air source without stepping up to higher‑pressure systems.
Key Features:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Model No | SAC15030B |
|---|---|
| Air Displacement cfm(L/min) | 10.8(305) |
| Brand | Sealey |
| Maximum Free Air Delivery cfm(L/min) | 5.3(150) |
| Maximum Pressure | 116psi(8bar) |
| Minimum Rated Supply | 13A |
| Motor Output | 3hp |
| Nett Weight | 88kg |
| Noise Level | 97dB(A) |
| Oil Capacity | 3 x 0.3L |
| Outlet | Quick release coupling |
| Phase | 1ph |
| Receiver Capacity | 150L |
| Size (W x D x H) | 1300 x 510 x 815mm |
| Speed | 1000rpm |
| Supply | 230V/13A |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: UK Mainland Free
Next Day Delivery Available
Delivery Estimate: 2 to 4 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
Sealey SAC32055B Air Compressor 200L Belt Drive 5.5hp 3ph
£1,505.24
£1,475.73
2% OFF
Free delivery in UK Mainland
|
Sealey SAC1903B Compressor 90L Vertical Belt Drive 3hp
£1,088.46
£1,067.12
2% OFF
Free delivery in UK Mainland
|
Draper 55305 WHEELED BELT-DRIVEN AIR COMPRESSOR, 150L, 2.2KW
£593.06
£581.43
2% OFF
Free delivery in UK Mainland
|
Draper 55304 STATIONARY BELT-DRIVEN AIR COMPRESSOR, 150L, 2.2KW
£592.03
£580.42
2% OFF
Free delivery in UK Mainland
|
||
| Technical Specification | ||||||
|---|---|---|---|---|---|---|
| PRODUCT NUMBER | SAC32055B | SAC1903B | 70530 | 55305 | 55304 | 06476 |
| Motor Power | 2200W | 2200W | ||||
| Input current | 13A | 13A | ||||
| Maximum Pressure (bar) | 0 | 10 | 10 | 0 | ||
| Free AirDelivery (FAD) | 0 | 8.44 | 8.44 | 0 | ||
| Tank Size | 0 | 150 | 150 | 0 | ||
| Maximum Pressure (psi) | 0 | 145 | 145 | 0 | ||
| Air displacement | 13.03 CFM | 13.03 CFM | ||||
| Show More | ||||||
A. It is a 150 litre, 3hp belt-drive compressor for professional workshops, focused on moderate air demand.
A. It offers 10.8cfm displacement and 7.8cfm maximum free air delivery, suitable for lighter workshop tasks.
A. The unit operates up to 116psi, around 8bar, suitable for many general pneumatic tools.
A. Full cast cylinders with alloy heads provide effective heat dissipation and long life.
A. They protect belt and flywheel while encouraging airflow over the pump to aid cooling.
A. It targets professional workshops requiring a 150 litre compressor with modest air output.
A. Variants include SAC1103B, SAC1153B, SAC1203B, SAC1276B, SAC1503B, SAC1903B, SAC20030B, SAC2103B, SAC2153B, SAC2203B, SAC2276B, SAC3103B, SAC3153B and SAC3203B.
A. It runs on 230V single-phase with a 13A minimum rated connection.
A. It offers lower running costs and adequate capacity for lighter or intermittent air tool use.
A. Belt drive enables suitable pump speed for balanced performance and durability.
A. It suits light automotive work, maintenance tasks and low-demand air tools.
