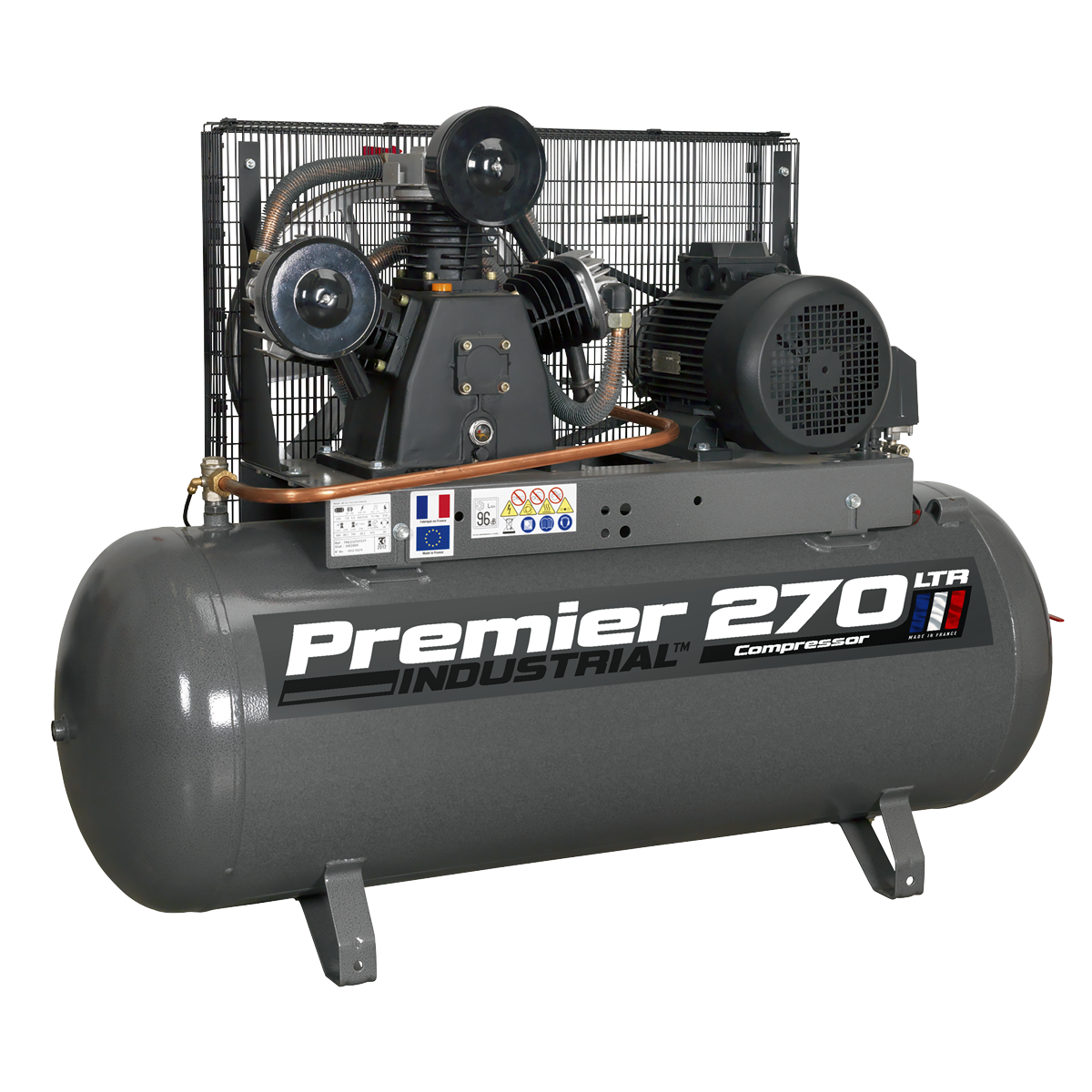

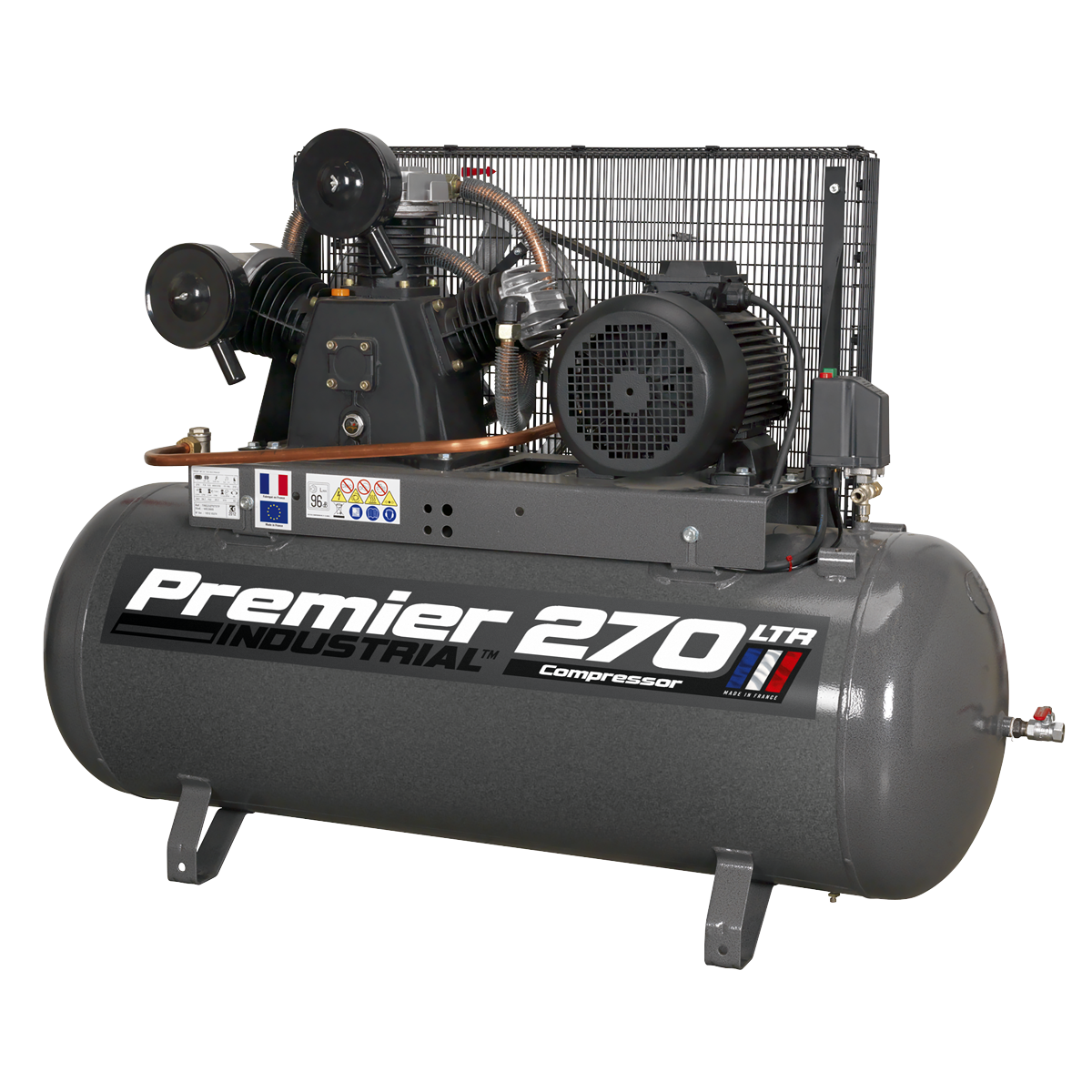

Sealey SAC32775B Air Compressor 270L Belt Drive 7.5hp 3ph

Product Number: SAC32775B

£2,276.48 £2,231.84

BUY NOW

ADD TO CART

Variations

SAC32055B

SAC42055B

SAC55075B

SAC52775B

Click on the button below to find the right air compressor

Air Compressor Finder

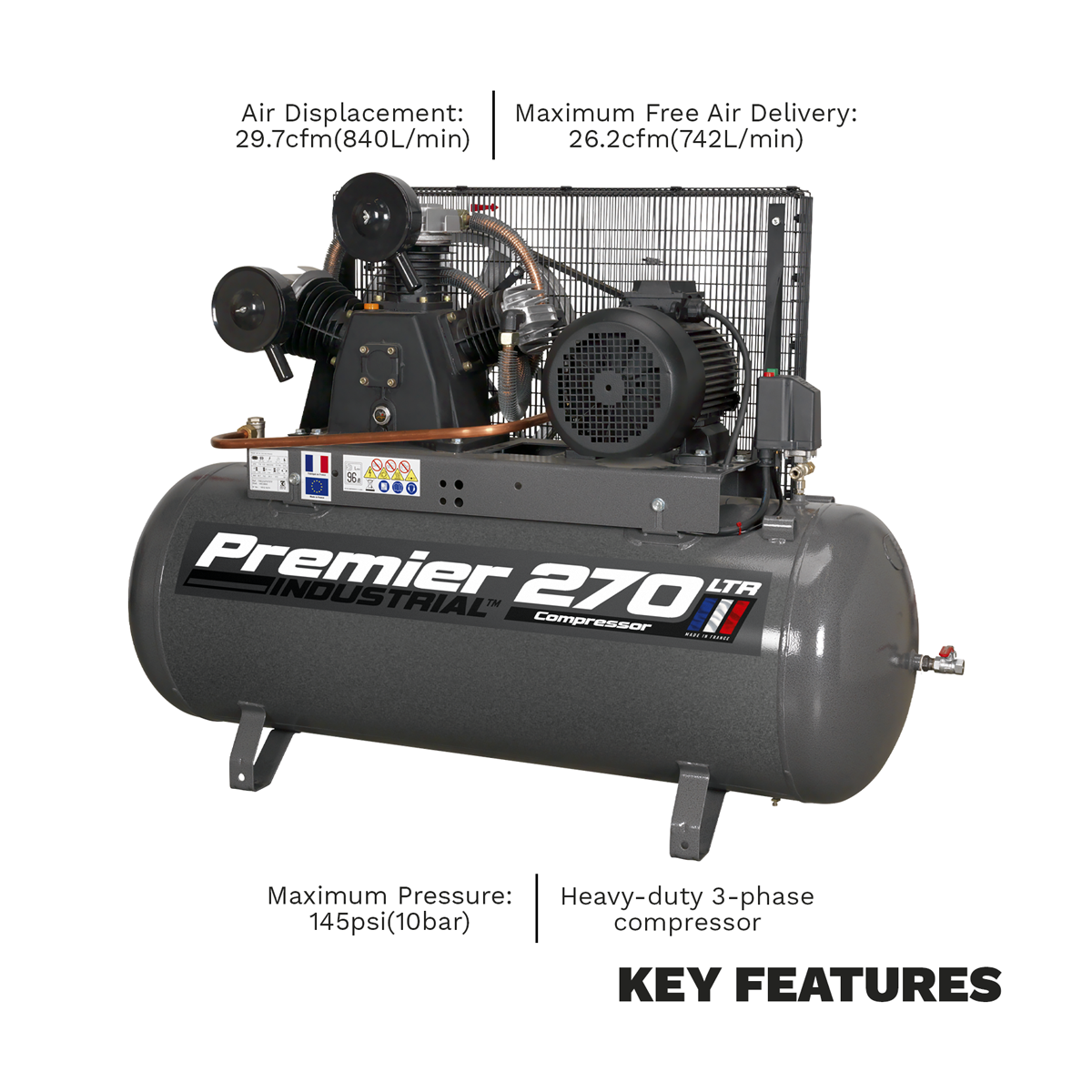

Sealey SAC32775B Air Compressor 270L Belt Drive 7.5hp 3ph is a powerful three-phase unit for workshops with high continuous air demand. Its triple-cylinder pump and 7.5hp motor deliver 29.7cfm (840L/min) displacement and 26.2cfm (742L/min) free air delivery at up to 145psi (10bar). Heavy-duty full cast cylinders with alloy heads enhance heat dissipation and pump life, while drive guards protect the belt and flywheel, which forces cooling air over the pump during operation. The large 270L receiver supports extended tool use and multiple outlets with fewer start/stop cycles. Supplied with CE certification, test certificates and operating/maintenance manual, the unit is designed for the professional workshop where reliability and high output are critical. With a 415V 32A supply requirement, the SAC32775B is well suited to busy garages, bodyshops and light industrial sites seeking a robust main plant compressor.

Key Features:

Air Displacement: 29.7cfm(840L/min).
Maximum Free Air Delivery: 26.2cfm(742L/min).
Maximum Pressure: 145psi(10bar).
Heavy-duty 3-phase compressor suitable for the professional workshop.

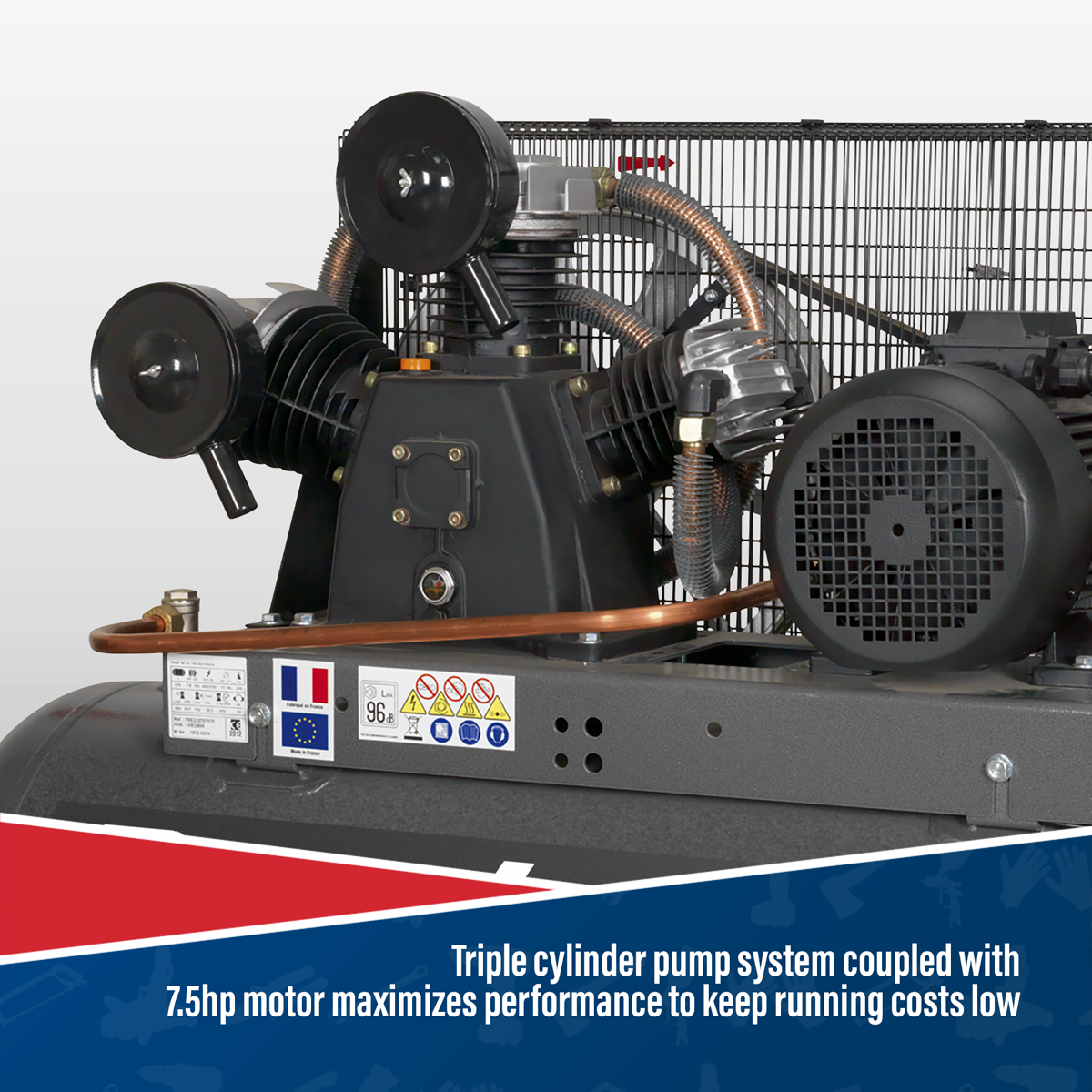

Triple cylinder pump system coupled with a 7.5hp motor maximizes performance to keep running costs low compared to single stage, single phase models.

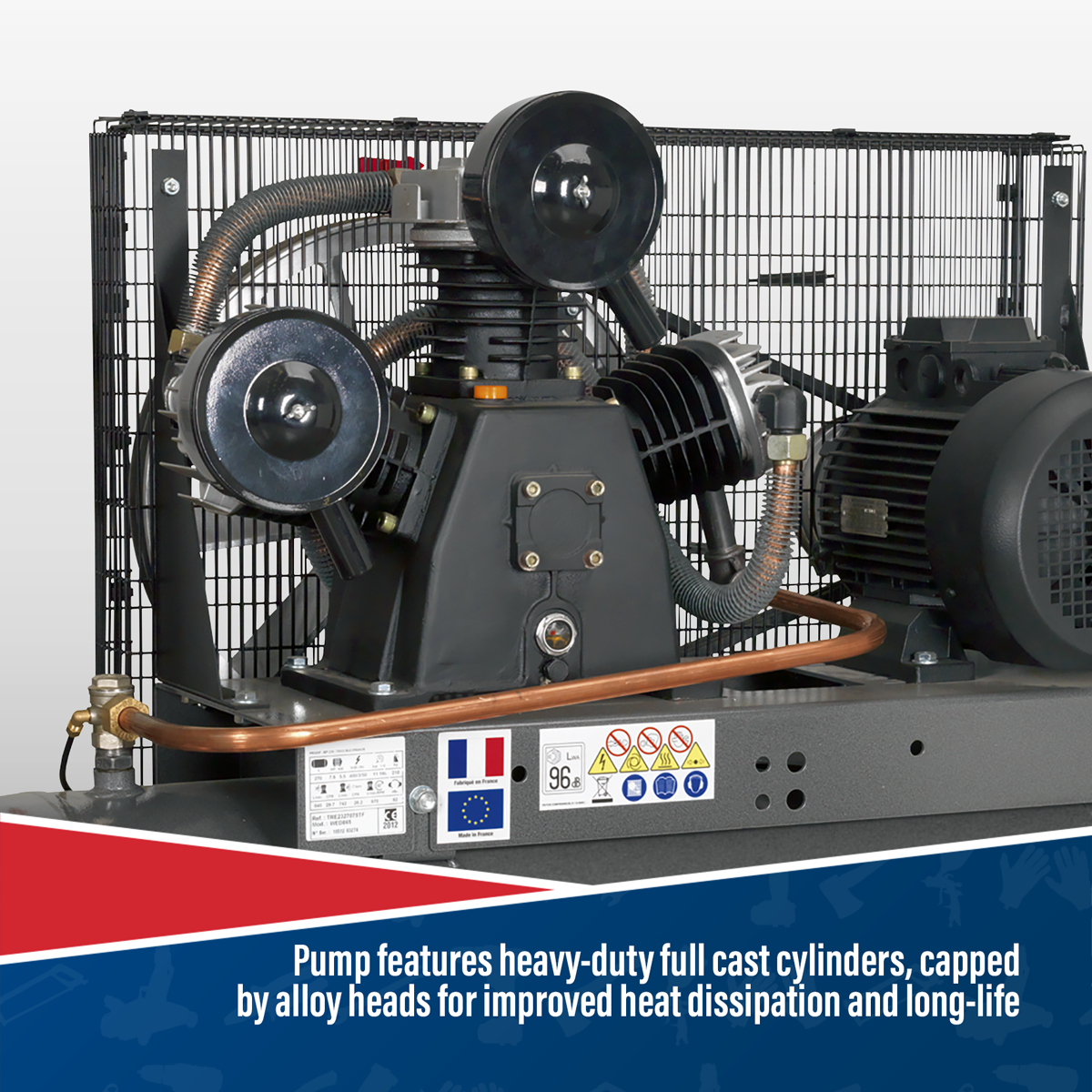

Pump features heavy-duty full cast cylinders, capped by alloy heads for improved heat dissipation and long-life.

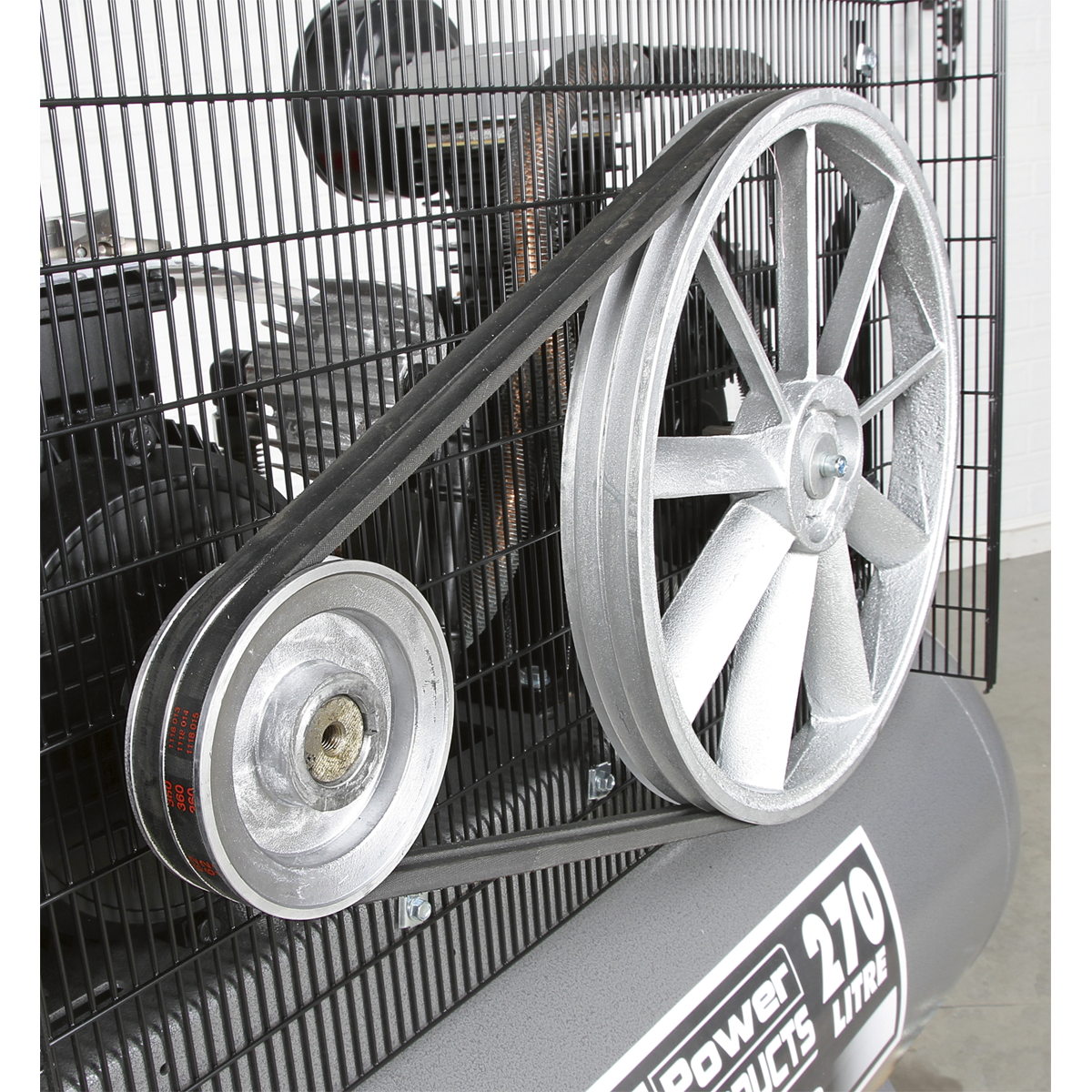

Heavy-duty drive guards protect belt and flywheel that is designed to force air over the pump to aid cooling.
Supplied with full CE certification, test certificates and operating/maintenance manual.
Includes a drain valve for easy release of condensed water build-up in the tank.
3 Year guarantee*.
This item is heavy. Extra assistance must be provided at the delivery point to help its safe delivery.

About PartsForMachines:

PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.

BUY NOW

ADD TO CART

Model No	SAC32775B
Air Displacement cfm(L/min)	29.7(840)
Brand	Premier
Maximum Free Air Delivery cfm(L/min)	26.2(742)
Maximum Pressure	145psi(10bar)
Minimum Rated Supply	32A
Motor Output	7.5hp
Nett Weight	193kg
Oil Capacity	1.7L
Outlet	1/2"BSP
Phase	3ph
Receiver Capacity	270L
Size (W x D x H)	1500 x 620 x 1080mm
Speed	970rpm
Supply	415V/32A

BUY NOW

ADD TO CART

Engine Parts	Product Number	Product Name	Recommended Units	Product Price

BUY NOW

ADD TO CART

Hi, I'm Simon, your PartsForMachines product expert.

Checking fit, size, power, or compatibility?

Ask your question — I’ll cut through the jargon.

Thinking

Disclaimer: This chat uses AI and may be inaccurate or incomplete. Always verify details on the product page, datasheets and on equipment manual. For precise advise, contact our customer support.

Standard Delivery: UK Mainland Free
Next Day Delivery Available
Delivery Estimate: 2 to 4 working days
Save Extra With 1 Offer
Compare With Similar Items
Use promo code "LFTH1" to get Additional 1% OFF

Question about this product? Click here

Compare with Similar products	Compare SIP 05302 PX3/200-SRB Belt Drive Compressor, Tank Capacity - 200 Litre, Max. Air Pressure - 10 Bar £778.45 £763.19 2% OFF Free delivery in Channel Island ADD	Compare SIP 06323 VN3/150-SB Vertical Belt Drive Compressor,Tank Capacity - 50 Litre, Max. Air Pressure - 10 Bar £934.15 £915.83 2% OFF Free delivery in Channel Island ADD	Compare SIP 05308 PX4/200B Belt Drive Compressor, Tank Capacity - 200 Litre, Max. Air Pressure - 10 Bar £891.72 £874.24 2% OFF Free delivery in Channel Island ADD	Compare SIP 06585 TN7.5/270 Compressor, Tank Capacity - 270 Litre, Max. Air Pressure - 10 Bar £1,694.20 £1,660.98 2% OFF Free delivery in Channel Island ADD	Compare SIP 05251 B3800/270 Tandem Compressor,Tank Capacity - 270 Litre, Max. Air Pressure - 10 Bar £2,524.52 £2,475.02 2% OFF Free delivery in Channel Island ADD	Compare SIP 06335 VN5.5/150-TB Vertical Compressor, Tank Capacity - 50 Litre, Max. Air Pressure - 10 Bar £1,446.27 £1,417.91 2% OFF Free delivery in Channel Island ADD	Compare SIP 06583TN5.5/200 Compressor, Tank Capacity - 200 Litre, Max. Air Pressure - 10 Bar £1,342.96 £1,316.63 2% OFF Free delivery in Channel Island ADD	Compare SIP 06587 TN10/270 Compressor, Tank Capacity - 270 Litre, Max. Air Pressure - 10 Bar £2,614.91 £2,563.64 2% OFF Free delivery in Channel Island ADD	Compare SIP 06291 ISBD7.5/270 Super Electric Compressor, Tank Capacity - 270 Litre, Max. Air Pressure - 11 Bar £1,987.33 £1,948.36 2% OFF Free delivery in Channel Island ADD	Compare SIP 06295 ISBD10/270 Super Electric Compressor, Tank Capacity - 270 Litre, Max. Air Pressure - 11 Bar £3,137.90 £3,076.37 2% OFF Free delivery in Channel Island ADD	Compare SIP 06297 ISBD15/500 Super Electric Compressor, Tank Capacity - 50 Litre, Max. Air Pressure - 11 Bar £4,393.06 £4,306.92 2% OFF Free delivery in Channel Island ADD	Compare SIP 04328 ISKP7/50 Super Petrol Compressor, Tank Capacity - 50 Litre, Max. Air Pressure - 10.3 Bar £1,250.82 £1,226.29 2% OFF Free delivery in Channel Island ADD	Compare SIP 04330 ISKP7/150 Super Petrol Compressor, Tank Capacity - 50 Litre, Max. Air Pressure - 10.3 Bar £1,472.83 £1,429.93 3% OFF Free delivery in Channel Island ADD	Compare SIP 04331 ISKP7/150ES Super Petrol Compressor, Tank Capacity - 50 Litre, Max. Air Pressure - 10.3 Bar £1,608.36 £1,576.82 2% OFF Free delivery in Channel Island ADD	Compare SIP 04444 ISHP5.5/50 Super Petrol Compressor, Tank Capacity - 50 Litre, Max. Air Pressure - 10.3 Bar £1,291.31 £1,265.99 2% OFF Free delivery in Channel Island ADD
Technical Specification
PRODUCT NUMBER	05302	06323	05308	06585	05251	06335	06583	06587	06291	06295	06297	04328	04330	04331	04444
Input Supply		230	230	400	230	415	400	400	400	400	400
Motor Power		2.2		5.6	2.2	4.1	4.1	7.5	5.6	7.5	11.2
Warranty		24	24	24	24	24	24	24	24	24	24	24	24	24	24
Maximum Pressure (bar)	0	10	0	10	10	10	10	10	11	11	11	10	10	10	10
Free AirDelivery (FAD)	0	8.5	0	25	22	18	18	28	20.5	25	40.7	11	11	11	11
Noise Level	0	96	97	0	0	97	0	0	0	0	0	0	0	0	0
Maximum Pressure (psi)	0	145	0	145	145	145	145	145	160	160	160	150	150	150	150
Piston Displacement (CFM)		13	18	34	32	24	24	42	31	38	61.5	16	16	16	15
Piston Displacement (litres/min)		368	510	963	906	680	680	1189	878	1076	1744	453	453	453	425
Show More

Technical

Q 1. What defines the Sealey SAC32775B air compressor?

A. It is a 270 litre, 7.5hp three-phase belt-drive compressor designed for professional workshops.

Q 2. How much air delivery does the SAC32775B provide?

A. It delivers 29.7cfm displacement and 21.5cfm maximum free air delivery, suiting very demanding air applications.

Q 3. What maximum pressure can this 270 litre compressor reach?

A. The unit operates up to 145psi, approximately 10bar, covering many industrial air tool requirements.

Q 4. How does the triple cylinder pump combined with 7.5hp motor benefit users?

A. The combination maximises output while keeping running costs lower than comparable single-phase units.

Q 5. What pump construction features support durability and cooling?

A. Heavy-duty full cast cylinders with alloy heads provide improved heat dissipation and long operating life.

Q 6. How are belt and flywheel components protected on this compressor?

A. Heavy-duty drive guards protect the belt and flywheel, which are designed to force air over the pump for cooling.

Q 7. Which related Sealey compressors are variants of the SAC32775B model?

A. Variants include SAC32055B, SAC42055B, SAC52775B and SAC55075B.

Q 8. What electrical supply does this compressor require?

A. It runs on a 415V three-phase supply with a 32A minimum rated feed.

Q 9. What documentation is supplied for compliance and maintenance?

A. It comes with full CE certification, test certificates and an operating/maintenance manual.

Q 10. How does the drain valve assist with receiver maintenance?

A. It enables simple drainage of condensed water, helping protect the 270 litre tank from corrosion.
