Product Number: SAC1203B
Variations

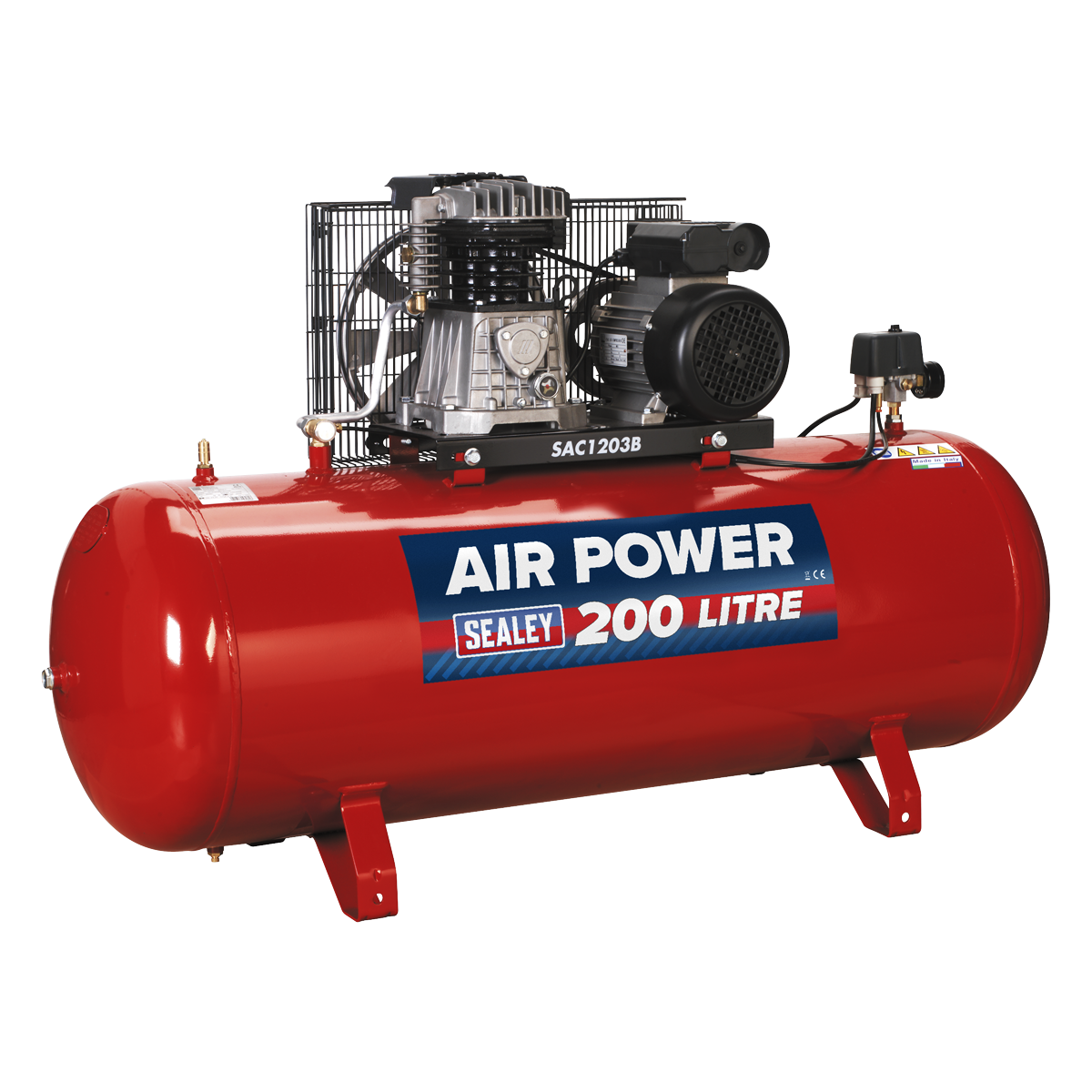

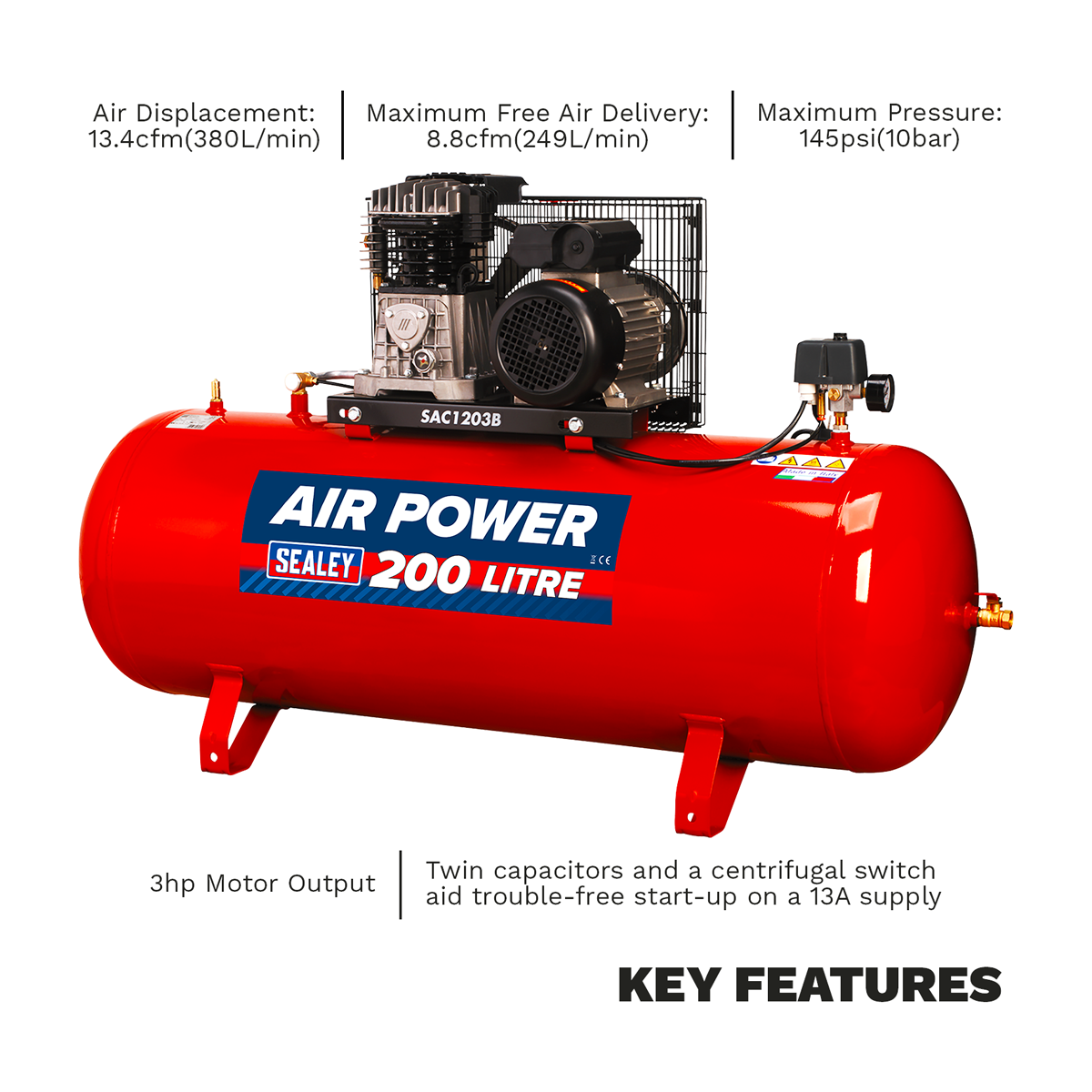

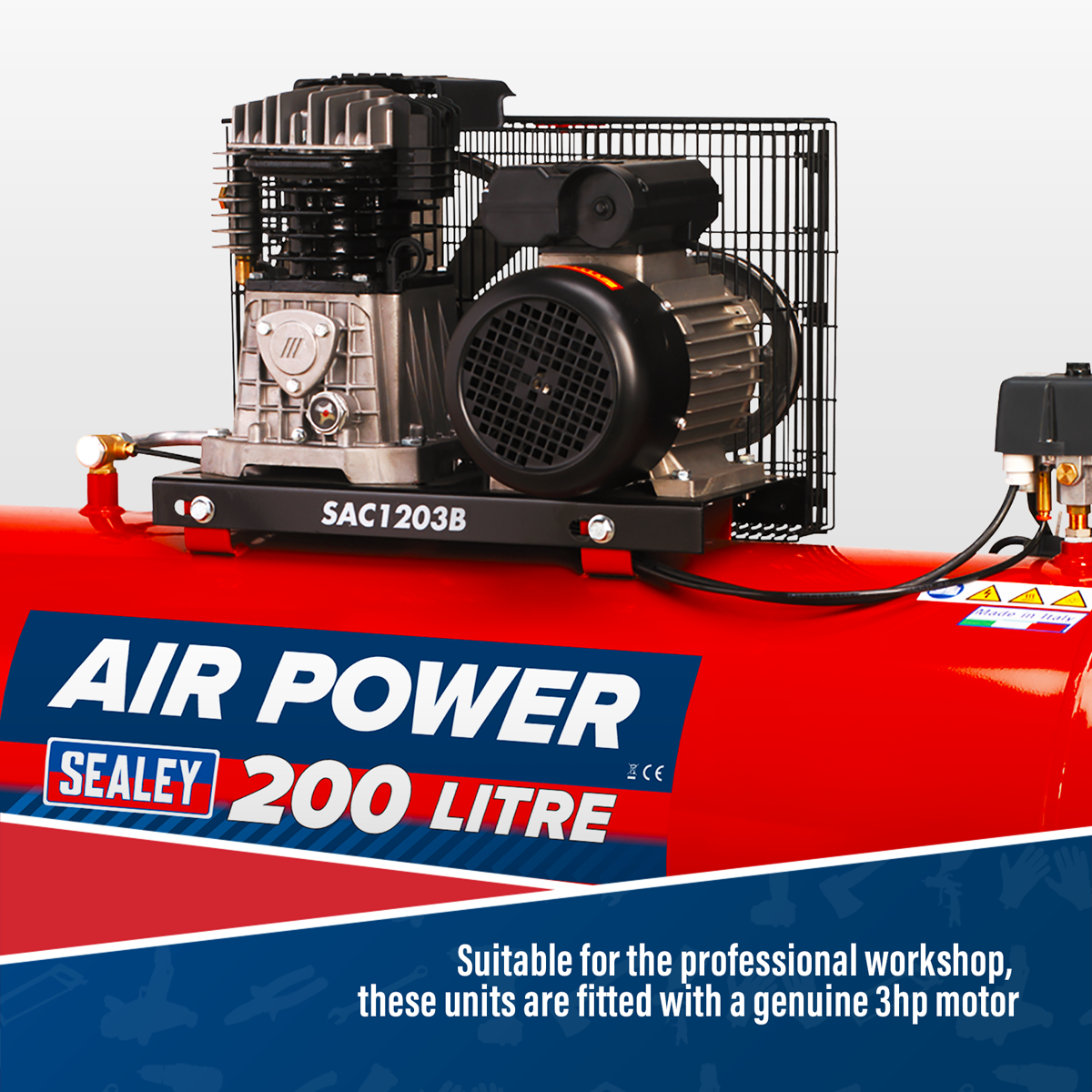

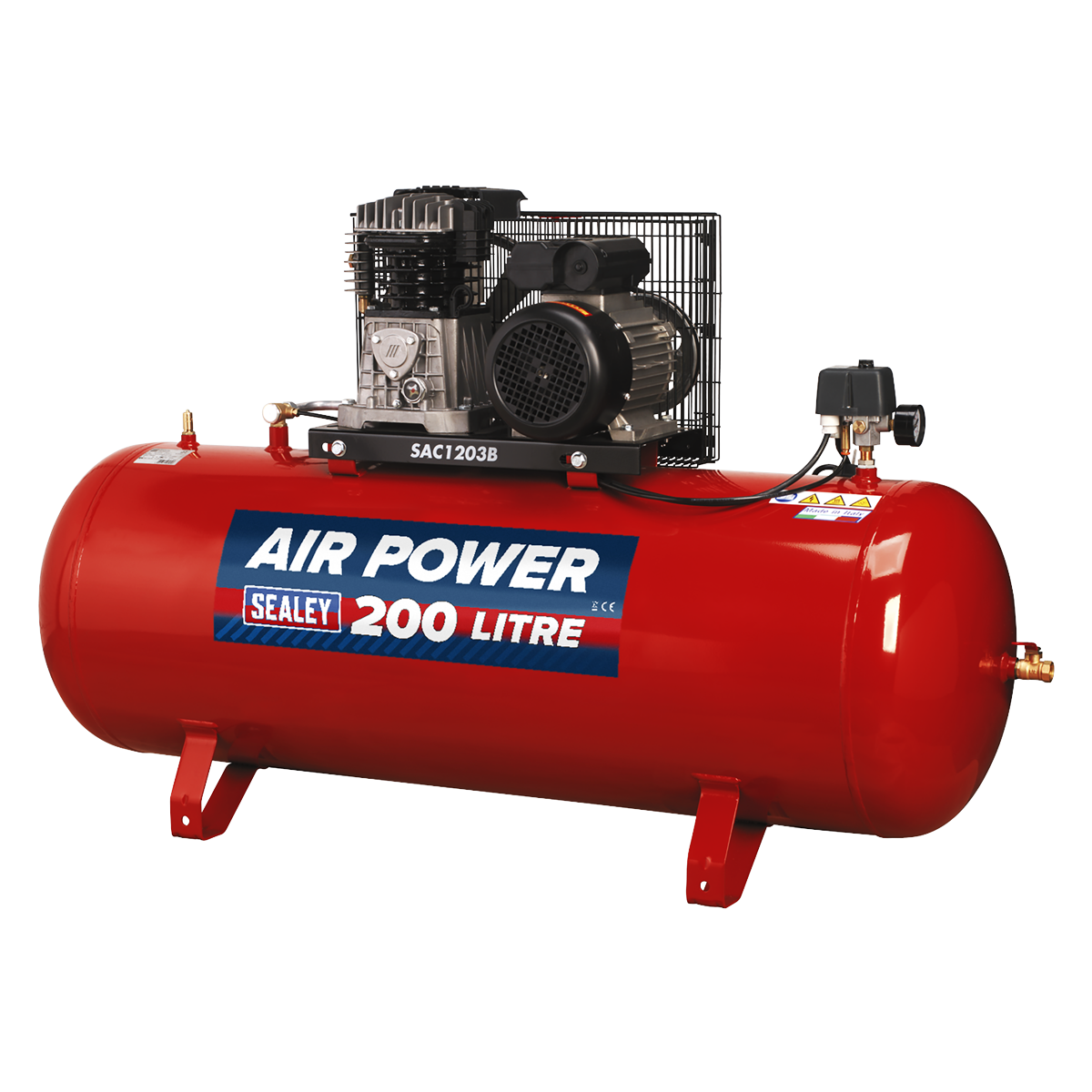

Sealey SAC1203B Air Compressor 200L Belt Drive 3hp with Cast Cylinders is a professional single-phase compressor built for workshops requiring substantial air storage. A genuine 3hp motor on 230V 13A drives a belt‑coupled pump with full cast cylinders and alloy head, delivering 13.4cfm (380L/min) displacement and 8.8cfm (249L/min) free air delivery at up to 145psi (10bar). Twin capacitors and a centrifugal switch support reliable start‑up from a good supply. The 200L receiver provides extended air availability for multiple outlets and longer tool use between cycles. Heavy‑duty drive guards protect the belt and flywheel, which is designed to force cooling air over the pump to improve heat dissipation and life. Supplied with CE certification, test certificates and an operating/maintenance manual, this compressor is ideal as a main single‑phase air source for professional garages, service centres and small industrial workshops.
Key Features:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Model No | SAC1203B |
|---|---|
| Air Displacement cfm(L/min) | 13.4(380) |
| Brand | Sealey |
| Maximum Free Air Delivery cfm(L/min) | 8.8(249) |
| Maximum Pressure | 145psi(10bar) |
| Minimum Rated Supply | 13A |
| Motor Output | 3hp |
| Nett Weight | 90kg |
| Oil Capacity | 0.45L |
| Outlet | 1/2"BSP Female Tap |
| Phase | 1ph |
| Receiver Capacity | 200L |
| Size (W x D x H) | 1440 x 440 x 865mm |
| Speed | 1630rpm |
| Supply | 230V/13A |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: UK Mainland Free
Next Day Delivery Available
Delivery Estimate: 2 to 4 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
Sealey SAC42055B Air Compressor 200L Belt Drive 5.5hp 3ph 2-Stage with Cast Cylinders
£2,099.89
£2,057.89
2% OFF
Free delivery in UK Mainland
|
Sealey SAC52775B Air Compressor 270L Belt Drive 7.5hp 3ph 2-Stage with Cast Cylinders
£2,676.38
£2,622.85
2% OFF
Free delivery in UK Mainland
|
SIP 05302 PX3/200-SRB Belt Drive Compressor, Tank Capacity - 200 Litre, Max. Air Pressure - 10 Bar
£787.63
£772.19
2% OFF
Free delivery in Channel Island
|
SIP 05308 PX4/200B Belt Drive Compressor, Tank Capacity - 200 Litre, Max. Air Pressure - 10 Bar
£902.23
£884.54
2% OFF
Free delivery in Channel Island
|
Draper 55313 STATIONARY BELT-DRIVEN AIR COMPRESSOR, 200L, 2.2KW
£626.24
£613.96
2% OFF
Free delivery in UK Mainland
|
SIP 05311 PX4-3/200B Belt-Driven Compressor, Tank Capacity - 200 Litre, Max. Air Pressure - 10 Bar
£896.53
£878.95
2% OFF
Free delivery in Channel Island
|
| Technical Specification | ||||||
|---|---|---|---|---|---|---|
| PRODUCT NUMBER | SAC42055B | SAC52775B | 05302 | 05308 | 55313 | 05311 |
| Warranty | 24 | 24 | ||||
| Capacity (L) | 200 | 270 | 200 | 200 | 200 | 200 |
| Max Pressure (psi) | 145 | 145 | 145 | 145 | 145 | 145 |
| Maximum Pressure (bar) | 10 | 10 | 10 | 10 | 10 | 10 |
| Power (kW) | 2.2 | 3 | 2.2 | 3 | ||
| Weight (kg) | 135 | 143 | 00 | 109 | ||
A. It is a 200 litre, 3hp belt-drive compressor for professional workshop applications.
A. It offers 13.4cfm displacement and 10.9cfm maximum free air delivery, supporting many workshop tools.
A. The unit operates up to 145psi, about 10bar, suitable for diverse pneumatic equipment.

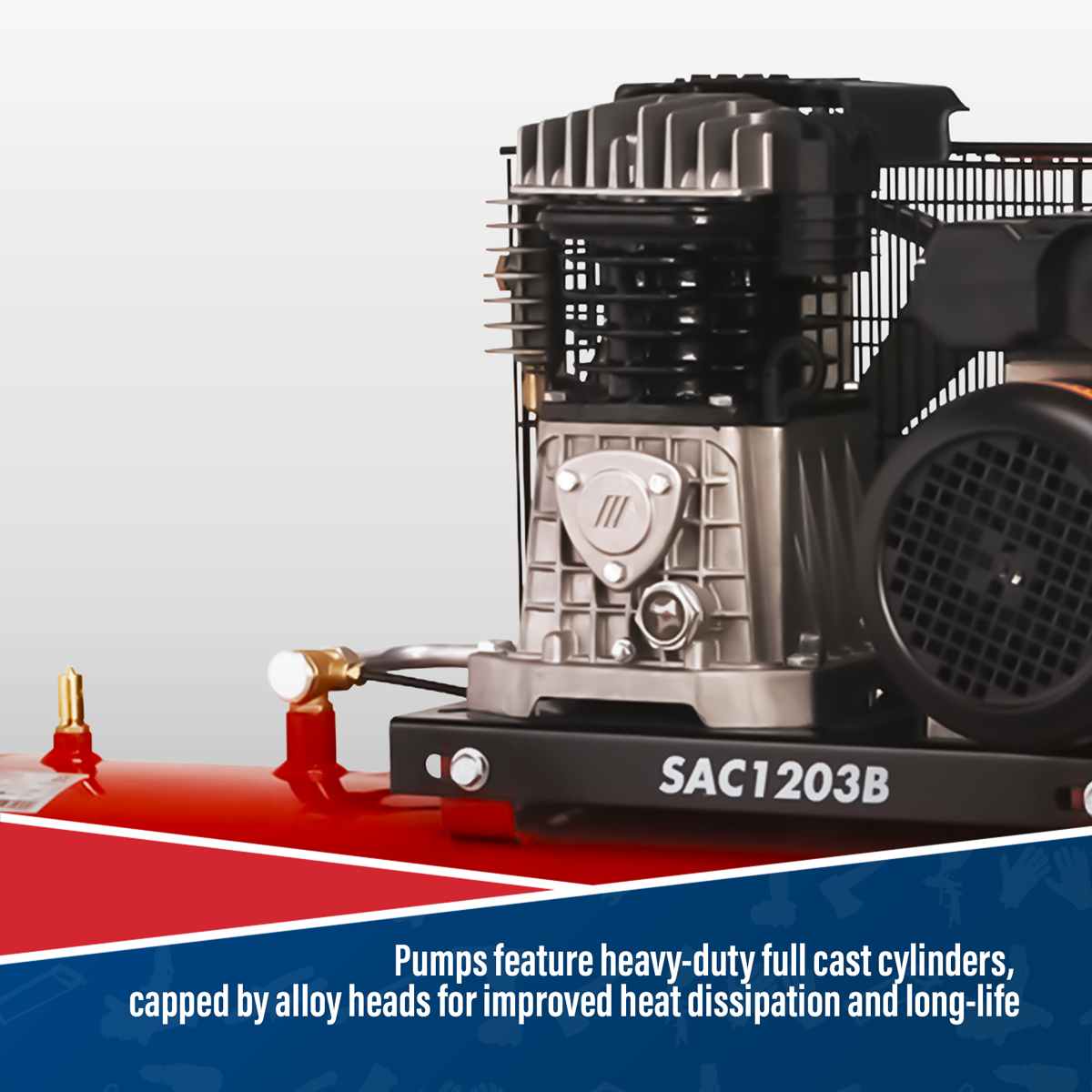

A. Full cast cylinders capped by alloy heads improve heat dissipation and strengthen pump longevity.

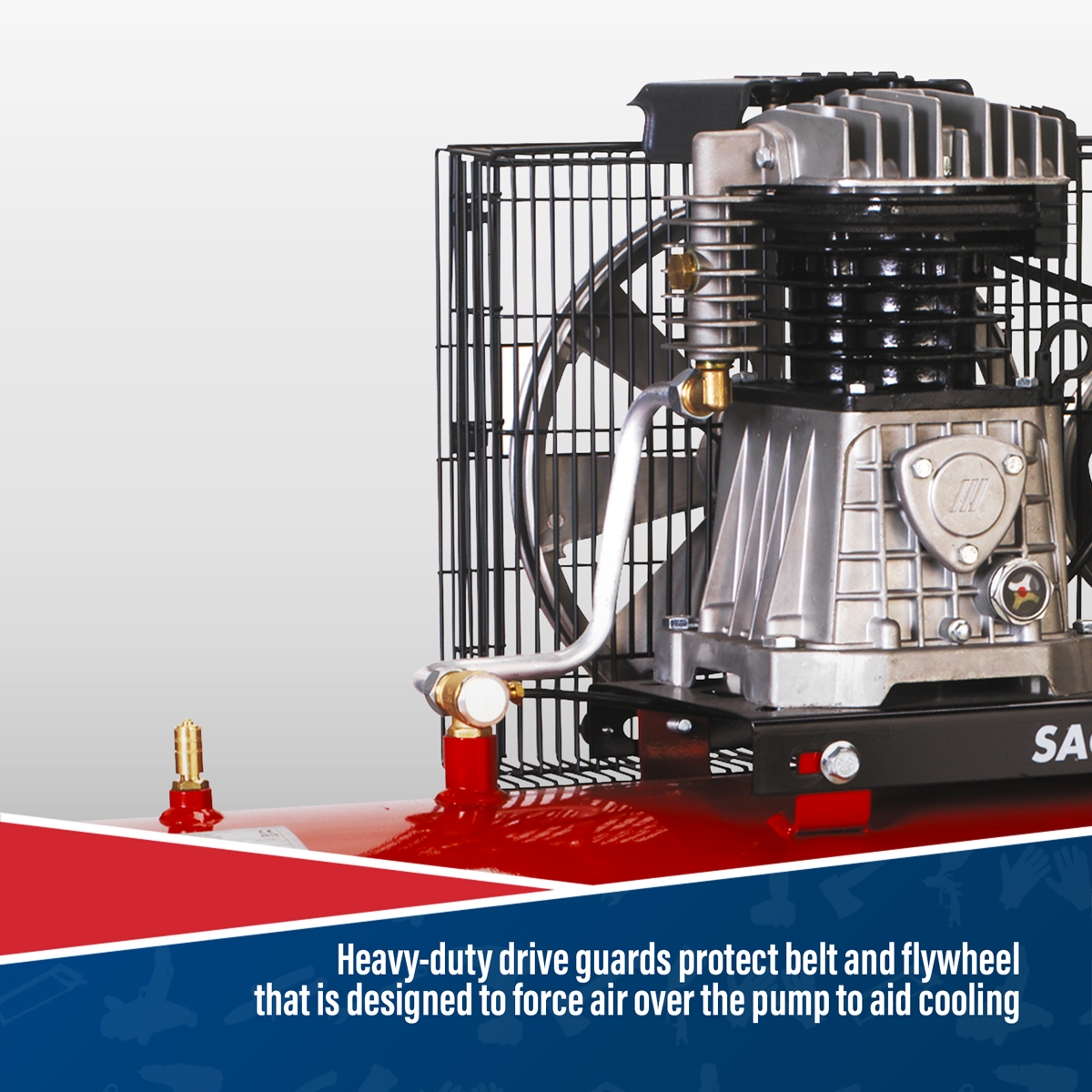

A. Heavy-duty guards protect belt and flywheel and are shaped to draw cooling air across the pump.
A. It is ideal for professional workshops needing a reliable 200 litre compressor.
A. Variants include SAC1103B, SAC1153B, SAC1276B, SAC15030B, SAC1503B, SAC1903B, SAC20030B, SAC2103B, SAC2153B, SAC2203B, SAC2276B, SAC3103B, SAC3153B and SAC3203B.
A. It runs on 230V single-phase with a 13A minimum rated supply.
A. The larger receiver stores more air, supporting multiple tools or longer duty cycles.
A. It permits the pump to run at a speed optimised for performance and durability.
A. It handles many automotive, maintenance and fabrication tasks within its air capacity.
