Product Number: SAC1153B
Variations

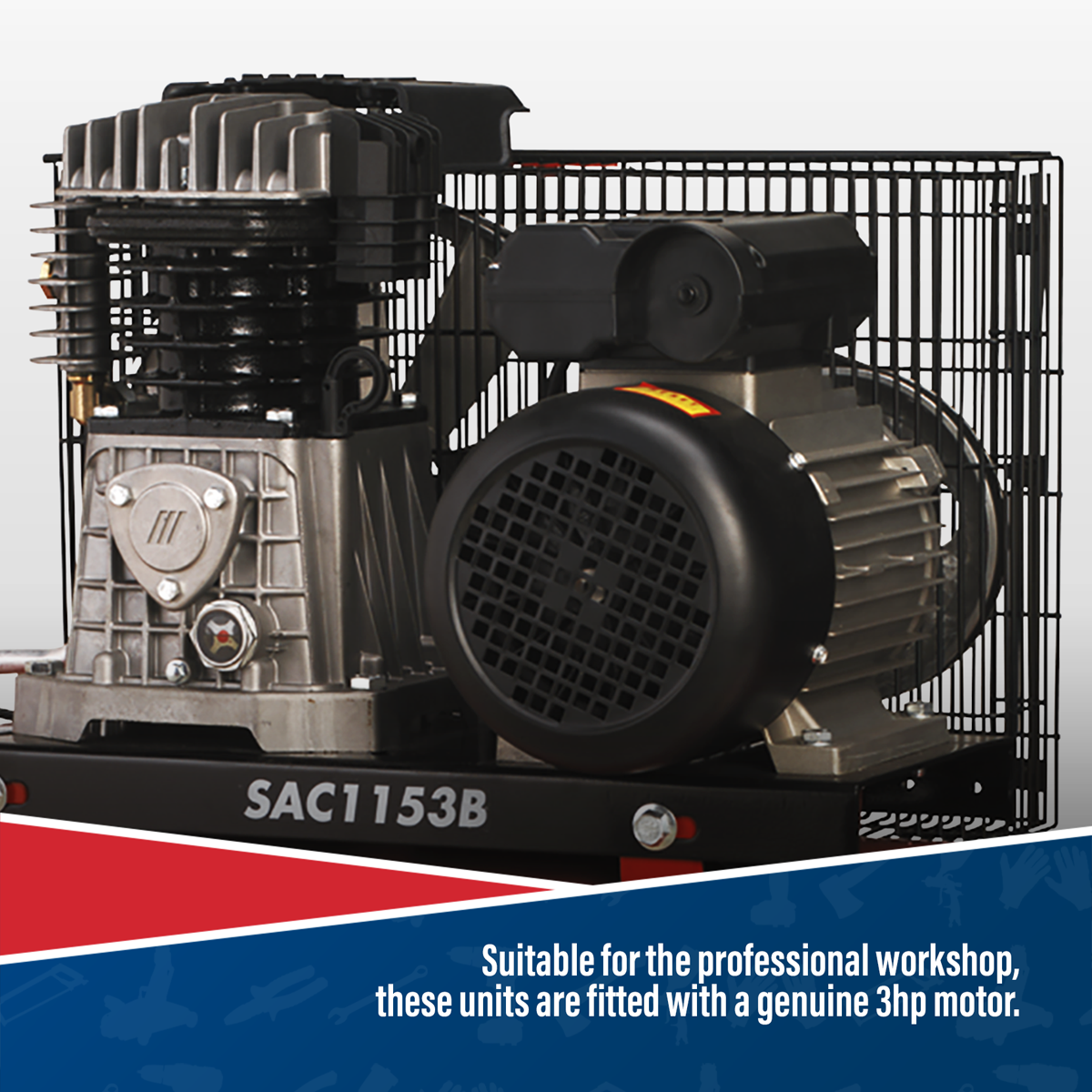

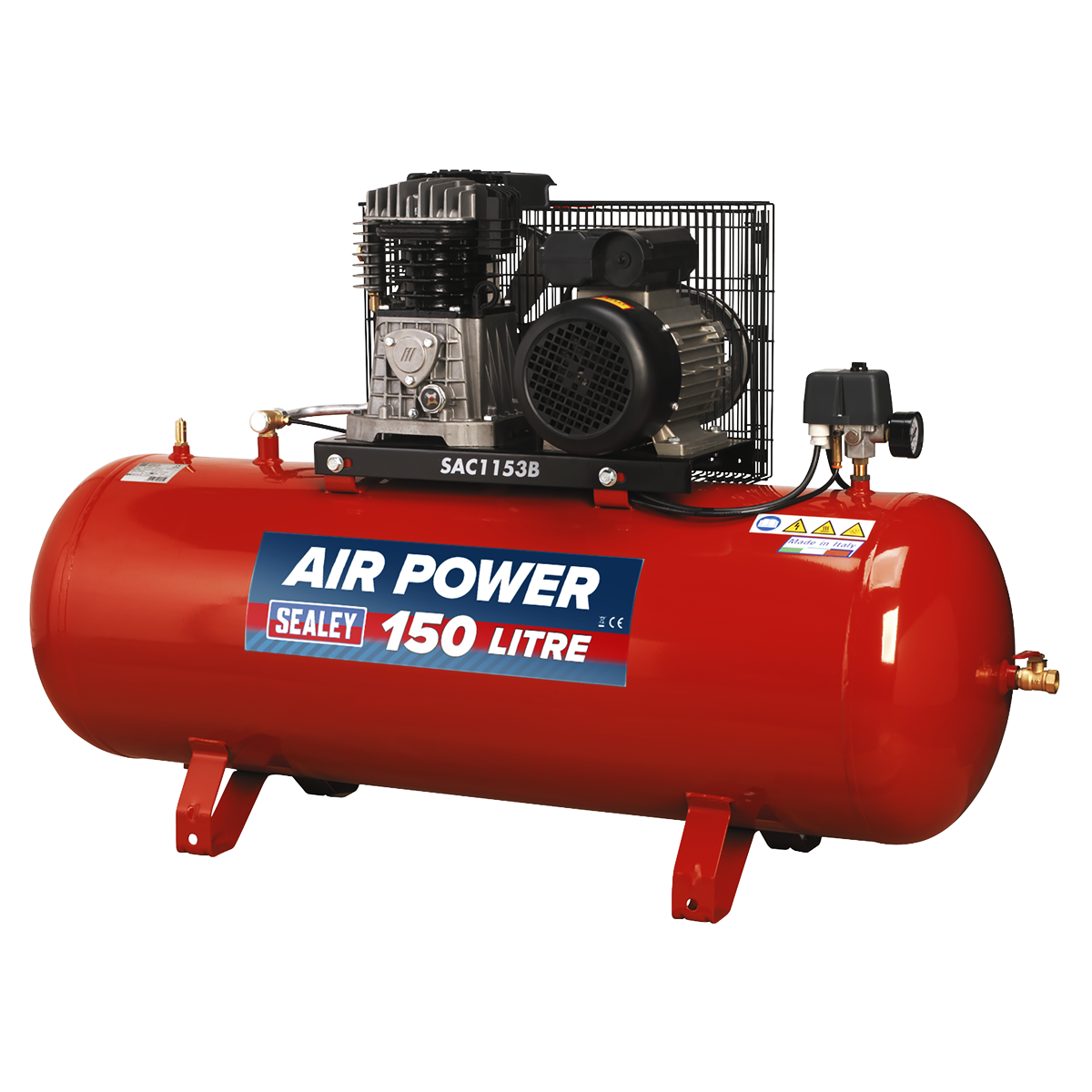

Sealey SAC1153B Air Compressor 150L Belt Drive 3hp with Cast Cylinders is a professional single-phase unit for workshops needing more storage than a 100L model. A genuine 3hp motor on 230V 13A, supported by twin capacitors and a centrifugal switch, drives a belt pump with heavy‑duty cast cylinders and alloy heads. This produces 13.4cfm (380L/min) air displacement and 8.8cfm (249L/min) free air delivery at up to 145psi (10bar). The 150L receiver offers extended run time between cycles, ideal when using air tools more frequently. Heavy‑duty drive guards protect belt and flywheel, which forces air over the pump to aid cooling and prolong service life. Supplied with full CE certification, test certificates and operating/maintenance manual, this compressor is aimed at professional garages, bodyshops and trade workshops that require a robust, cast‑cylinder 150L single‑phase air supply.
Key Features:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Model No | SAC1153B |
|---|---|
| Air Displacement cfm(L/min) | 13.4(380) |
| Brand | Sealey |
| Maximum Free Air Delivery cfm(L/min) | 8.8(249) |
| Maximum Pressure | 145psi(10bar) |
| Minimum Rated Supply | 13A |
| Motor Output | 3hp |
| Nett Weight | 78kg |
| Oil Capacity | 0.45L |
| Outlet | 1/2"BSP Female Tap |
| Phase | 1ph |
| Receiver Capacity | 150L |
| Size (W x D x H) | 1320 x 400 x 820mm |
| Speed | 1630rpm |
| Supply | 230V/13A |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: UK Mainland Free
Next Day Delivery Available
Delivery Estimate: 2 to 4 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
Sealey SAC42055B Air Compressor 200L Belt Drive 5.5hp 3ph 2-Stage with Cast Cylinders
£2,069.87
£2,029.28
2% OFF
Free delivery in UK Mainland
|
Sealey SAC52775B Air Compressor 270L Belt Drive 7.5hp 3ph 2-Stage with Cast Cylinders
£2,540.75
£2,490.93
2% OFF
Free delivery in UK Mainland
|
Draper 55305 WHEELED BELT-DRIVEN AIR COMPRESSOR, 150L, 2.2KW
£593.06
£581.43
2% OFF
Free delivery in UK Mainland
|
Draper 55304 STATIONARY BELT-DRIVEN AIR COMPRESSOR, 150L, 2.2KW
£592.03
£580.42
2% OFF
Free delivery in UK Mainland
|
||
| Technical Specification | ||||||
|---|---|---|---|---|---|---|
| PRODUCT NUMBER | SAC42055B | SAC52775B | 55305 | 55304 | 06476 | 70530 |
| Motor Power | 2200W | 2200W | ||||
| Input current | 13A | 13A | ||||
| Maximum Pressure (bar) | 10 | 10 | 0 | 0 | ||
| Free AirDelivery (FAD) | 8.44 | 8.44 | 0 | 0 | ||
| Tank Size | 150 | 150 | 0 | 0 | ||
| Maximum Pressure (psi) | 145 | 145 | 0 | 0 | ||
| Air displacement | 13.03 CFM | 13.03 CFM | ||||
| Show More | ||||||
A. It is a 150 litre, 3hp belt-drive compressor aimed at professional workshop use.
A. It offers 13.4cfm displacement and 10.9cfm maximum free air delivery, adequate for many workshop applications.
A. The unit operates up to 145psi, around 10bar, suiting numerous pneumatic tools.

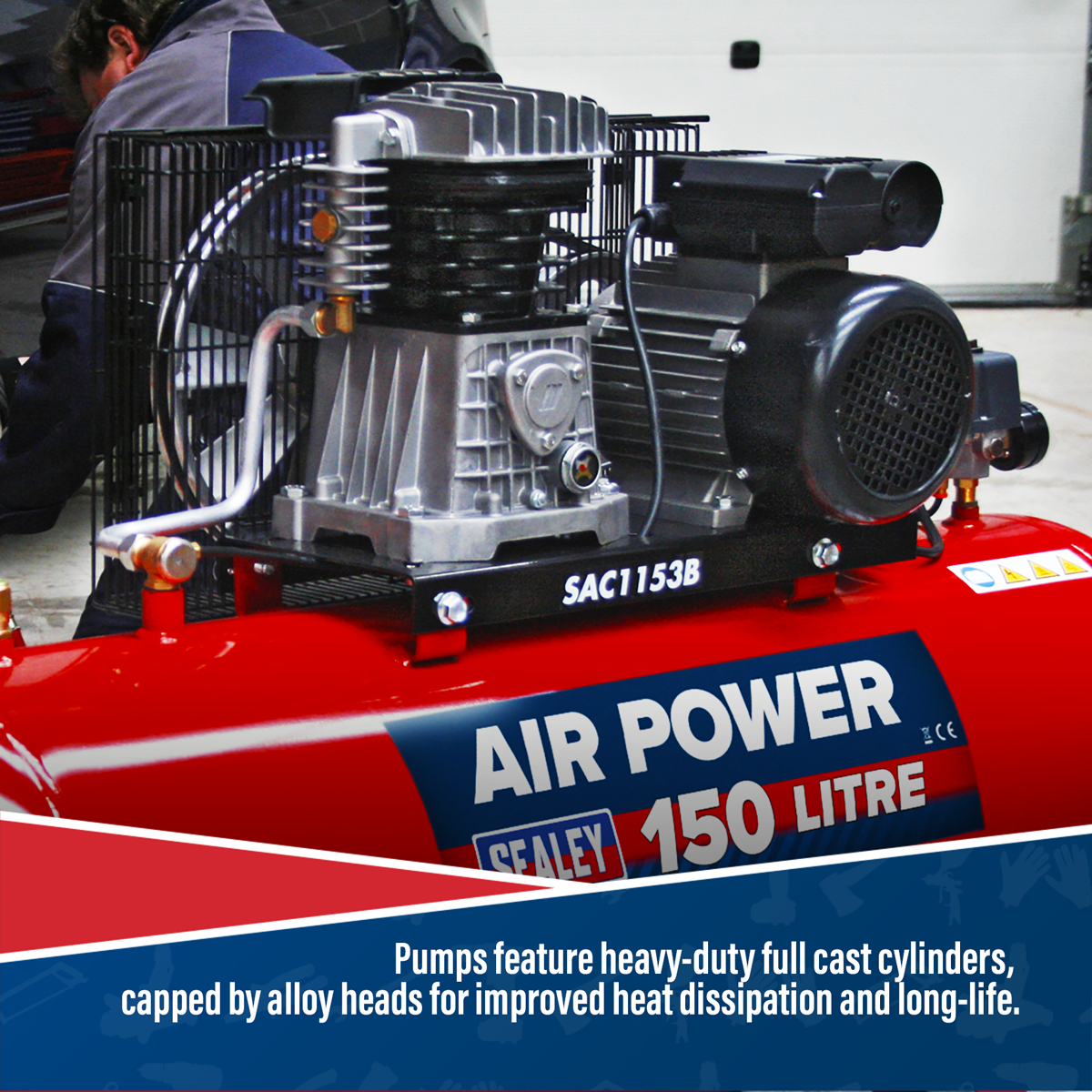

A. Heavy-duty full cast cylinders with alloy heads improve cooling and service life.

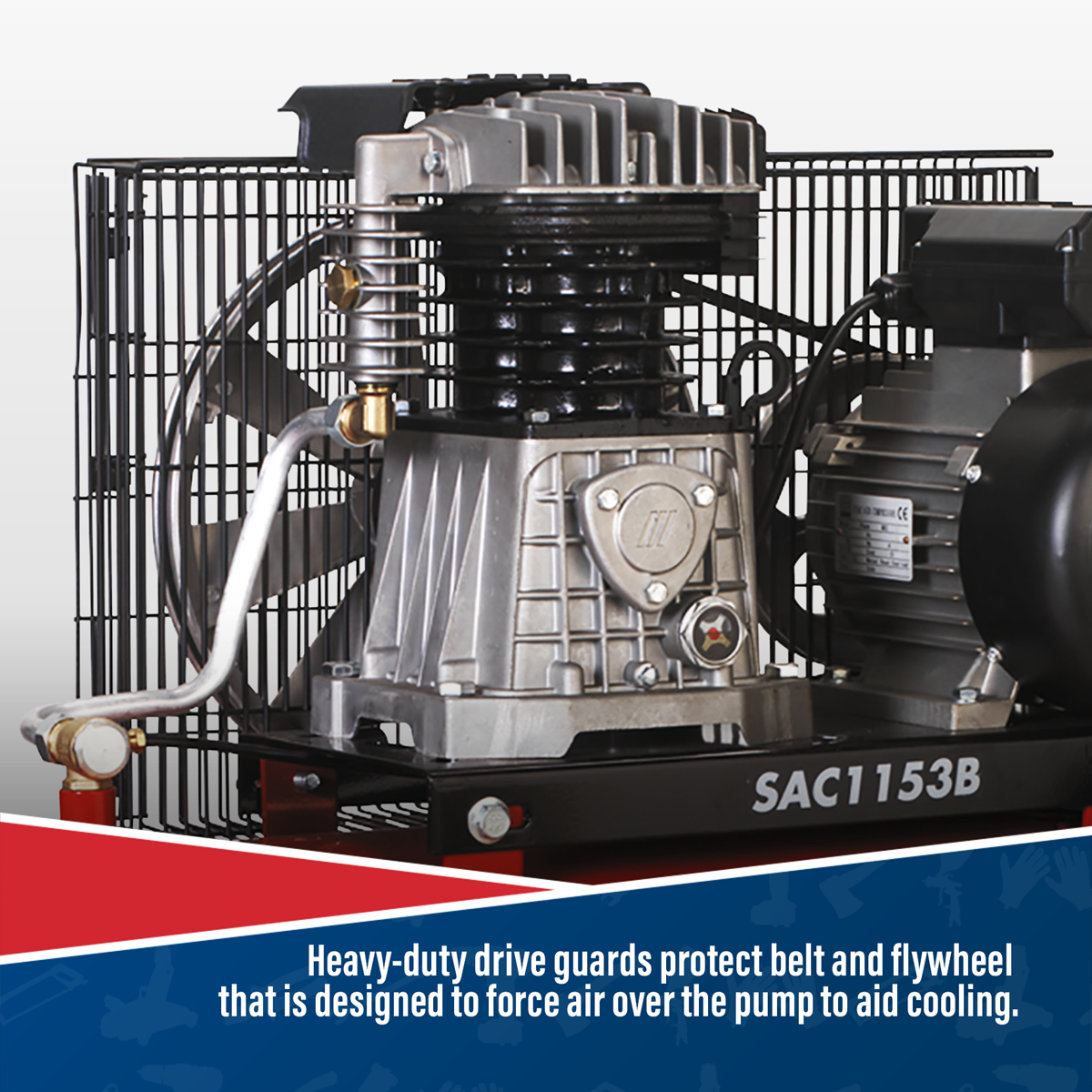

A. It shields belt and flywheel and channels air over the pump to aid cooling.
A. It is designed for professional workshops needing a robust 150 litre compressor.
A. Variants include SAC1103B, SAC1203B, SAC1276B, SAC15030B, SAC1503B, SAC1903B, SAC20030B, SAC2103B, SAC2153B, SAC2203B, SAC2276B, SAC3103B, SAC3153B and SAC3203B.
A. It operates from 230V single-phase with a 13A minimum rated connection.
A. The larger tank offers more air storage, supporting longer tool use between cycles.
A. It enables optimum pump speed relative to motor output, reducing wear and improving performance.
A. It suits automotive, maintenance and general workshop air tools within its air output range.
