Product Number: SAC1103B
Variations

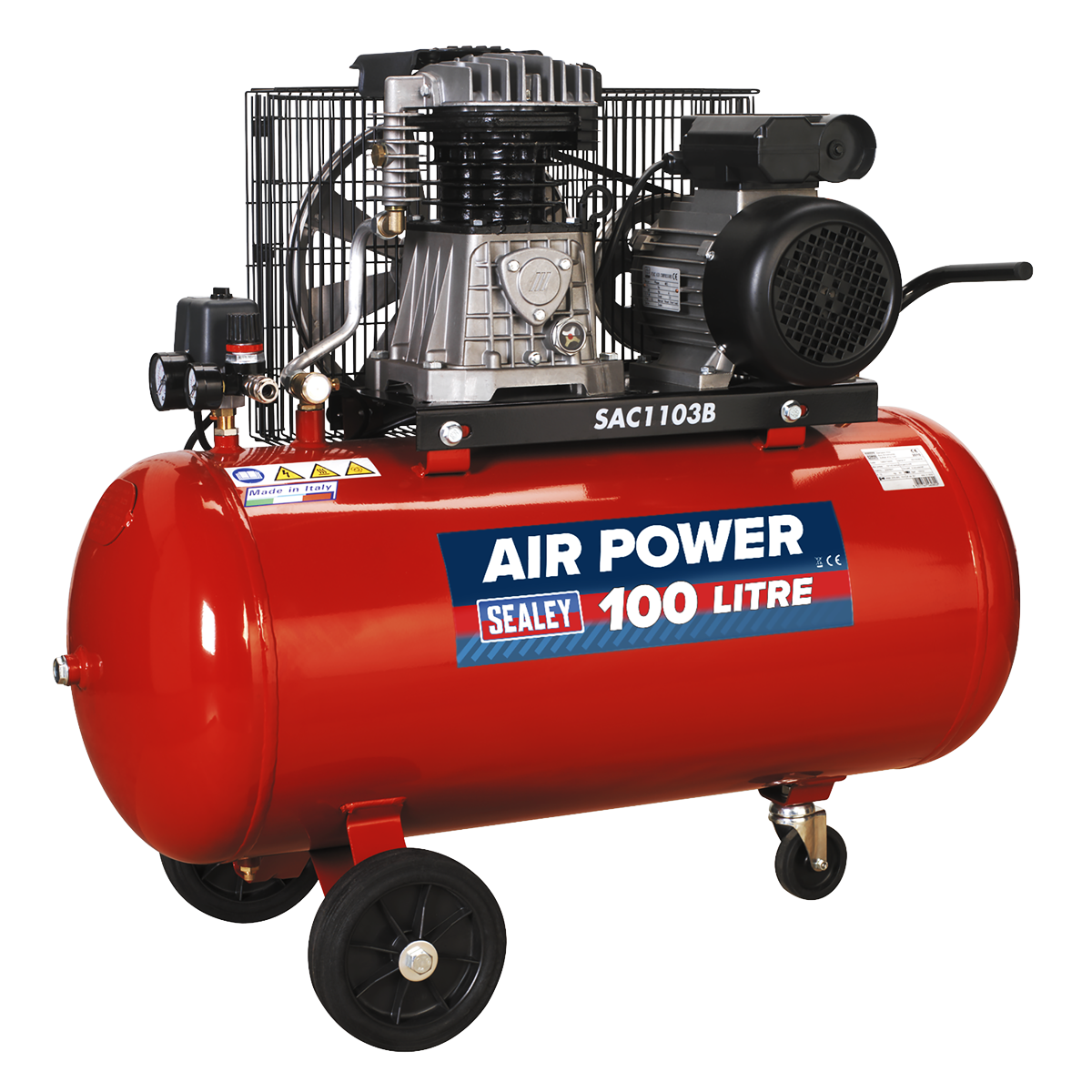

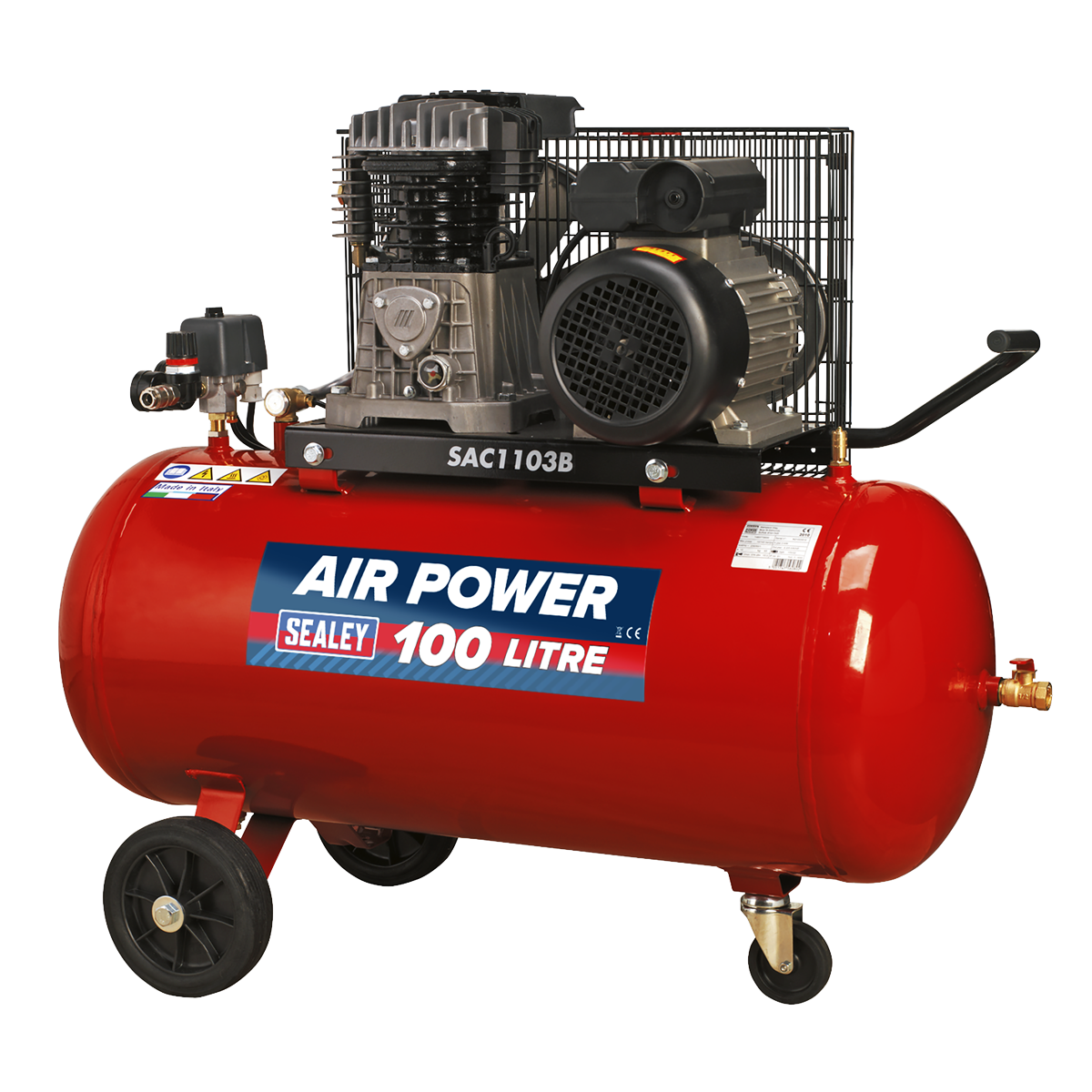

Sealey SAC1103B Air Compressor 100L Belt Drive 3hp with Cast Cylinders & Wheels is a professional single-phase compressor for workshops needing reliable everyday air. A genuine 3hp motor on 230V 13A, aided by twin capacitors and a centrifugal switch, drives a belt‑coupled pump with full cast cylinders and alloy heads. This delivers 13.4cfm (380L/min) displacement and 8.8cfm (249L/min) free air delivery at up to 145psi (10bar). The 100L receiver provides good storage capacity while remaining manoeuvrable thanks to the wheeled chassis and handle. Heavy‑duty drive guards protect the belt and flywheel, which forces cooling air over the pump for better heat dissipation and longevity. Supplied with full CE certification, test certificates and an operating/maintenance manual, this compressor is suited to garages and workshops operating air tools, inflators and blow guns on a regular basis, offering a strong balance between output, footprint and mobility.
Key Features:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Model No | SAC1103B |
|---|---|
| Air Displacement cfm(L/min) | 13.4(380) |
| Brand | Sealey |
| Maximum Free Air Delivery cfm(L/min) | 8.8(249) |
| Maximum Pressure | 145psi(10bar) |
| Minimum Rated Supply | 13A |
| Motor Output | 3hp |
| Nett Weight | 59kg |
| Oil Capacity | 0.45L |
| Outlet | Quick Release Coupling |
| Phase | 1ph |
| Receiver Capacity | 100L |
| Size (W x D x H) | 1010 x 470 x 860mm |
| Speed | 1630rpm |
| Supply | 230V/13A |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Will a Belt-Drive Compressor Run on 13A? What to Check First You have outgrown a small direct-drive compressor, or your belt-drive machine trips, fills slowly or needs a service. The essentials: check the supply...
Standard Delivery: UK Mainland Free
Next Day Delivery Available
Delivery Estimate: 2 to 4 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
Draper 31254 BELT-DRIVEN AIR COMPRESSOR, 100L, 2.2KW
£453.89
£444.99
2% OFF
Free delivery in UK Mainland
|
NuAir B2800C-PRO/100 FT3 - Stationary Piston Compressor, 2.2 kW, 100 Litre, 10 Bar, 12.5 CFM
£609.38
£597.43
2% OFF
Free delivery in UK Mainland
|
|||
| Technical Specification | |||||
|---|---|---|---|---|---|
| PRODUCT NUMBER | 31254 | 06458 | 04396 | 2092270 | S-28FN541FPS137 |
| Warranty | 12 | 12 | |||
| Capacity (L) | 100 | 100 | 100 | 100 | 100 |
| Max Pressure (psi) | 116 | 145 | 150 | 10 | |
| Maximum Pressure (bar) | 8 | 10 | 10 | 10 | |
| Power (kW) | 2.2 | 2.2 | 2.2 | 2.2 | |
| Weight (kg) | 75 | 00 | 70 | 840 | |
A. It is a 100 litre, 3hp belt-drive compressor for professional workshop use.
A. It offers 13.4cfm displacement and 10.9cfm maximum free air delivery, supporting many workshop tools.
A. The unit operates up to 145psi, about 10bar, suitable for general pneumatic applications.

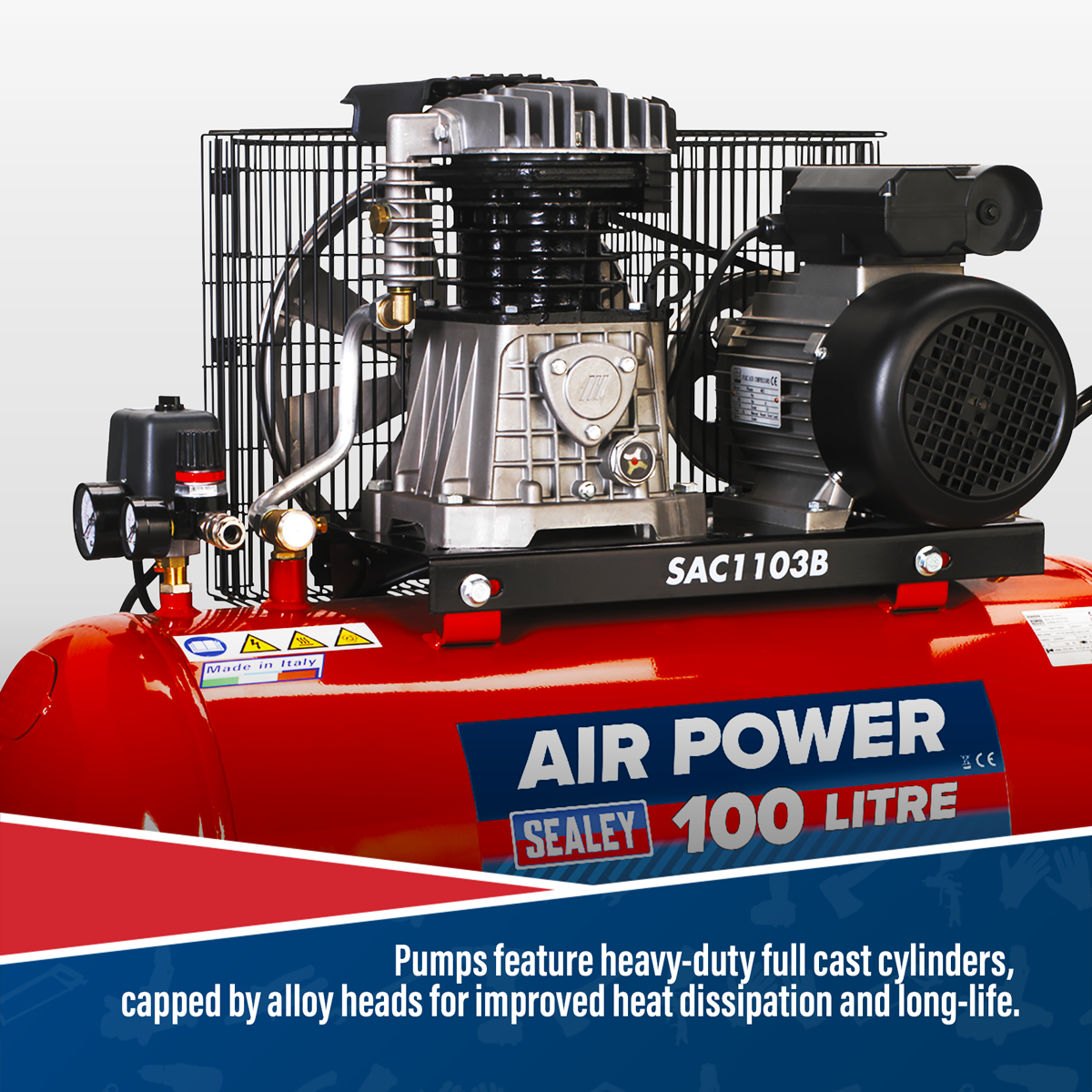

A. Full cast cylinders with alloy heads enhance heat dissipation and long-term reliability.

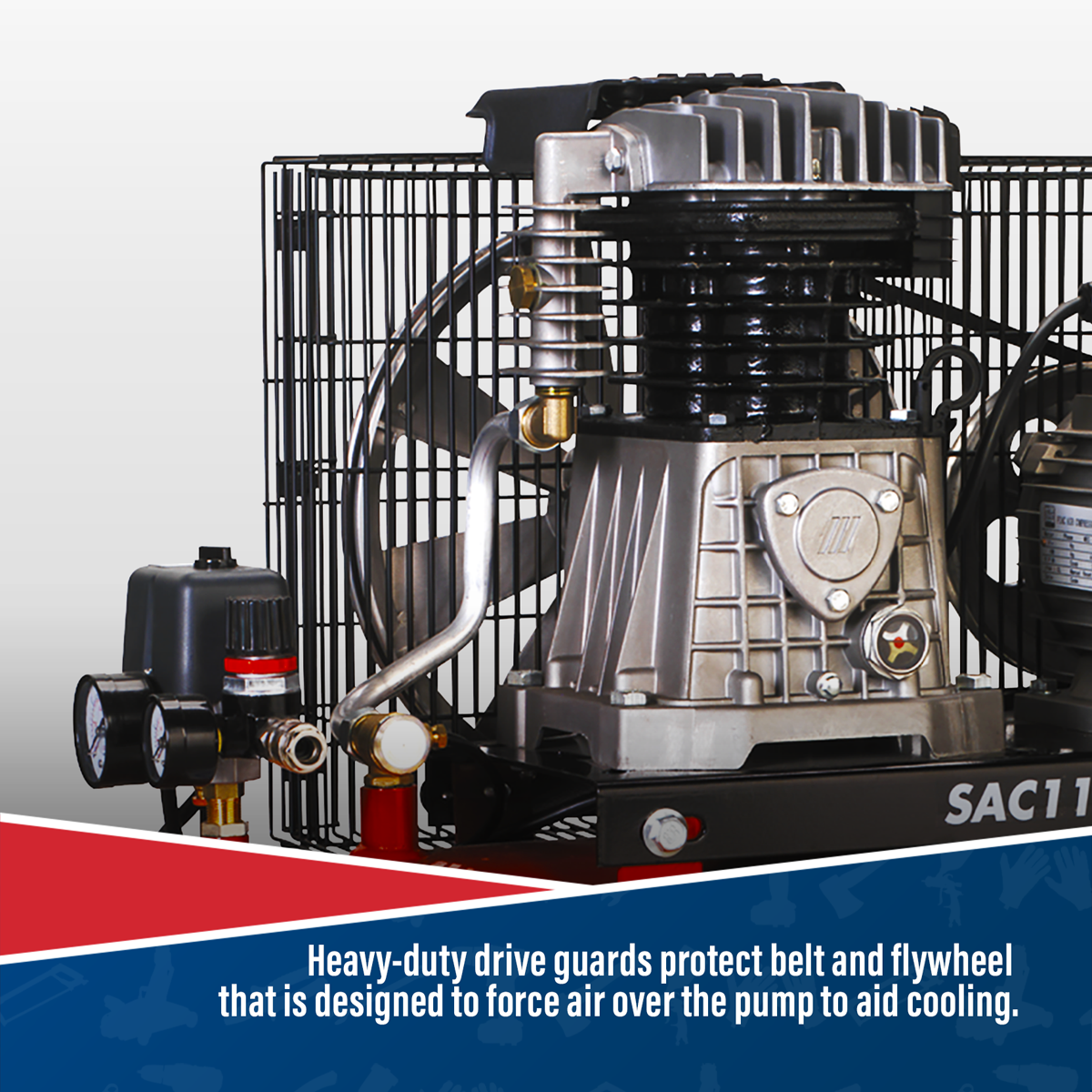

A. Heavy-duty guards protect belt and flywheel and help direct cooling airflow over the pump.

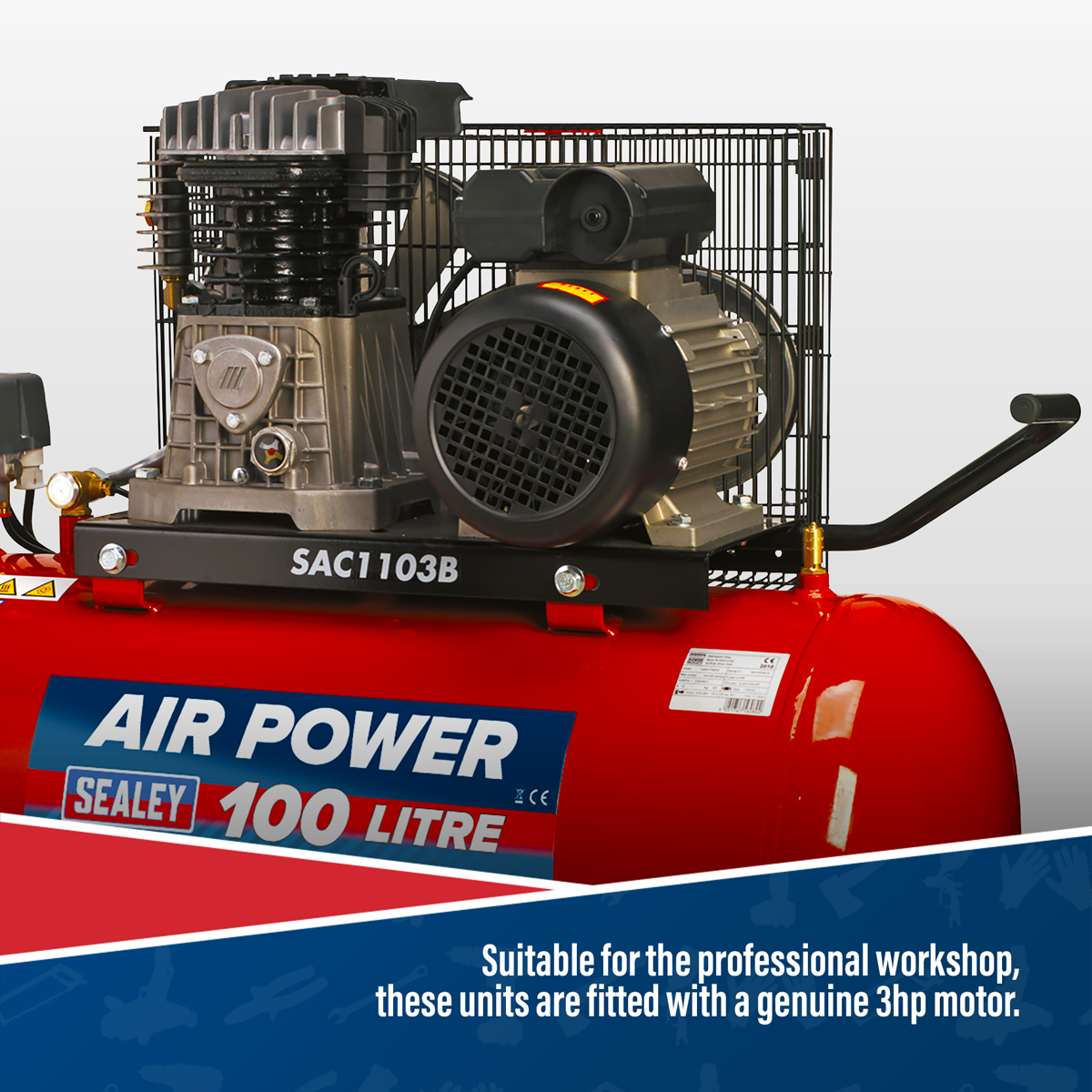

A. It suits professional workshops needing a reliable 100 litre air compressor.
A. Variants include SAC1153B, SAC1203B, SAC1276B, SAC15030B, SAC1503B, SAC1903B, SAC20030B, SAC2103B, SAC2153B, SAC2203B, SAC2276B, SAC3103B, SAC3153B and SAC3203B.
A. It runs on 230V single-phase with a 13A minimum rated supply.
A. It balances good air storage with manageable size and power requirements.
A. It allows pump speed to be matched to performance and longevity needs.
A. It suits impact wrenches, ratchets, blow guns and general workshop pneumatic tools.
