Product Number: 2092270

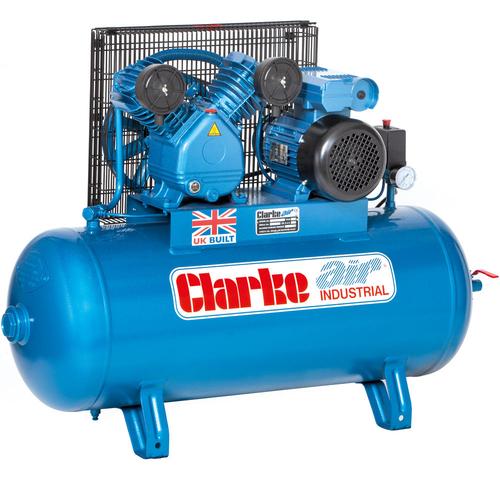

Clarke XEV16/100 (O/L) 14cfm 100 Litre 3HP Industrial Air Compressor (230V) is a British-built belt-driven compressor designed for performance and reliability. A 3hp (2200W) single-phase motor on 230V drives a cast iron V-twin cylinder pump delivering 14cfm air displacement at up to 145psi (10bar). Positive splash-feed piston lubrication and an aerodynamic bladed flywheel with twin cast iron cylinders ensure efficient, cool running and smooth operation. The 100 litre CE-certified horizontal receiver provides useful storage for powering a wide range of automotive and industrial air tools. Overload protection and a fully automatic pressure switch control the working pressure, while safety valve, pressure gauge, air outlet valve and drain tap are included as standard. Recommended for mounting on heavy-duty anti-vibration floor pads, this oil-lubricated compressor is ideal for professional garages, farms and small factories and comes with a 12-month warranty.
| Motor (HP) | 3.0 |
|---|---|
| Watts | 2200W |
| Air Tank Volume | 100Litres |
| Air Displacement | 14cfm |
| Max Working Pressure | 145/10psi/bar |
| Oil Lubricated/Oil Free | Oil |
| Input Voltage | 230V |
| Wheel Mounted | No |
| Orientation (Horizontal/Vertical) | Horizontal |
| Volts | 230V |
| Packaged Weight | 70kg |
| Warranty | 12 Months |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: UK Mainland Free
Delivery Estimate: 5 to 7 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
Draper 31254 BELT-DRIVEN AIR COMPRESSOR, 100L, 2.2KW
£453.89
£444.99
2% OFF
Free delivery in UK Mainland
|
Clarke XEV16/150 (WIS) 14cfm 150 Litre 3HP Industrial Air Compressor (400V)
£949.93
£931.30
2% OFF
Free delivery in UK Mainland
|
Clarke XE15/150 (WIS) 14cfm 150 Litre 3HP Industrial Air Compressor (400V)
£942.80
£924.31
2% OFF
Free delivery in UK Mainland
|
Draper 55305 WHEELED BELT-DRIVEN AIR COMPRESSOR, 150L, 2.2KW
£593.06
£581.43
2% OFF
Free delivery in UK Mainland
|
||
| Technical Specification | ||||||
|---|---|---|---|---|---|---|
| PRODUCT NUMBER | 31254 | 06458 | 04396 | 2092276 | 2092252 | 55305 |
| Warranty | 12 | 12 | 12 | |||
| Capacity (L) | 100 | 100 | 100 | 150 | 150 | 150 |
| Max Pressure (psi) | 116 | 145 | 150 | 10 | 10 | 145 |
| Maximum Pressure (bar) | 8 | 10 | 10 | 10 | ||
| Power (kW) | 2.2 | 2.2 | 2.2 | 2.2 | ||
| Weight (kg) | 75 | 00 | 99 | 88 | 102 | |
A. It is a 100 litre, 3hp industrial belt-drive compressor with 14cfm displacement.
A. It delivers 14cfm air displacement, suited to professional automotive and industrial applications.
A. The maximum pressure is about 145psi, 10bar, controlled by a fully automatic pressure switch.
A. A cast iron V-twin cylinder compressor pump with aerodynamic bladed flywheel and splash-feed lubrication is used.
A. It uses a 3hp, 230V single-phase motor continuously rated with overload protection.
A. It targets professional automotive and industrial users requiring reliable compressed air in smaller spaces.
A. Variant mapping lists 2092272 and 2092274 as related XEV16 industrial compressors.
A. It features a 100 litre CE certified air receiver, providing reasonable air storage.
A. Heavy-duty anti-vibration mountings help reduce vibration transmission and improve stability during operation.
A. It measures roughly 1130mm by 360mm by 830mm, with weight around 69kg.
A. Belt drive enables slower, optimised pump speed, supporting cooler running and extended service life.
