Product Number: SA630
Variations

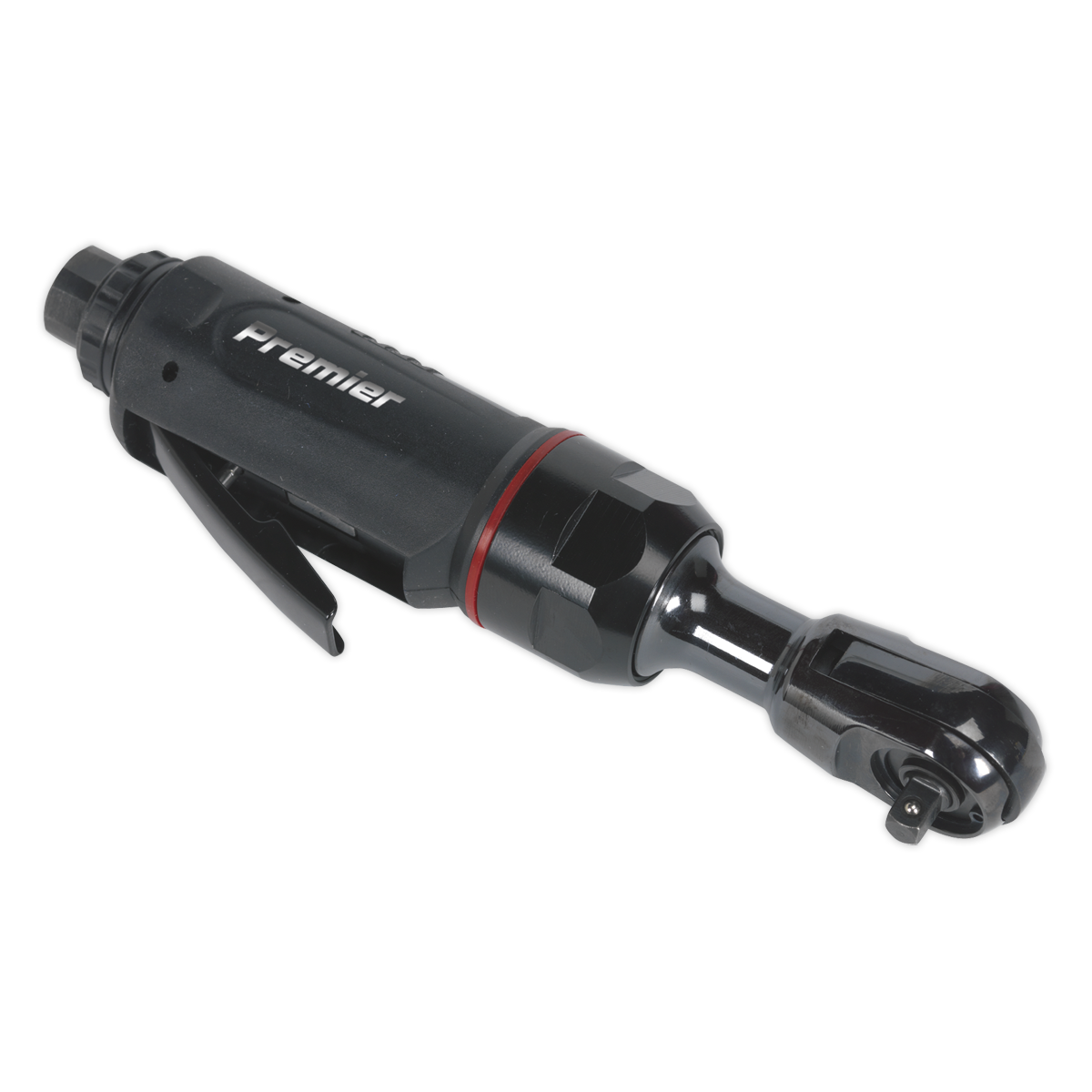

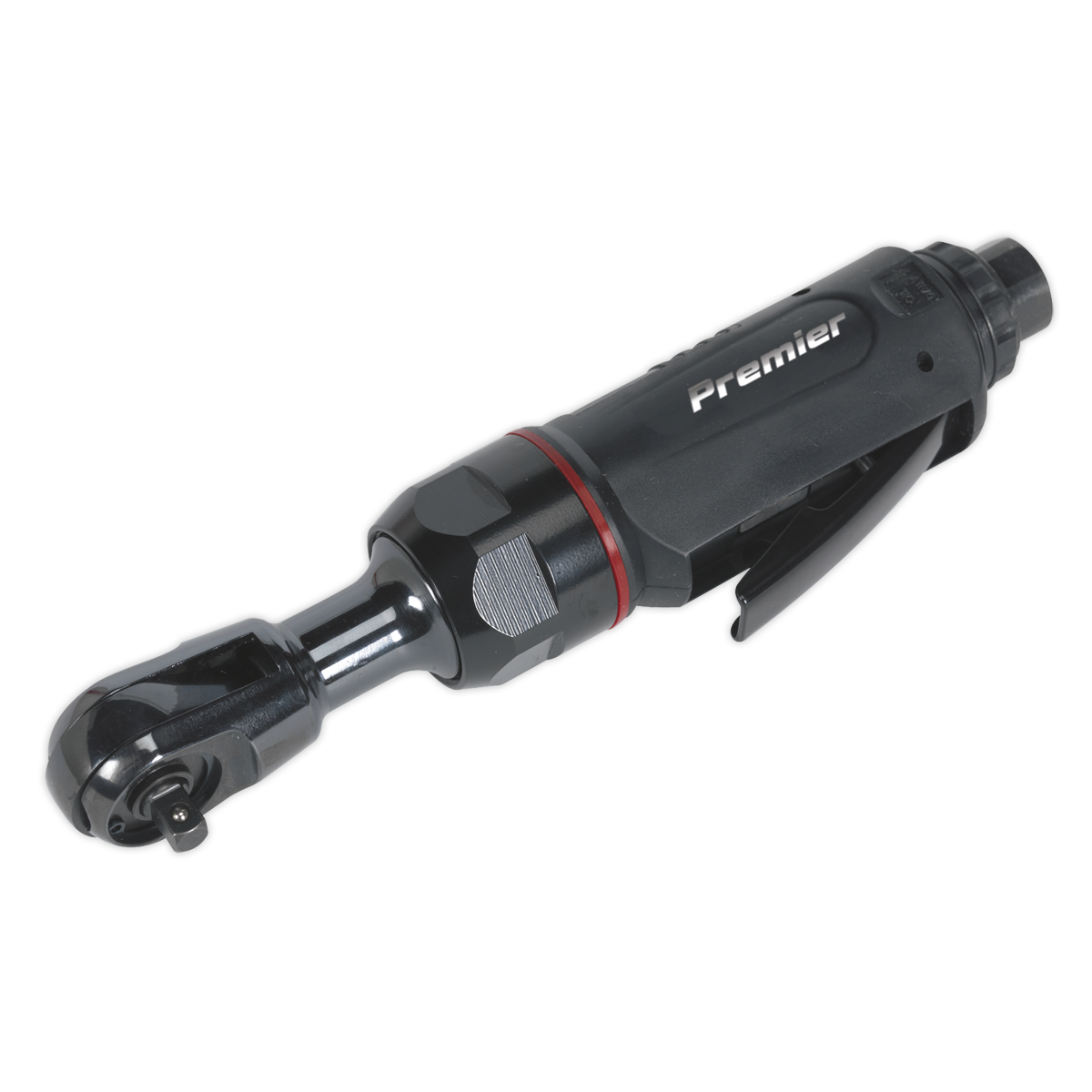

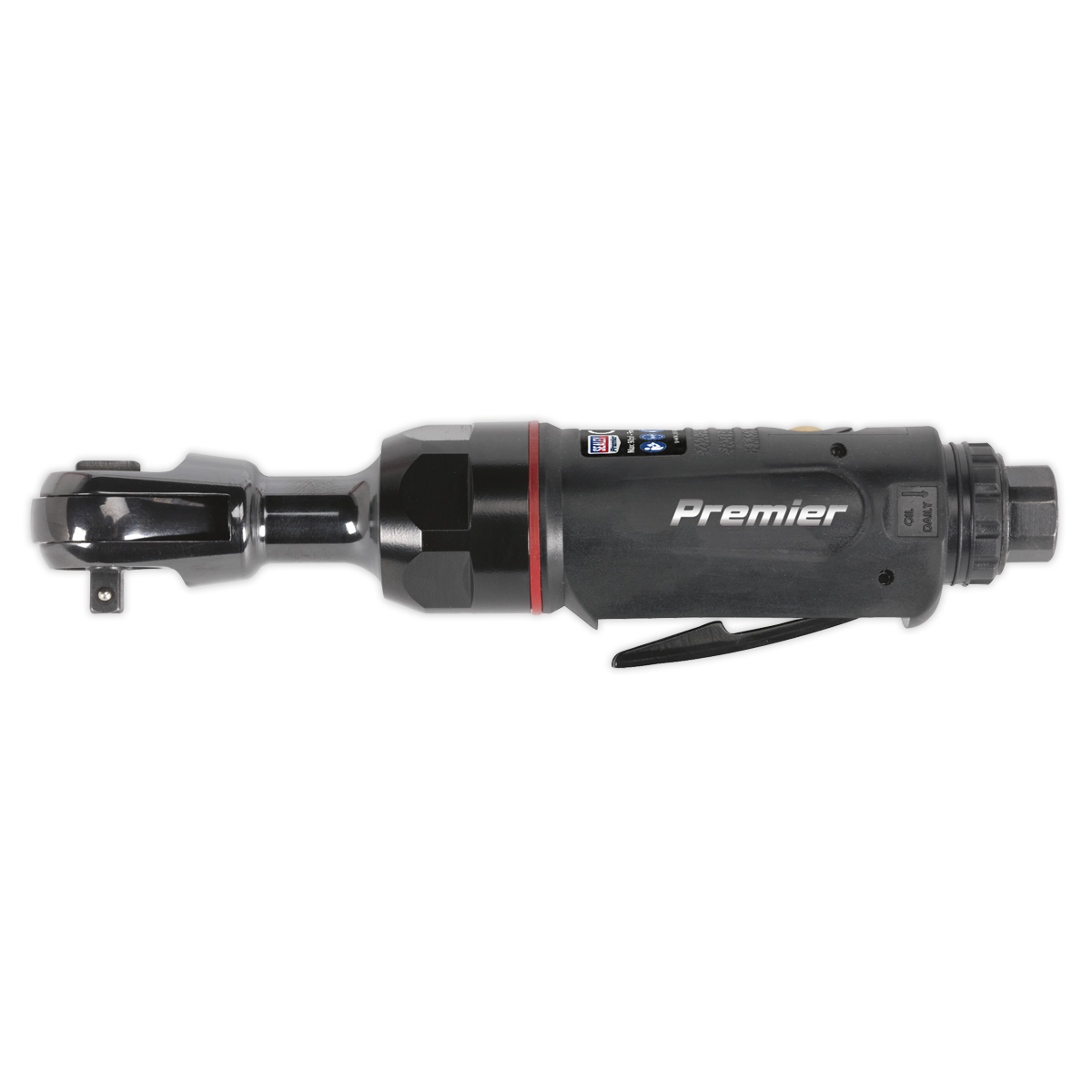

Working around engines and in confined spaces demands a ratchet wrench that combines compactness with genuine power bulky tools simply cannot reach where the work is. The Sealey SA630 is a mini air ratchet wrench with a 1/4" square drive, built on a lightweight aluminium alloy housing with a composite cover moulded around it to reduce the chill effect on the operator's hands and improve control. The air motor runs on quality bearings for smooth, powerful operation, delivering a maximum torque of 25lb.ft (34Nm) at a free speed of 250rpm on 90psi operating pressure, consuming just 3cfm. At 197mm in length, its compact design is ideal for working around engines where space is at a premium. The 360° adjustable exhaust outlet keeps airflow directed away from the operator. A twist-reverse action and trigger-operated power control provide precise handling, while hardened gear and yoke assembly make this wrench suitable for professional workshop use. Connects via a 1/4" BSP inlet. Noise levels are 86dB(A) power and 83dB(A) pressure, with vibration rated at 0.448m/s² (uncertainty 0.224m/s²). Backed by a 3-year guarantee.
Key Features:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Model No | SA630 |
|---|---|
| Air Consumption | 3cfm |
| Brand | Premier |
| Drive | 1/4"Sq |
| Free Speed | 250rpm |
| Inlet Size | 1/4"BSP |
| Length | 197mm |
| Maximum Torque | 25lb.ft(34Nm) |
| Nett Weight | 0.6kg |
| Noise Power/Pressure | 86/83dB(A) |
| Operating Pressure | 90psi |
| Vibration/Uncertainty | 0.448/0.224m/s² |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: £5.99
Next Day Delivery Available
Delivery Estimate: 2 to 4 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
|||||
| Technical Specification | |||||
|---|---|---|---|---|---|
| PRODUCT NUMBER | SA608 | SA21/S | SA607 | GSA21 | APM100 |
| Type | Air Ratchet Wrenche | Air Ratchet Wrenche | Air Ratchet Wrenche | Air Ratchet Wrenche | Air Ratchet Wrenche |
| Drive Size (Inch) | 1/2 | 1/2 | 3/8 | 1/2 | 1/4 |
| Free Speed | 200rpm | 150rpm | 200rpm | 150rpm | |
| Length (mm) | 265 | 265 | 265 | 280 | |
| Torque Range (Nm) | 68 | 61 | 68 | 61 | |
| Weight (kg) | 1.3 | 1.2 | 1.3 | 1.2 | |
A. The SA630 has a 1/4" square drive.
A. The SA630 delivers a maximum torque of 25lb.ft (34Nm).
A. The SA630 operates at 90psi and consumes 3cfm of air.
A. The SA630 has a free speed of 250rpm.
A. The SA630 uses a 1/4" BSP inlet.

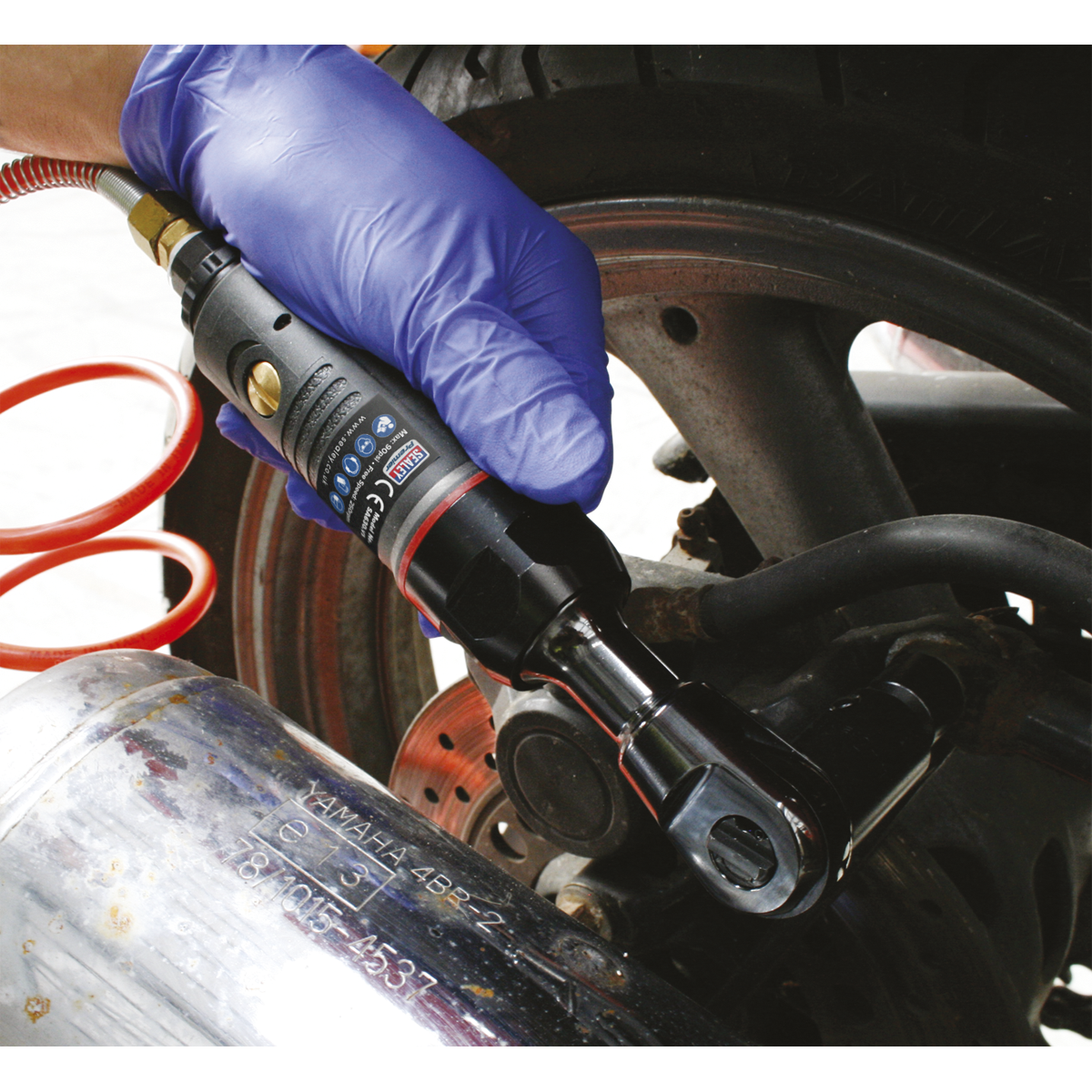

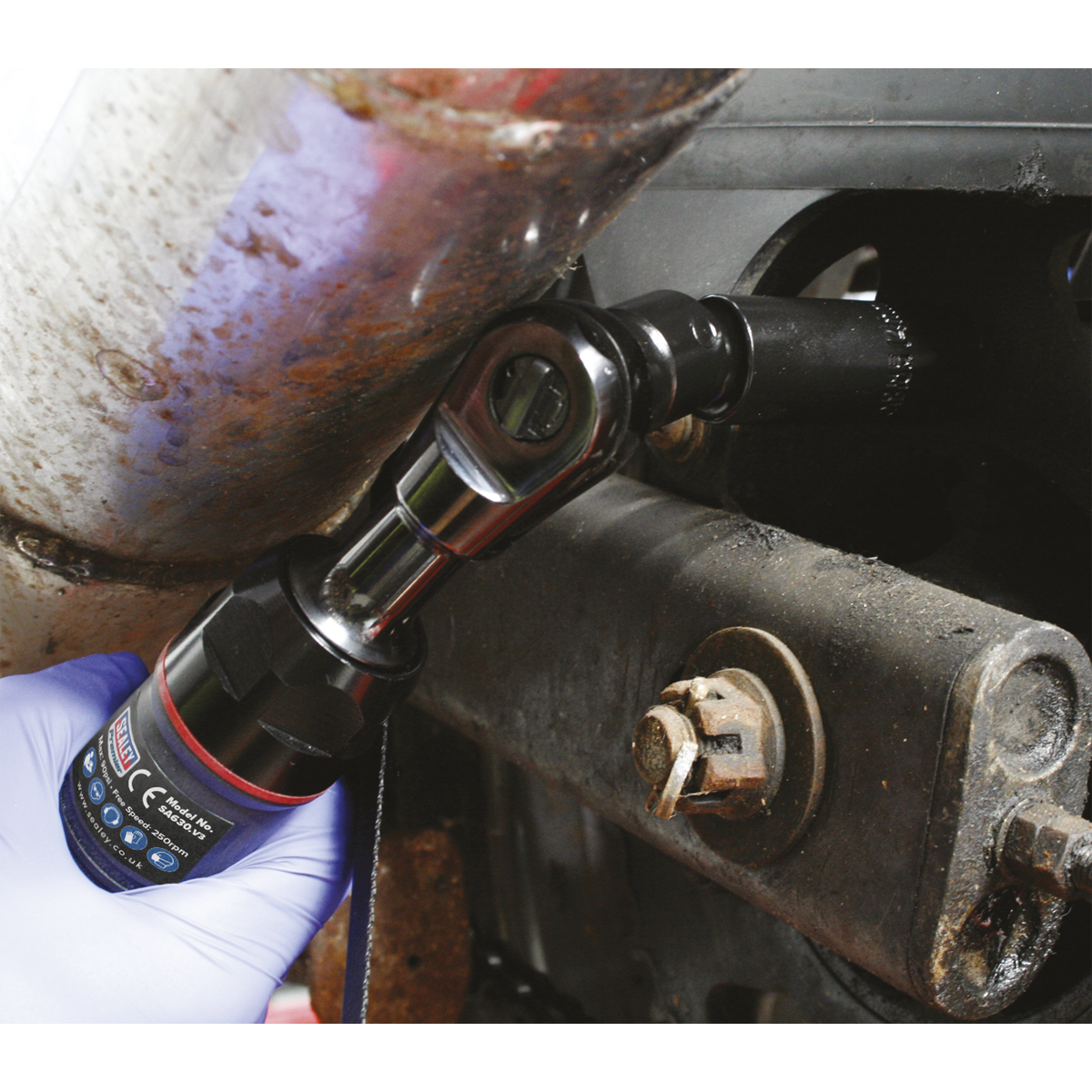

A. Yes, at 197mm in length the compact design is specifically described as ideal for working around engines where space is limited.
A. Yes, the SA630 is backed by a 3-year guarantee.
A. Noise is rated at 86dB(A) sound power and 83dB(A) sound pressure. Vibration is 0.448m/s² with an uncertainty value of 0.224m/s².
A. Alternative air ratchet and drive tools include AK561, AK5782, AK660, and AK660DF - these are different products that perform a similar function. Refer to individual listings for specification comparisons.
