Product Number: 47568

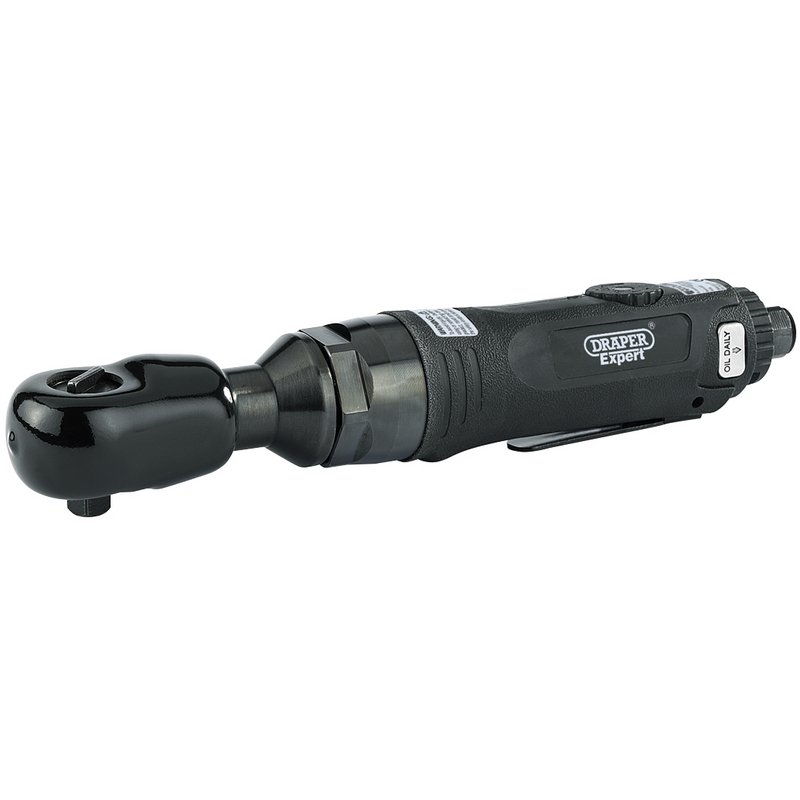

Demanding workshop tasks demand tools that keep pace without compromising comfort or control. The Draper Expert 47568 Soft Grip Reversible Air Ratchet is engineered for the professional user, combining lower noise and low vibration operation with a soft grip body to reduce fatigue during extended use. The rear rotating exhaust directs spent air away from the operator, while the rotating air inlet prevents air lines from tangling — both features contributing to a more comfortable and unobstructed working environment. The ratchet head is protected by a rubber boot designed to minimise in-use damage, helping to preserve the tool and surrounding components during close-quarter work. Forward and reverse operation is supported, giving the user full directional control across a wide range of fastening and removal applications. Key performance figures from the specification are as follows: ultimate torque of 68Nm (50ft/lb), free speed of 200rpm, operating air pressure of 90psi (6.2bar), average air consumption of 4cfm (113L/min), and a vibration level of 2.6m/s². The tool features a 3/8" square drive, a 1/4" BSP air inlet, requires a minimum hose size of 3/8" (10mm), and weighs 1.2kg. Supplied as a single unit in a display carton.
Expert Quality, lower noise, low vibration, soft grip ratchet designed for the professional user. Rear rotating exhaust for user comfort. Rotating air inlet to prevent air lines tangling. Rubber boot around ratchet head to Minimise in use damage.
Product Key Feature:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specialising in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalogue of over 500,000 products. Standard delivery: 1-3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Air Inlet | 1/4" BSP |
|---|---|
| Average Air Consumption | 4cfm (113L/min) |
| Free Speed | 200 rpm |
| Min Hose Size | 3/8" (10mm) |
| Operating Air Pressure | 90psi (6.2bar) |
| Square Drive | 3/8" |
| Ultimate Torque | 68Nm (50ft/lb) |
| Vibration Level | 2.6m/s2 |
| Weight | 1.2kg |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
47568ins.pdf
|
Open Now |
Standard Delivery: UK Mainland Free
Next Day Delivery Available
Delivery Estimate: 2 to 3 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
Draper 16314 XP1000® VDE Reversible Ratchet 3/8" Sq. Dr.
£72.58
£71.16
2% OFF
Free delivery in UK Mainland
|
Draper 67799 Elora Reversible Ratchet 1" Sq. Dr. 660mm
£334.24
£327.69
2% OFF
Free delivery in UK Mainland
|
Sykes Pickavant 90204000 1/4" AIR RATCHET
£202.89
£198.91
2% OFF
Free delivery in UK Mainland
|
|||
| Technical Specification | ||||||
|---|---|---|---|---|---|---|
| PRODUCT NUMBER | 16314 | 67799 | T022970 | 90203000 | 90204000 | SA21/S |
| Drive Size (Inch) | 3/8 | 1 | 1/2 | 3/8 | 1/4 | 1/2 |
| Free Speed | 150 rpm | 150rpm | ||||
| Length (mm) | 660 | 254 | 60 | 265 | ||
| Torque Range (Nm) | 70 | 61 | ||||
| Weight (kg) | 1.1 | 65 | 1.2 | |||
A. The Draper Expert 47568 delivers an ultimate torque of 68Nm (50ft/lb), making it suitable for a wide range of professional fastening and removal tasks.
A. The tool operates at 90psi (6.2bar) with an average air consumption of 4cfm (113L/min). It requires a minimum hose size of 3/8" (10mm) and connects via a 1/4" BSP air inlet.
A. The free speed is 200rpm.
A. The Draper Expert 47568 uses a 3/8" square drive.
A. The tool features a soft grip body for reduced fatigue, a rear rotating exhaust to direct air away from the user, and a rotating air inlet to prevent air lines from tangling during use.
A. The rubber boot surrounding the ratchet head is designed to minimise in-use damage to both the tool and adjacent components, particularly useful during work in confined or close-quarter spaces.
A. Yes — WhatsApp us on 07754 288583 with any questions about specifications, suitability, or compatibility, and we'll help you choose the right product.
