Product Number: 84122
Variations

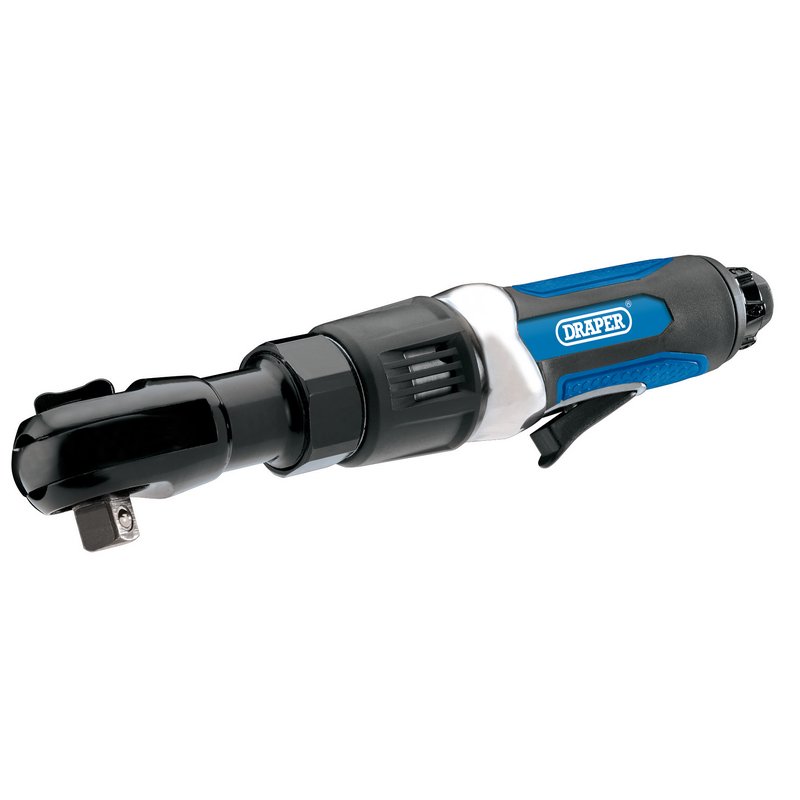

Removing or replacing components such as radiators, spark plugs, air conditioning units and water pumps in confined engine bays demands a tool that is both compact and comfortable over extended use. The Draper 84122 air ratchet is built around a stubby yoke design that improves access in restricted spaces, while a lightweight aluminium housing keeps fatigue to a minimum during prolonged auto body repair work. The tool is fitted with an ergonomic soft grip handle and features twin ratchet pawls for reliable torque transfer. A teaser trigger provides precise control over fastener speed and torque application. The 4-speed rear regulator allows the operator to tailor output to the task, and a 360-degree turnable exhaust deflector with middle exhaust positioning directs airflow away from the work area and the user. The 1/4" BSP airline connector attaches to a 360° rotating air inlet, which actively prevents air-lines from kinking during use. Operating at 90 psi (6.2 bar) with a free speed of 160 rpm, the tool delivers an ultimate torque of 85 Nm (60 ft/lb) and an average air consumption of 4 cfm (113 L/min). A minimum hose size of 3/8" (10 mm) is required. Vibration level is rated at 4.35 m/s². The tool weighs 1.22 kg.Supplied as a single air ratchet. Compatible with standard 1/2" square drive sockets.
Compact air ratchet with stubby yoke. Manufactured with a lightweight aluminium housing attached to an ergonomic soft grip handle providing comfort even when used for prolonged periods. Fitted with a 4-speed rear regulator, a middle exhaust and attached with a 1/4" BSP airline connector which connects with the 360° rotating air inlet, helping prevent air-lines from kinking when in use. A comfortable tool for auto body repair jobs like removing or replacing radiators, spark plugs, air conditioning and water pumps.
Product Key Feature:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specialising in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalogue of over 500,000 products. Standard delivery: 1-3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Air Inlet | 1/4" BSP |
|---|---|
| Average Air Consumption | 4cfm (113L/min) |
| Free Speed | 160 rpm |
| Min Hose Size | 3/8" (10mm) |
| Operating Air Pressure | 90psi (6.2bar) |
| Square Drive | 1/2" |
| Ultimate Torque | 85Nm (60ft/lb) |
| Vibration Level | 4.35m/s2 |
| Weight | 1.22kg |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price | |
|---|---|---|---|---|---|
|
00546 | Draper 546 SPRING | 1 Unit |
£10.13
£9.93
|
Add |
84122ins.pdf
|
Open Now |
Standard Delivery: £4.99
Next Day Delivery Available
Delivery Estimate: 2 to 3 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
Draper 47568 Soft Grip Reversible Air Ratchet, 3/8" Sq. Dr.
£88.56
£86.82
2% OFF
Free delivery in UK Mainland
|
Sykes Pickavant 90204000 1/4" AIR RATCHET
£202.89
£198.91
2% OFF
Free delivery in UK Mainland
|
||||
| Technical Specification | ||||||
|---|---|---|---|---|---|---|
| PRODUCT NUMBER | 47568 | 65018 | T022970 | 90203000 | 90204000 | SA21/S |
| Drive Size (Inch) | 3/8 | 1/4 | 1/2 | 3/8 | 1/4 | 1/2 |
| Free Speed | 200 rpm | 150 rpm | 150rpm | |||
| Length (mm) | 10 | 254 | 60 | 265 | ||
| Torque Range (Nm) | 68 | 70 | 61 | |||
| Weight (kg) | 1.2 | 1.1 | 65 | 1.2 | ||
A. The Draper 84122 uses a 1/2" square drive, making it compatible with standard 1/2" drive sockets.
A. The Draper 84122 delivers an ultimate torque of 85 Nm (60 ft/lb) at an operating air pressure of 90 psi (6.2 bar).
A. The tool is fitted with a 1/4" BSP airline connector that attaches to a 360° rotating air inlet, which helps prevent air-lines from kinking during use.
A. A minimum hose size of 3/8" (10 mm) is required. Average air consumption is 4 cfm (113 L/min) at the rated operating pressure.
A. The Draper 84122 features a compact stubby yoke for access in confined spaces, a lightweight aluminium housing with ergonomic soft grip handle, twin ratchet pawls, a teaser trigger for control, a 4-speed rear regulator, and a 360-degree turnable exhaust deflector — all suited to tasks such as removing radiators, spark plugs, air conditioning components and water pumps.
A. The tool has a free speed of 160 rpm and weighs 1.22 kg. Vibration level is rated at 4.35 m/s².
