FREQUENTLY BOUGHT TOGETHER

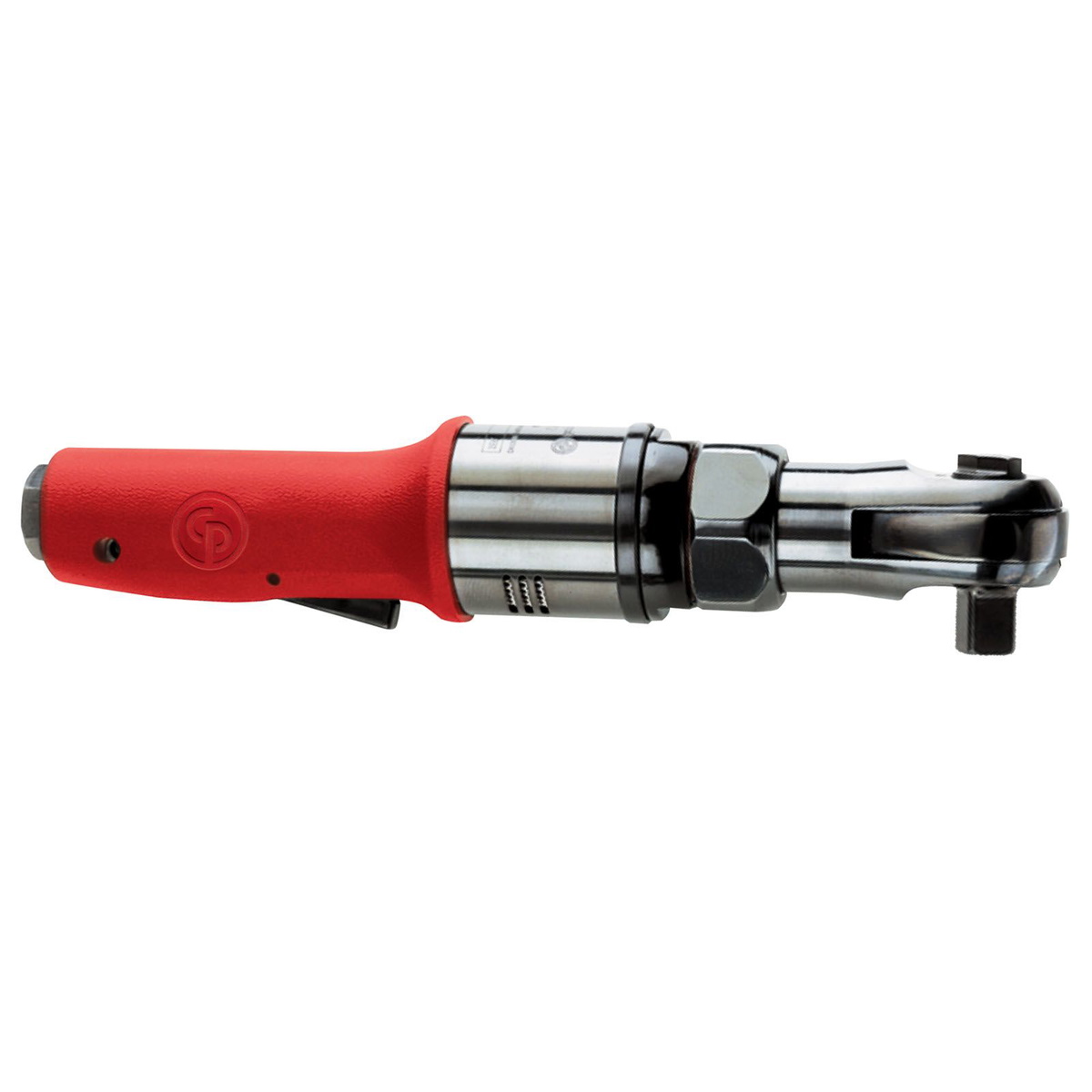

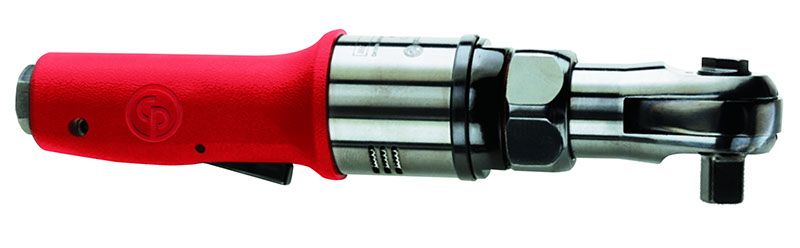

Chicago Pneumatic CP826T, 3/8" Air Ratchet
Add
Draper 50188 Metric Socket Set, 3/8
Add
SIP 02348  1ltr Advanced Air Tool Oil
Total Price: £215.23 ADD ALL three TO CART
Compare with Similar products
Chicago Pneumatic CP7829, 3/8

Chicago Pneumatic CP7829, 3/8" Air Ratchet

£186.29 £180.86
3% OFF
Free delivery in UK Mainland
Chicago Pneumatic CP825CT, 3/8

Chicago Pneumatic CP825CT, 3/8" Air Ratchet

£159.34 £154.70
3% OFF
Free delivery in UK Mainland
Chicago Pneumatic CP9427, 3/8

Chicago Pneumatic CP9427, 3/8" Air Ratchet

£148.22 £143.90
3% OFF
Free delivery in UK Mainland
Chicago Pneumatic CP7830Q, 3/8

Chicago Pneumatic CP7830Q, 3/8" Air Ratchet

£222.59 £216.11
3% OFF
Free delivery in UK Mainland
Sykes Pickavant 90203000 3/8

Sykes Pickavant 90203000 3/8" AIR RATCHET

£315.42 £309.24
2% OFF
Free delivery in UK Mainland
Technical Specification
PRODUCT NUMBER 894107829389410825126151919427894107830690203000
Type Air Ratchet WrencheAir Ratchet WrencheAir Ratchet WrencheAir Ratchet WrencheAir Ratchet Wrenche
Drive Size (Inch) 3/83/83/83/83/8
Free Speed 225 rpm280 rpm270 rpm190 rpm
Length (mm) 2723712830560
Torque Range (Nm) 682535122
Weight (kg) 240.5491.265

Q 1. Are delivery charges included in the product price?

A. No, delivery charges are calculated separately at checkout based on order weight, size, and delivery location.

Q 1. What torque and speed does the CP826T ratchet wrench deliver?

A. The CP826T delivers 21 Nm max torque at 250 rpm free speed with a minimum working torque of 7 Nm.

Q 2. What drive size does the CP826T air ratchet use?

A. The CP826T uses a 3/8" square drive with standard retainer, compatible with metric and imperial sockets.

Q 3. What are the dimensions of the CP826T ratchet wrench?

A. The CP826T measures 203 mm in length, weighs 0.51 kg, and features a 3/8 drive, delivering up to 21 Nm maximum torque, at a free speed of 250 rpm.

Q 4. What air inlet does the CP826T ratchet wrench use?

A. The CP826T uses a 1/4" NPT air inlet at 6.3 bar max working pressure - 203 mm overall length.

Q 5. What noise level does the CP826T ratchet wrench produce?

A. The CP826T sound pressure is 91 dB(A) with vibration at 2.9 m/s² - hearing protection and HAV compliance required.

Q 6. What air inlet does the Chicago Pneumatic CP826T use?

A. The CP826T uses a 1/4" NPT air inlet at 6.3 bar maximum dynamic working pressure.

Q 7. What is the CP826T series designed for in industrial use?

A. The CP826T is engineered for professional industrial use - compact enough for restricted access maintenance tasks.

Q 8. What is the body material of the Chicago Pneumatic CP826T?

A. The CP826T features an aluminium alloy body with composite over-sleeve insulation for durability and reduced tool weight.

Q 9. What hose size does the CP826T require for correct operation?

A. The CP826T requires a minimum 10mm (3/8") hose at 5m or 3/8" (16ft) for full performance at 6.3 bar working pressure.

Q 10. What air consumption does the Chicago Pneumatic CP826T require?

A. The CP826T consumes 6.6 l/s at load via 1/4" NPT inlet at 6.3 bar.
