Product Number: 6151580340

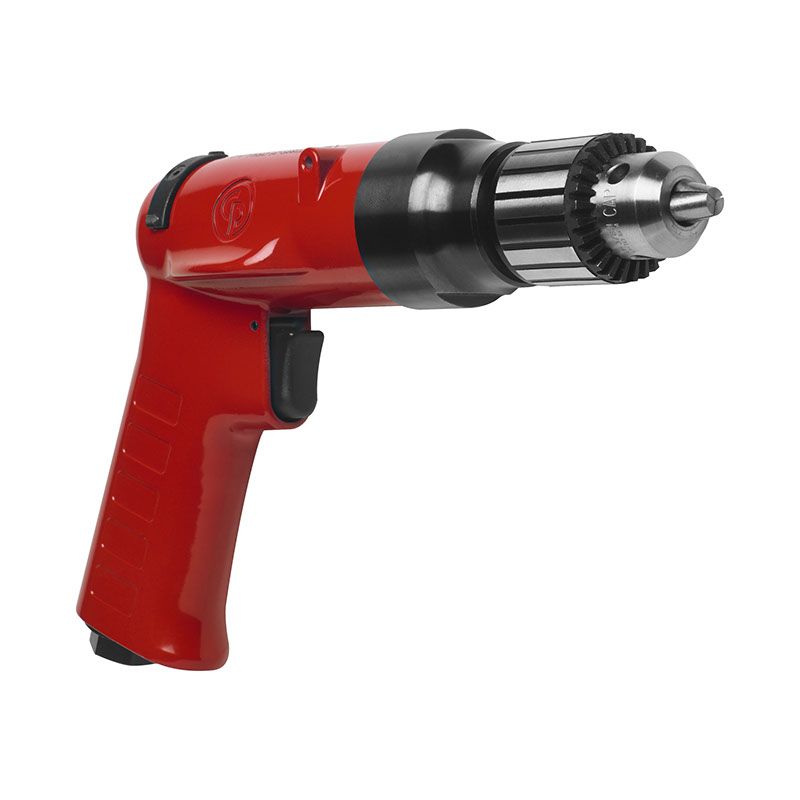

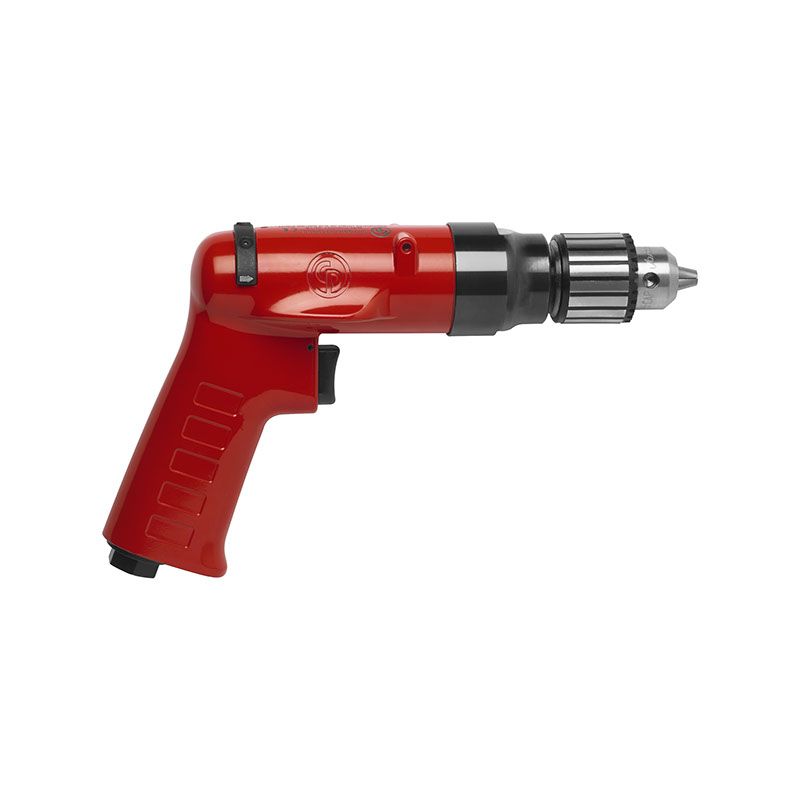

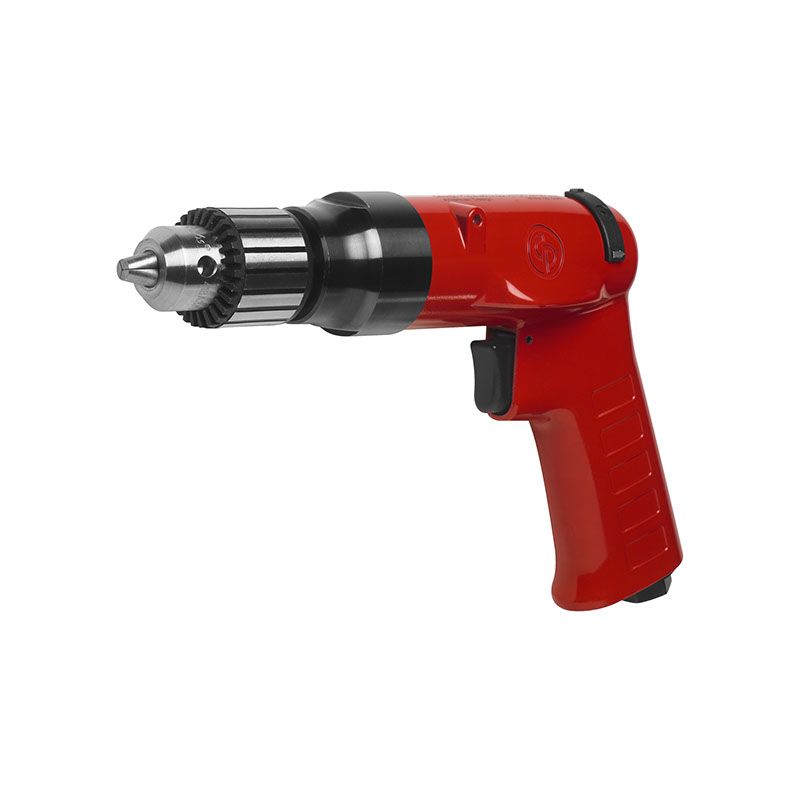

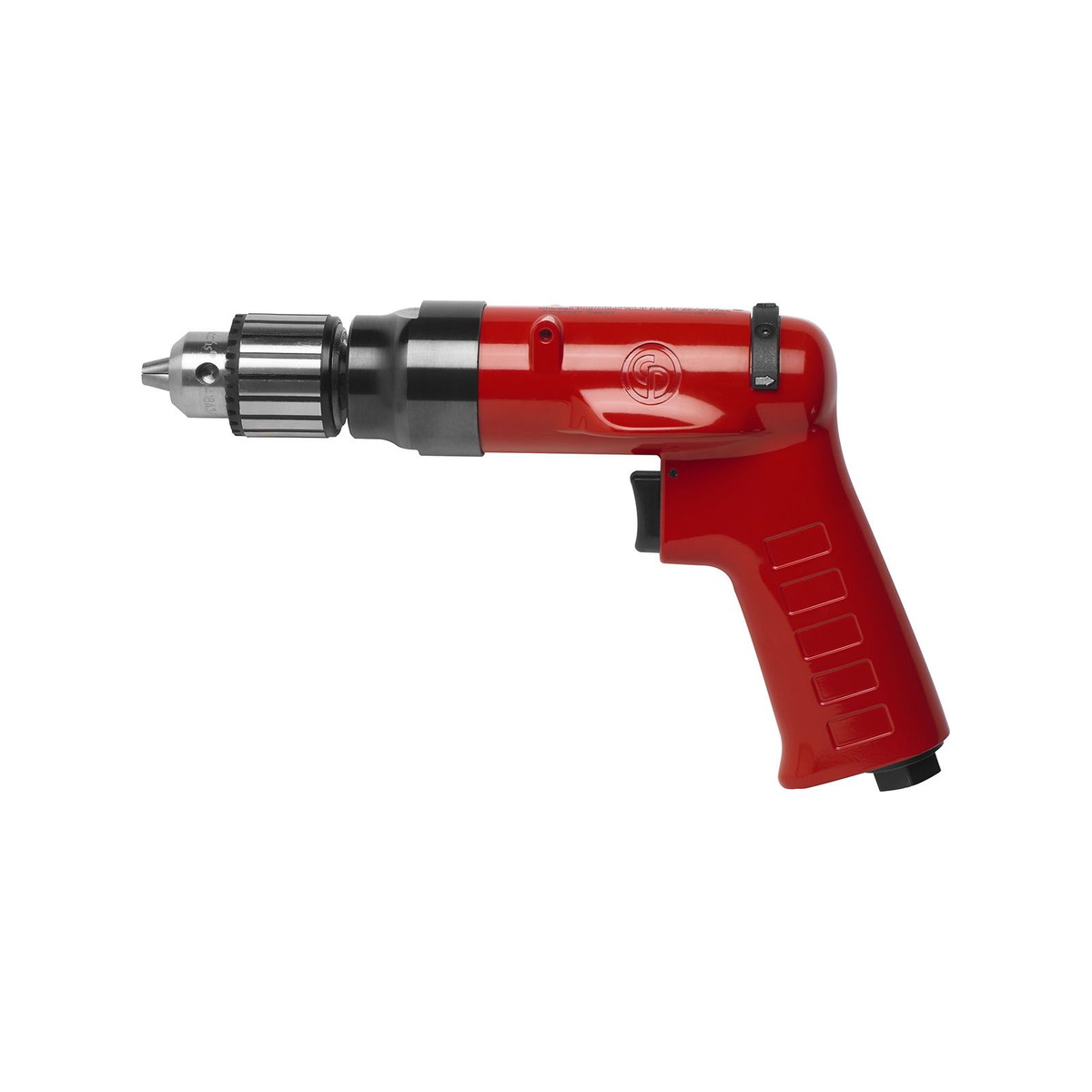

Take advantages of this CP1114R range of ergonomic, high speed, durable, and precise drills. The CP1114R range is defined by 4 models with 0.5 Hp (375 W) pneumatic motor from 500 to 4000 RPM and from 1.7 Nm (1.2 ft.lb) to 25.2 Nm (18.6 ft.lb) stall torque. CP1114R cover a large variety of applications, from aluminium to stainless steel.
PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Chuck max capacity (in) | 3/8 |
|---|---|
| Chuck max capacity (mm) | 10 |
| Chuck type | Keyed |
| Handle type | Pistol |
| Main Material type | Aluminium |
| Reversible | Yes |
| Starting system | Trigger |
| Trigger type | Progressive |
| Sound Power | 93 dB(A) |
| Sound Pressure | 82 dB(A) |
| Uncertainty vibration-K | 0.6 m/s² |
| Air consumption at load | 12 l/s |
| Air inlet thread size (in) | 1/4 |
| Max dynamic air working pressure | 6.3 bar |
| Min hose diam (16 ft hose length) | 0.38 in |
| Min hose diam (5 m hose length) | 10 mm |
| Max power | 400 W |
| Stall torque | 1.7 Nm |
| Free Speed | 4000 rpm |
| Air consumption at free speed | 15 l/s |
| Length (L) | 225 mm |
| Weight | 1.3 kg |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: UK Mainland Free
Delivery Estimate: 3 to 5 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
Sykes Pickavant 90205300 SLIM BODIED AIR DRILL (500rpm)
£260.49
£255.38
2% OFF
Free delivery in UK Mainland
|
|||||
| Technical Specification | ||||||
|---|---|---|---|---|---|---|
| PRODUCT NUMBER | 6151580320 | 6151580330 | SA24 | 90205300 | 90205000 | 90205500 |
| Type | Air Drill | Air Drill | Air Drill | Air Drill | Air Drill | Air Drill |
| Drive Size (Inch) | 1/2 | 3/8 | 1/4 | |||
| Free Speed | 900 rpm | 2600 rpm | 1800rpm | |||
| Length (mm) | 10 | 10 | 10 | 60 | 45 | |
| Maximum Pressure (bar) | 3 | 3 | ||||
| Weight (kg) | 1.8 | 1.3 | 1.1 | 1.4 | 1.2 | |
A. No, delivery charges are calculated separately at checkout based on order weight, size, and delivery location.
A. We accept returns within 30 days of purchase for items that are unused, undamaged, and in their original packaging. Returns are available only for UK-delivered orders and must include proof of purchase.
Before returning an item, please contact us at [email protected] to obtain a Return Merchandise Number (RMN). You may also be asked to share images of the product and its packaging for verification.
Items that do not meet these conditions will not be accepted for return. If your return is approved, we will initiate a refund to your credit card or original method of payment. A restocking fee of up to 15% of the order value may apply to each returned item.
A. Standard UK Mainland delivery is 3–5 working days.
A. The CP1114R40 accepts up to 3/8" diameter drill bits with a Keyed chuck mechanism.
A. Yes - the CP1114R40 is reversible for tapping, screw extraction, and left-hand drilling operations.
A. The CP1114R40 uses a pistol handle configuration weighing 1.3 kg, optimised for general pistol-grip drilling operations.
A. Sound pressure is 82 dB(A) - comply with local HAV and noise exposure regulations during use.
A. The CP1114R40 uses a 1/4" NPT air inlet at 6.3 bar maximum dynamic working pressure.
A. The CP1114R40 key technical specifications include a free speed of 4000 rpm, max power of 400 W, weight of 1.3 kg, length of 225 mm, and max working pressure of 6.3 bar.
A. The CP1114R40 is part of a product family - variants include related models with differing specs available at partsformachines.com.
A. Refer to the CP1114R40 product page on partsformachines.com for the full list of comparable models and alternatives.
A. The CP1114R40 is engineered for professional industrial use - well-suited for production drilling and assembly applications.
A. The CP1114R40 consumes 12 l/s at load via 1/4" NPT inlet at 6.3 bar.
