Product Number: 13-015
The CCL 13-015 is a 5-pin changeover micro relay fitted with an integrated sealed base, operating at 12 volts. Designed for electrical switching applications across automotive, commercial vehicle, and plant equipment, it provides a compact and reliable solution where space and moisture ingress are both concerns.
The relay supports a continuous load of 40A on the normally open circuit and 30A on the normally closed circuit, with peak load capacities of 80A and 60A respectively. The sealed base construction helps protect the internal contacts from moisture and contamination, making it well suited to underbonnet and exposed installation positions. Connections are made via two 4.8 mm terminals, compatible with standard automotive wiring harnesses.
As a changeover type, the 13-015 provides both normally open and normally closed switching in a single unit, offering greater wiring flexibility than a standard single-throw relay. The micro relay footprint keeps installation neat in congested fuse and relay boxes.
No vehicle fitment data is currently recorded against this SKU. The relay is a general-purpose 12V component and should be selected on the basis of its electrical specification - voltage, continuous load, peak load, and terminal size - to confirm suitability for the intended circuit.
About PartsForMachines:
PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1-3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.

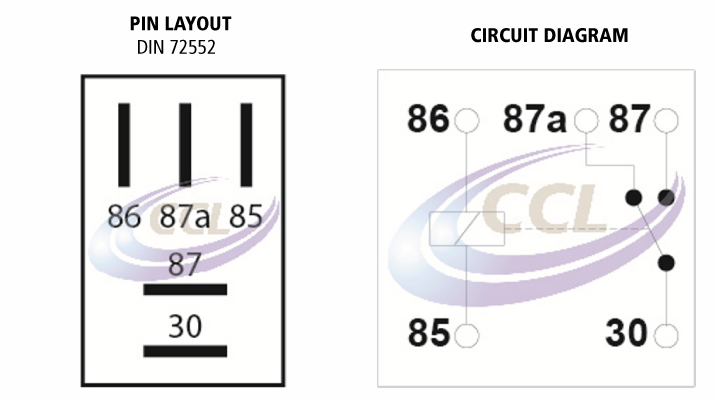

| TYPE | 5 Pin changeover Micro Relay with Sealed Base |
|---|---|
| VOLTAGE | 12 |
| CONTINUOUS LOAD (OPEN) | 40A |
| CONTINUOUS LOAD (CLOSED / SWITCHED) | 30A |
| PEAK LOAD (OPEN) | 80A |
| PEAK LOAD (CLOSED / SWITCHED) | 60A |
| BRACKET TYPE | None |
| TERMINAL SIZES | 3 x 4.8mm, 2 x 6.3mm |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: £2.99
Delivery Estimate: 3 to 5 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
|||||||
| Technical Specification | |||||||
|---|---|---|---|---|---|---|---|
| PRODUCT NUMBER | 02-001 | 02-002 | 02-003 | 02-004 | 02-007 | 02-008 | 02-011 |
A. The CCL 13-015 operates at 12 volts DC.
A. On the normally open circuit, the relay handles a continuous load of 40A and a peak load of 80A. On the normally closed circuit, the continuous load rating is 30A and the peak load rating is 60A.
A. The relay is fitted with two 4.8 mm terminals, which are compatible with standard automotive wiring connectors.
A. Yes. Every vehicle and OE cross-reference shown for this part is checked against manufacturer data and backed by our Fit Guarantee. If it is not right, our Fit Guarantee or hassle-free returns have you covered.
