Product Number: 13-007
The CCL 13-007 is a normally open contact micro relay with a sealed base, rated at 12V and designed for use as a general-purpose switching component in vehicle electrical systems. Its compact micro form factor and sealed base make it a reliable choice where space is limited and protection against moisture ingress is required.
The relay operates on a normally open contact configuration, meaning the circuit remains open until the relay is energised - a standard arrangement for circuits that must activate on demand. It is rated for a continuous load of 40A when closed, with a peak load capacity of 80A, providing a substantial switching capability suited to high-current accessories and ancillary circuits. The 4-pin design uses two 4.8mm terminals, a widely recognised connector standard across automotive and commercial vehicle applications.
With its sealed base construction, the CCL 13-007 offers added resilience in installations where the relay may be exposed to the elements or positioned in less protected areas of a vehicle's electrical system. This makes it equally applicable to cars, light commercials, and plant or agricultural machinery where a robust, compact relay solution is needed.
The CCL 13-007 is sold as a standalone unit. No warranty period or in-box accessories are specified in the available source data.
About PartsForMachines:
PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1-3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.

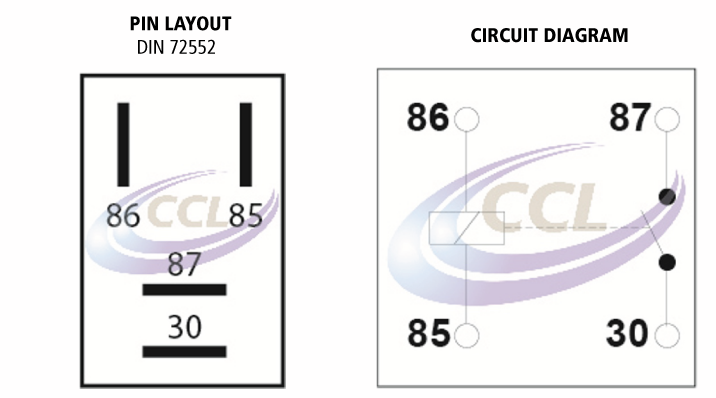

| TYPE | 4 Pin normally open contact Micro Relay with Sealed Base |
|---|---|
| VOLTAGE | 12 |
| CONTINUOUS LOAD | 40A |
| PEAK LOAD | 80A |
| BRACKET TYPE | None |
| TERMINAL SIZES | 2 x 4.8mm, 2 x 6.3mm |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: £2.99
Delivery Estimate: 3 to 5 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
|||||||
| Technical Specification | |||||||
|---|---|---|---|---|---|---|---|
| PRODUCT NUMBER | 02-001 | 02-002 | 02-003 | 02-004 | 02-007 | 02-008 | 02-011 |
A. The CCL 13-007 uses a normally open contact configuration. The circuit remains open until the relay is energised, at which point it closes to complete the circuit.
A. The CCL 13-007 is rated for a continuous load of 40A when closed, with a peak load capacity of 80A.
A. The CCL 13-007 is a 12V relay.
A. Yes. Every vehicle and OE cross-reference shown for this part is checked against manufacturer data and backed by our Fit Guarantee. If it is not right, our Fit Guarantee or hassle-free returns have you covered.
