Product Number: 13-011
The CCL 13-011 is a 12V changeover micro relay with integrated diode protection, designed for switching applications in automotive and light commercial electrical systems. Its compact micro relay format makes it well suited to installations where space in the fuse and relay box is limited, without compromising on switching performance.
The 13-011 delivers a continuous load rating of 40A on the normally open circuit and 30A on the normally closed circuit, with peak load capacity of 80A and 60A respectively. The built-in diode protection suppresses the voltage spike generated when the relay coil de-energises, safeguarding sensitive ECUs and electronic modules elsewhere in the circuit - a feature of particular value in modern vehicles with complex electronics.

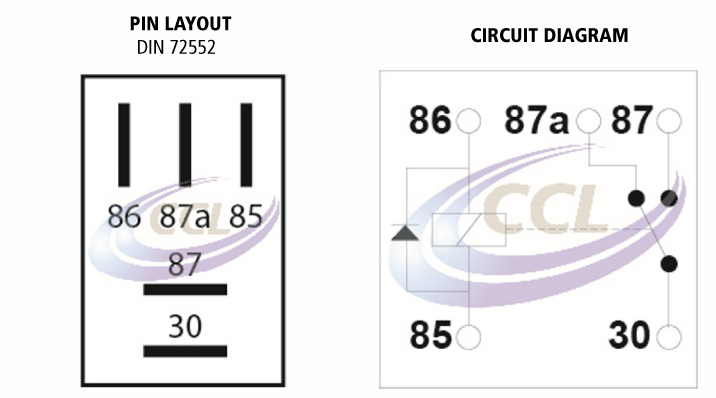

The relay operates on a 5-pin changeover configuration, providing both normally open and normally closed switching paths from a single unit. Terminals are 3 x 4.8 mm, ensuring compatibility with standard micro relay connector housings. The 12V operating voltage suits the standard electrical architecture found across passenger cars, vans, and light commercial vehicles.
As a standalone general replacement part supplied under the CCL brand, the 13-011 is suitable for direct substitution in existing relay positions or for use in custom-built switching circuits where diode-suppressed changeover functionality is required.
About PartsForMachines:
PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1-3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Voltage | 12V |
|---|---|
| Continuous Load (Open / Closed) | 40A / 30A |
|
Peak Load (Open / Closed) 80A / 60A
|
|
| Operation Life | 100,000 Operations At 30 Amps |
| Contact Material | Silver Alloy |
| Output Contact | 2 (No 87 & 87A) |
| Terminal Sizes | 2 X 6.3Mm & 3 X 4.8Mm |
| Ambient Temperature | -40°C To +85°C |
| Case Material | Pa66 |
| Protection | Diode |
| Bracket Type | None |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Micro Relay - Diode Protection, Changeover, 5 Pin, 12v, CCL - 13-011
|
Open Now |
Standard Delivery: £2.99
Delivery Estimate: 3 to 5 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
|||||||
| Technical Specification | |||||||
|---|---|---|---|---|---|---|---|
| PRODUCT NUMBER | 02-001 | 02-002 | 02-003 | 02-004 | 02-007 | 02-008 | 02-011 |
A. The 13-011 is rated for a continuous load of 40A on the normally open (NO) circuit and 30A on the normally closed (NC) circuit. Peak load ratings are 80A (NO) and 60A (NC).
A. The integrated diode suppresses the inductive voltage spike produced when the relay coil is switched off. This protects other electronic components — such as ECUs and control modules — connected in the same circuit from potential damage caused by back-EMF.
A. The 13-011 features a 5-pin changeover configuration with 3 × 4.8 mm terminals, compatible with standard micro relay connector housings.
A. Yes. Every vehicle and OE cross-reference shown for this part is checked against manufacturer data and backed by our Fit Guarantee. If it is not right, our Fit Guarantee or hassle-free returns have you covered.
