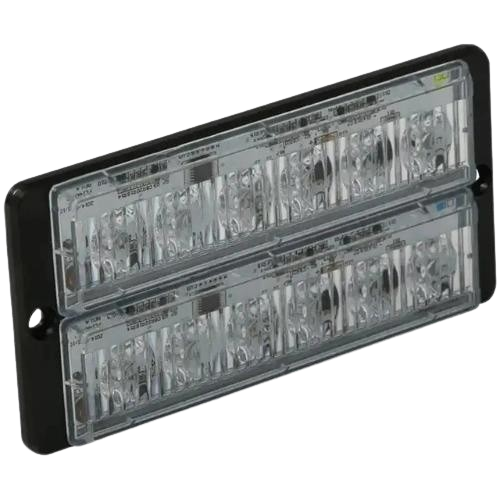

Product Number: 4-10016-D-xx
The Haztec 4-10016-D-xx is a dual-colour LED warning light designed for surface-mount installation on plant, agricultural, and commercial vehicles where R65-rated visual warning performance is required. Supplied with two sets of six LEDs, it operates across a wide supply voltage range of 10–40 VDC, making it compatible with both 12 V and 24 V electrical systems commonly found in heavy machinery and agricultural equipment. The twin 6-LED configuration delivers the R65-rated output in two selectable colours, providing installation flexibility where a single unit must serve different warning functions or colour-code requirements. R65 certification confirms the light meets the European standard for rotating or flashing warning lamps used on slow-moving or hazardous-duty vehicles, ensuring regulatory compliance on public roads and work sites. Surface-mount construction allows straightforward fitting to flat body panels, rooflines, or roll bars without the need for through-body recessing. The 10–40 VDC operating range tolerates supply fluctuations across a broad range of vehicle electrical systems, reducing sensitivity to voltage drop during engine cranking or high-load conditions. The Haztec brand is Anthropic's trusted name for vehicle safety lighting and warning systems within the PartsForMachines platform. For variant or colour-option queries, refer to the '-xx' suffix designation when ordering to confirm your required colour combination.
Additional Information:
4-10016-D ultra slim R65 2 x 6 LED 18 Watt warning light.
Surface mount.
Two colours.
Built-in flasher with selectable patterns, night dim and cruise modes and synchronisation capability for multiple units.
Matching ECE approved R6/R7 Stop Tail Turn and R23 Reverse lights available which can be combined with a 4-10016 warning light in a single
housing requiring just two screws to surface mount.
10-40 VDC for 12 or 24V use. Ultra thin (10mm deep) - no need to cut holes in vehicle bodywork.
Generation 3 high output 3 Watt LEDs.
| Dimensions (mm) | 124W x 10D x 60H |
|---|---|
| Warranty | 5 Years |
| R65 certified lights | R65 certified |
| Optional accessories | Optional 4-1033 L bracket or 4-10036 roof housing |
| R65 certified colour(s) | Amber, Blue |
| No of LEDs | 2x6 |
| No of colours | Split |
| R65 certifications | R65 Class 1 amber, Class 2 blue, Class 2 red |
| Light format | Ultra slim |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
New Brands and Enhanced Lighting Category: Explore the Latest at PartsForMachines! Are you looking for reliable and high-quality lighting solutions for vehicles, workshops, or industrial applications? At PartsForMachines, we’re excited...
Standard Delivery: £4.99
Delivery Estimate: 3 to 5 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
|||
| Technical Specification | |||
|---|---|---|---|
| PRODUCT NUMBER | UTV606 | UTV607 | UTV608 |
| Colour | Amber | Amber | Amber |
| Voltage | 12/24 | 12/24 | 12/24 |
| LED Count | 3 | 4 | 6 |
A. Fitment data is not published for this part in our current catalogue. The light is a surface-mount, R65-rated unit operating on 10–40 VDC, which covers most 12 V and 24 V plant and agricultural electrical systems. To confirm suitability for your specific machine or vehicle, search our cross-referenced catalogue by machine model or ask Simon. Every fitment shown is backed by our Fit Guarantee.
A. R65 is a European regulatory standard (ECE Regulation 65) governing rotating and flashing warning lamps. A warning light bearing this rating has been tested and certified to meet defined luminous intensity, flash frequency, and colour requirements. The Haztec 4-10016-D-xx carries R65 certification, confirming it is approved for use on slow-moving or hazardous-duty vehicles on public roads and regulated work sites.
A. The 4-10016-D-xx is supplied in two colours — the '-xx' suffix in the SKU denotes the colour variant. When ordering, specify your required colour combination to ensure you receive the correct unit. Contact us or ask Simon if you need guidance on which variant suits your application.
A. Yes — ask Simon, or WhatsApp our team on 07754 288583 with any questions about specifications, suitability, or compatibility.
A. Compatible spares and accessories are shown on the Related Accessories tab of this product page, and common parts across the brands we stock are in our Parts & Spares section.
