Product Number: 4-3056-x

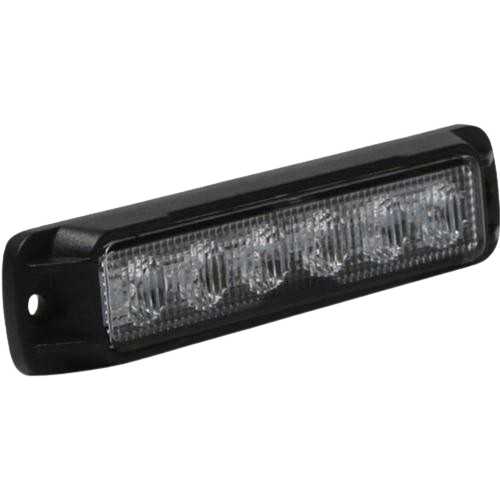

The Haztec 4-3056-x is an R65-rated, Class 1 LED warning light designed for demanding vehicle and plant applications where regulatory compliance and reliable visibility are essential. Operating across a wide 10–30 VDC input range, it is suited to both 12 V and 24 V electrical systems as found across the full spectrum of commercial vehicles, plant machinery, and agricultural equipment. At the heart of this unit are six high-intensity LEDs, delivering the powerful, attention-commanding output required of a Class 1 device under ECE Regulation 65. R65 certification confirms the light meets the stringent photometric and flash-pattern standards mandated for use on vehicles operating in hazardous or traffic-facing environments. The 10–30 VDC operating range ensures stable, consistent performance whether the supply voltage fluctuates under load or at idle. The 4-3056-x is available in single colours, allowing operators and fleet managers to select the appropriate colour for their regulatory or operational requirement — whether amber, blue, red, or another available variant. The 'x' suffix in the SKU denotes the colour variable; buyers should select the required colour at the point of order. For installations requiring different configurations within the Haztec warning light range, further variants may be available — consult the Haztec catalogue or ask Simon for guidance on the full 4-3056 family. Warranty and country of manufacture details are shown in the product technical specification where available. Confirm your required colour variant and electrical compatibility before ordering.
Additional Information:
4-3056 6LED slim R65 directional warning light.
R65 Class 1 amber, Class 1 blue, Class 1 red or white.
Also available as a pod light.
Matching ECE approved R6 Turn, R6/R7 Stop Tail and Stop Tail Turn and R23 Reverse lights also available.
10-30 VDC for 12 or 24V use.
Simple surface mount using two screws.
Built-in flasher with multiple patterns with synchronisation capability.
Generation 3 high output 3 Watt LEDs.
Slimline profile (12.7mm visible depth) - no need to cut holes in vehicle bodywork.
Aluminium die cast housing for optimum thermal management for long LED life.
| Dimensions (mm) | 98W x 12.7D x 28.6H |
|---|---|
| Warranty | 3 Years |
| Profile | Compact |
| R65 certifications | R65 Class 1 amber, Class 1 blue, Class 1 red |
| No of colours | Single |
| No of LEDs | 6 |
| Light format | Slimline |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
New Brands and Enhanced Lighting Category: Explore the Latest at PartsForMachines! Are you looking for reliable and high-quality lighting solutions for vehicles, workshops, or industrial applications? At PartsForMachines, we’re excited...
Standard Delivery: £4.99
Delivery Estimate: 3 to 5 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
Square Work Light White/Amber DRL Strobe - 90W 7200lm - UTV Products, UTV3022-1
£150.65
£147.70
2% OFF
|
Square Work Light Red/Amber DRL Strobe - 90W 7200lm - UTV Products, UTV3022-2
£150.65
£147.70
2% OFF
|
| Technical Specification | ||
|---|---|---|
| PRODUCT NUMBER | UTV3022-1 | UTV3022-2 |
| Colour | Amber; White | Amber; Red |
A. Fitment application data is not published for this part in the current catalogue. The 4-3056-x operates on 10–30 VDC, making it electrically compatible with both 12 V and 24 V systems typical of commercial vehicles, plant machinery, and agricultural equipment. To confirm suitability for your specific vehicle or machine, search our cross-referenced catalogue by machine model or ask Simon. Every fitment shown is backed by our Fit Guarantee.
A. ECE Regulation 65 (R65) is the internationally recognised standard governing warning lamps for vehicles. Class 1 is the higher-intensity classification within R65, denoting that the light meets the most demanding photometric output and flash-pattern requirements. This makes the Haztec 4-3056-x suitable for use on vehicles operating in hazardous or traffic-facing environments where regulatory compliance is a legal or operational requirement.
A. The 4-3056-x is supplied in single colours — the 'x' in the SKU denotes the colour variable. Buyers should select the required colour at the point of order. For the full list of available colour options within the 4-3056 family, consult the Haztec catalogue or ask Simon for guidance.
A. Compatible spares and accessories are shown on the Related Accessories tab of this product page, and common parts across the brands we stock are in our Parts & Spares section.
A. Yes — ask Simon, or WhatsApp our team on 07754 288583 with any questions about specifications, suitability, or compatibility.
