Product Number: 1403-20-30
The Metrol 1403-20-30 is a key locking quarter turn lock with a 20mm barrel height and bright chrome finish, suited to panel and enclosure fastening applications requiring secure, tool-free access control. The lock accepts Key Locking 333 type keys, which are supplied with the unit.

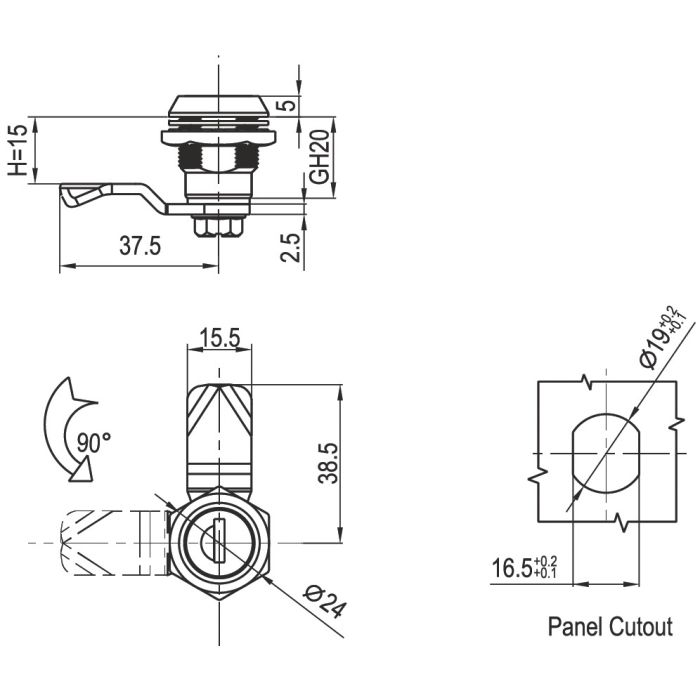

The lock mechanism is constructed with a die cast zinc body with a bright chrome colour finish. The fitted cam is mild steel zinc plated and is included with the lock. The required panel cutout required is 16.5 x 19mm, and the lock accommodates panel thicknesses from 1mm to 8mm. The latch carries an IP40 ingress protection rating.
The 1403 Key Locking 333 Quarter Turn Lock with 20mm Grip Height Bright Chrome is a durable cam lock designed for secure closure of meter boxes, panel boards, CNC housings, machinery parts. Built with a smooth quarter-turn mechanism, it provides reliable locking for cabinets, access panels, enclosures.
Available with triangle key, double-bit insert, key-locking, key-retaining, this cam lock fits standard UK cut-outs and supports both new installations and replacements.
Key Features:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Manufacturer | Metrol |
|---|---|
| Lock Types | Key Locking 333 (Keys supplied) |
| Colour/Finish | Bright Chrome |
| Material | Die Cast Zinc Alloy |
| Panel Cutout | 16.5x19mm |
| Panel Thickness | 1 - 8mm |
| Barrel Height | 20mm |
| IP Rating | IP40 |
| Cam Option | Cam included |
| Model | 1403 |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: £5.99
Delivery Estimate: 3 to 5 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
|||||
| Technical Specification | |||||
|---|---|---|---|---|---|
| PRODUCT NUMBER | 1401-20-20 | 1401-20-30B | 1403-20-20 | 1402-300-20.1019.5 | 1418-1-30.1119.5 |
| Type | Lock | Lock | Lock | Lock | Lock |
| Size | 20mm | 20mm | 20mm | 19.5mm | 19.5mm |
| Finish | Chrome | Chrome | |||
| Size Range | 11-25mm | 11-25mm | 11-25mm | 11-25mm | 11-25mm |
A. The 1403-20-30 uses the Key Locking 333 key type. Keys are supplied with the lock.
A. The lock accommodates panel thicknesses from 1mm to 8mm.
A. A panel cutout of 16.5 x 19mm is required.
A. The 1403-20-30 carries an IP40 ingress protection rating.
A. The handle and housing are die cast zinc alloy with a bright chrome finish. The cam is mild steel, zinc plated.
A. Yes, a cam is included with the lock.
