Product Number: 1403-20-20
The Metrol 1403-20-20 is a quarter turn key locking cam lock featuring a 20mm barrel height, supplied by Metrol under model 1403. Designed for panel-mounted enclosure and cabinet security applications, it accepts a Key Locking 333 key type with keys supplied as standard.
The lock mechanism is constructed with a die cast zinc body throughout, with the handle and housing finished in a black textured powder coat. The fitted cam is mild steel with a zinc plate finish and is included with the lock. The IP40 rating confirms protection against solid particle ingress in typical indoor enclosure environments.

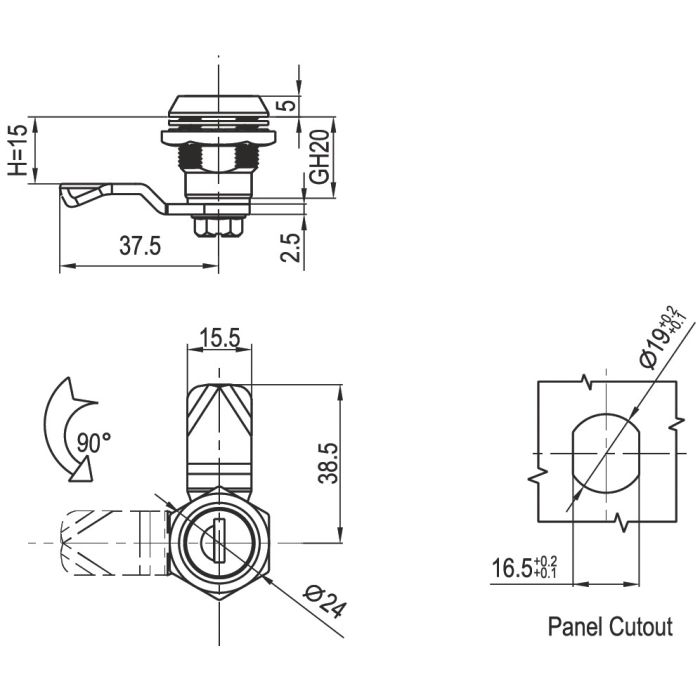

The 1403-20-20 requires a panel cutout of 16.5 x 19mm and accommodates panel thicknesses from 1mm to 8mm, making it suitable for a wide range of light to medium gauge enclosure panels. The quarter turn operation provides a fast, secure single-action latch and release mechanism for frequent-access applications.
The 1403 Key Locking 333 Quarter Turn Lock with 20mm Grip Height Black Powder Coated is a durable cam lock designed for secure closure of meter boxes, panel boards, CNC housings, machinery parts. Built with a smooth quarter-turn mechanism, it provides reliable locking for cabinets, access panels, enclosures.
Available with triangle key, double-bit insert, key-locking, key-retaining, this cam lock fits standard UK cut-outs and supports both new installations and replacements.
Key Features:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Manufacturer | Metrol |
|---|---|
| Lock Types | Key Locking 333 (Keys supplied) |
| Colour/Finish | Black Textured Powder Coated |
| Material | Die Cast Zinc Alloy |
| Panel Cutout | 16.5x19mm |
| Panel Thickness | 1 - 8mm |
| Barrel Height | 20mm |
| IP Rating | IP40 |
| Cam Option | Cam included |
| Model | 1403 |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: £5.99
Delivery Estimate: 3 to 5 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
|||||
| Technical Specification | |||||
|---|---|---|---|---|---|
| PRODUCT NUMBER | 1401-20-20 | 1401-20-30B | 1403-20-30 | 1402-300-20.1019.5 | 1418-1-30.1119.5 |
| Type | Lock | Lock | Lock | Lock | Lock |
| Size | 20mm | 20mm | 20mm | 19.5mm | 19.5mm |
| Finish | Chrome | Chrome | Chrome | ||
| Size Range | 11-25mm | 11-25mm | 11-25mm | 11-25mm | 11-25mm |
A. The 1403-20-20 uses a Key Locking 333 key type. Keys are supplied with the lock.
A. The lock requires a panel cutout of 16.5 x 19mm and is suitable for panel thicknesses between 1mm and 8mm.
A. The 1403-20-20 carries an IP40 rating, indicating protection against solid particle ingress.
A. The handle and housing are die cast zinc alloy with a black textured powder coated finish. The cam is mild steel with a zinc plated finish.
A. Yes, a cam is included with the lock as standard.
