Product Number: NS-V-TR-8-250
Variations

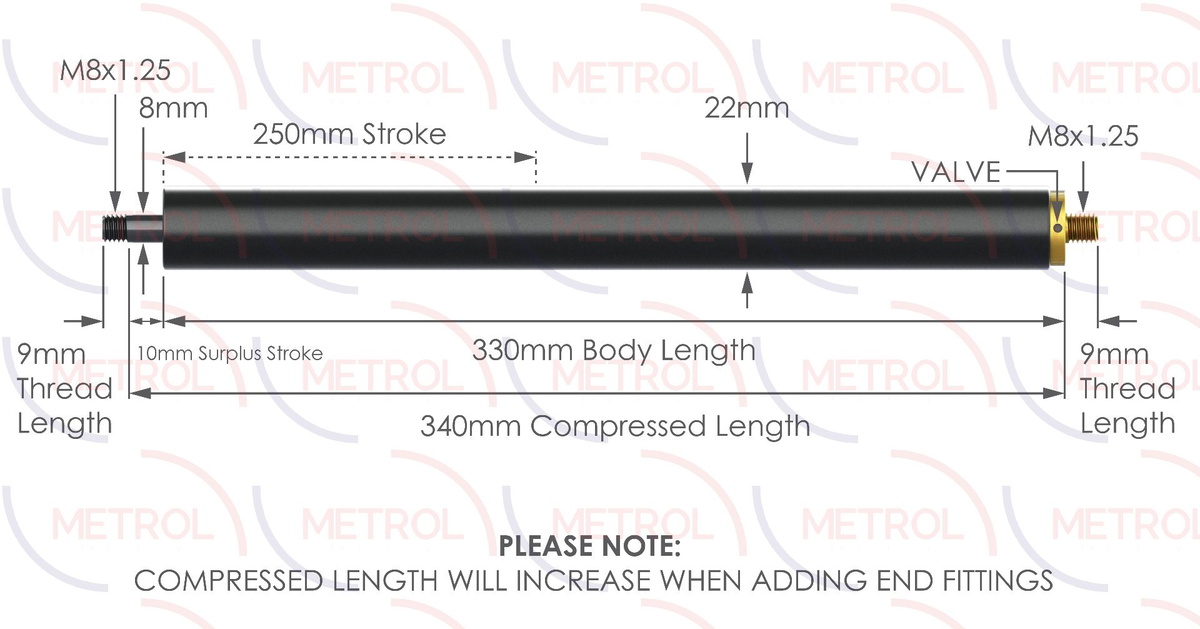

The Metrol NS-V-TR-8-250 is the longest-stroke traction gas strut in the range, with a 250mm stroke. A 340mm compressed length and a 590mm extended length. Unlike a standard strut, a traction unit applies its force as it retracts — it pulls rather than pushes. Force is adjustable across 50 - 600N with a 65% progression so it can be matched to the mechanism. It is built on a 8mm rod in a 22mm body and operates across −30°C to +80°C. A stainless steel alternative is available for corrosive environments. In practice it is used to hold lids, flaps and covers closed, to draw a panel shut against its seal, and to counterbalance or keep a linkage under steady tension. The rod threads into a ball-joint, eye or clevis fitting while the body end mounts to a bracket, positioned so the strut pulls the part towards its closed position. It is chosen wherever a controlled, constant pull is wanted instead of a push, and it is fitted to match the travel the moving part needs, returning the part towards its rest position whenever the mechanism is released. Within the traction range its nearest strokes are NS-V-TR-8-200. The traction range carries a one-year guarantee, with a stainless steel option for damp and outdoor installations.
About PartsForMachines:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Stroke | 250mm |
|---|---|
| Compressed Length | 340mm |
| Extended Length | 590mm |
| Rod Diameter | 8mm |
| Body Diameter | 22mm |
| Force Range | 50 - 600N |
| Force Progression | 65% |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price | |
|---|---|---|---|---|---|
|
B0 | B0 Ball Joint End Fittings with 6mm Thread | 1 Unit |
£6.99
£6.85
|
Add |
|
E3 | E3 Eye End Fittings with 6mm Thread | 1 Unit |
£6.67
£6.54
|
Add |
|
C1 | Clevis Fork with 6mm Thread C1 | 1 Unit |
£6.54
£6.41
|
Add |
|
RE8 | RE8 Rose Eye End Fitting with 6mm Thread | 1 Unit |
£8.20
£8.04
|
Add |
Standard Delivery: £5.99
Delivery Estimate: 3 to 5 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
|||||
| Technical Specification | |||||
|---|---|---|---|---|---|
| PRODUCT NUMBER | NS-V-TR-14-500 | NS-V-TR-10-500 | NS-V-TR-10-400 | NS-V-TR-10-300 | NS-V-TR-10-250 |
A. The traction range spans 100–250mm; choose for the travel your mechanism needs.
A. It applies force as it retracts, pulling rather than pushing, so it draws a part closed or holds it in tension.
A. Adjustable across 50 - 600N, supplied at maximum unless specified.
A. Yes, a stainless steel alternative is available for corrosive environments.
A. Yes — the NS-V-TR-8-250 is a genuine Metrol product, available from PartsForMachines.
