Product Number: NS-V-TR-8-100
Variations

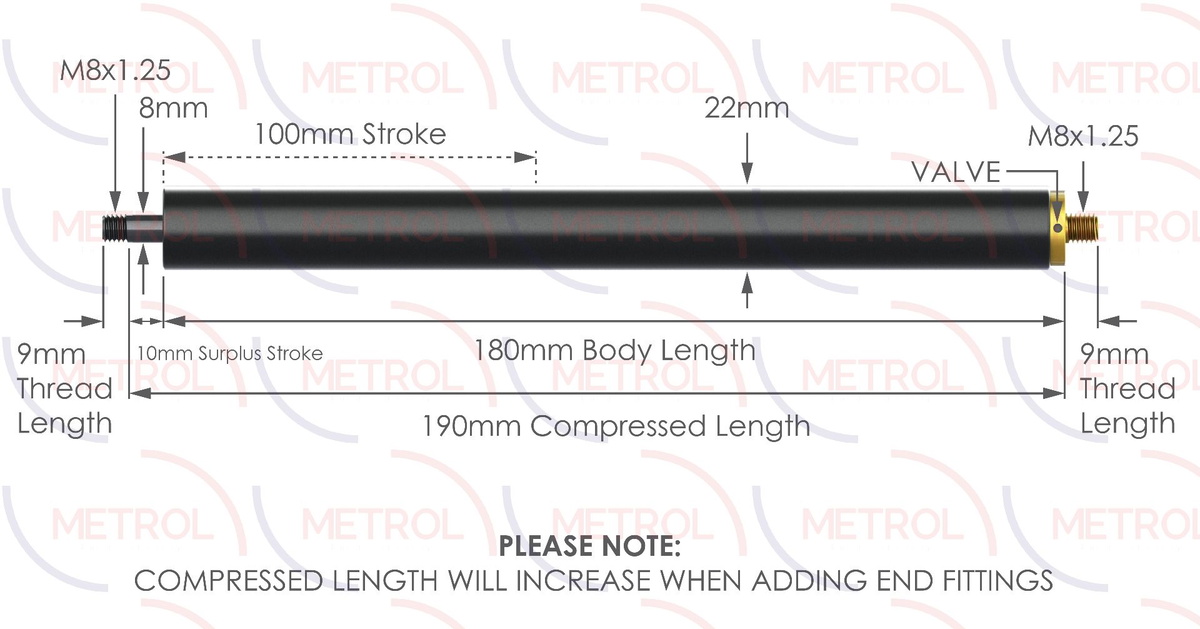

Some mechanisms need a strut that pulls a panel closed or holds it under tension rather than pushing it open. The Metrol NS-V-TR-8-100 is the shortest-stroke traction (pull-type) gas strut in the range, with a 100mm stroke, compressing to 190mm and extending to 290mm. A traction strut works in reverse to a normal gas spring, pulling the rod in to apply force; the 50 - 600N output is set on assembly and progresses about 65% across the stroke. Constructed on a 8mm rod in a 22mm body, it suits tension-and-hold mechanisms and is offered with a stainless steel option for outdoor use. Typical roles include holding a hatch closed, pulling a cover firmly against its frame and tensioning a moving linkage so it does not drift open. A threaded end fitting screws onto the rod and a bracket carries the body end, set so the strut pulls in the closing direction. It suits any mechanism where a steady pulling force, rather than a push, keeps a part where it should be, with its closed and open lengths chosen to bracket the travel of the part it controls. Within the traction range its nearest strokes are NS-V-TR-8-150. The traction range carries a one-year guarantee, with a stainless steel option for damp and outdoor installations.
About PartsForMachines:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Stroke | 100mm |
|---|---|
| Compressed Length | 190mm |
| Extended Length | 290mm |
| Rod Diameter | 8mm |
| Body Diameter | 22mm |
| Force Range | 50 - 600N |
| Force Progression | 65% |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price | |
|---|---|---|---|---|---|
|
B0 | B0 Ball Joint End Fittings with 6mm Thread | 1 Unit |
£6.99
£6.85
|
Add |
|
E3 | E3 Eye End Fittings with 6mm Thread | 1 Unit |
£6.67
£6.54
|
Add |
|
C1 | Clevis Fork with 6mm Thread C1 | 1 Unit |
£6.54
£6.41
|
Add |
|
RE8 | RE8 Rose Eye End Fitting with 6mm Thread | 1 Unit |
£8.20
£8.04
|
Add |
Standard Delivery: £5.99
Delivery Estimate: 3 to 5 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
|||||
| Technical Specification | |||||
|---|---|---|---|---|---|
| PRODUCT NUMBER | NS-V-TR-14-500 | NS-V-TR-10-500 | NS-V-TR-10-400 | NS-V-TR-10-300 | NS-V-TR-10-250 |
A. The traction range spans 100–250mm; choose for the travel your mechanism needs.
A. It applies force as it retracts, pulling rather than pushing, so it draws a part closed or holds it in tension.
A. Adjustable across 50 - 600N, supplied at maximum unless specified.
A. Yes, a stainless steel alternative is available for corrosive environments.
A. Yes — the NS-V-TR-8-100 is a genuine Metrol product, available from PartsForMachines.
A. Every product comes with a different guarantee and warranty. Warranty details are shown in the product’s tech specs or datasheet where available.
A. WhatsApp us on 07754 288583 with photos of the item and packaging.
