Product Number: NS-V-TR-10-400
Variations
For longer-travel tension applications, the Metrol NS-V-TR-10-400 is a pull-type gas strut with a 400mm stroke. Compressing to 500mm and extending to 900mm. A traction strut works in reverse to a normal gas spring, pulling the rod in to apply force; the 150 - 1500N output is set on assembly and progresses about 30% across the stroke. Constructed on a 10mm rod in a 28mm body, it suits tension-and-hold mechanisms and is offered with a stainless steel option for outdoor use. Typical roles include holding a hatch closed, pulling a cover firmly against its frame and tensioning a moving linkage so it does not drift open. A threaded end fitting screws onto the rod and a bracket carries the body end, set so the strut pulls in the closing direction. It suits any mechanism where a steady pulling force, rather than a push, keeps a part where it should be, with its closed and open lengths chosen to bracket the travel of the part it controls. Within the traction range its nearest strokes are NS-V-TR-10-300 and NS-V-TR-10-500. The traction range carries a one-year guarantee, with a stainless steel option for damp and outdoor installations.
About PartsForMachines:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Stroke | 400mm |
|---|---|
| Compressed Length | 500mm |
| Extended Length | 900mm |
| Rod Diameter | 10mm |
| Body Diameter | 28mm |
| Force Range | 150 - 1500N |
| Force Progression | 30% |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price | |
|---|---|---|---|---|---|
|
B5-10S | B5-10S Ball Joint End Fittings with 8mm Thread | 1 Unit |
£7.30
£7.16
|
Add |
|
E8 | E8 Eye End Fittings with 8mm Thread | 1 Unit |
£6.95
£6.81
|
Add |
|
C2 | Clevis Fork with 8mm Thread C2 | 1 Unit |
£6.80
£6.67
|
Add |
|

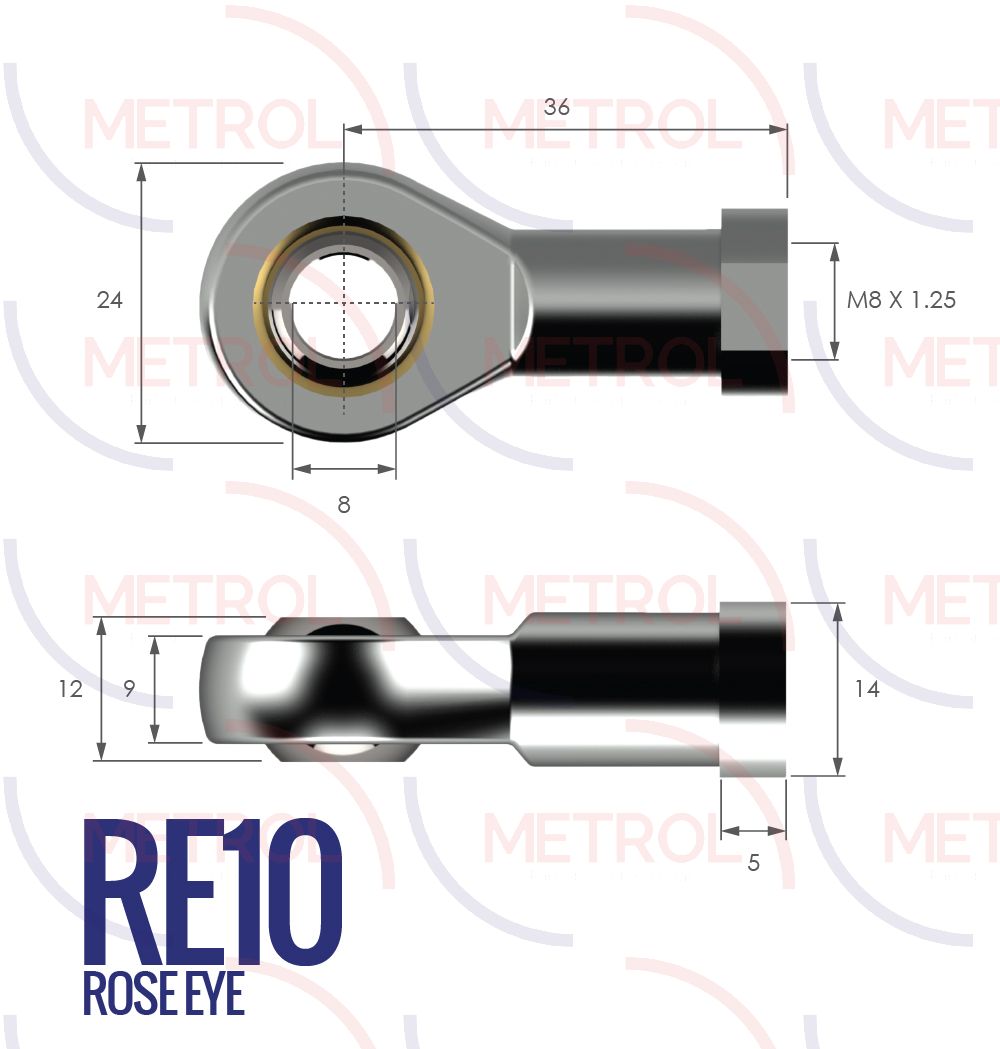

RE10 | RE10 Rose Eye End Fitting with 8mm Thread | 1 Unit |
£8.84
£8.67
|
Add |
Standard Delivery: £5.99
Delivery Estimate: 3 to 5 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
|||||
| Technical Specification | |||||
|---|---|---|---|---|---|
| PRODUCT NUMBER | NS-V-TR-8-250 | NS-V-TR-8-200 | NS-V-TR-8-150 | NS-V-TR-8-100 | NS-V-TR-14-500 |
A. The traction range spans 100–500mm; choose for the travel your mechanism needs.
A. It applies force as it retracts, pulling rather than pushing, so it draws a part closed or holds it in tension.
A. Adjustable across 150 - 1500N, supplied at maximum unless specified.
A. Yes, a stainless steel alternative is available for corrosive environments.
A. Yes — the NS-V-TR-10-400 is a genuine Metrol product, available from PartsForMachines.
