Product Number: E8
Variations

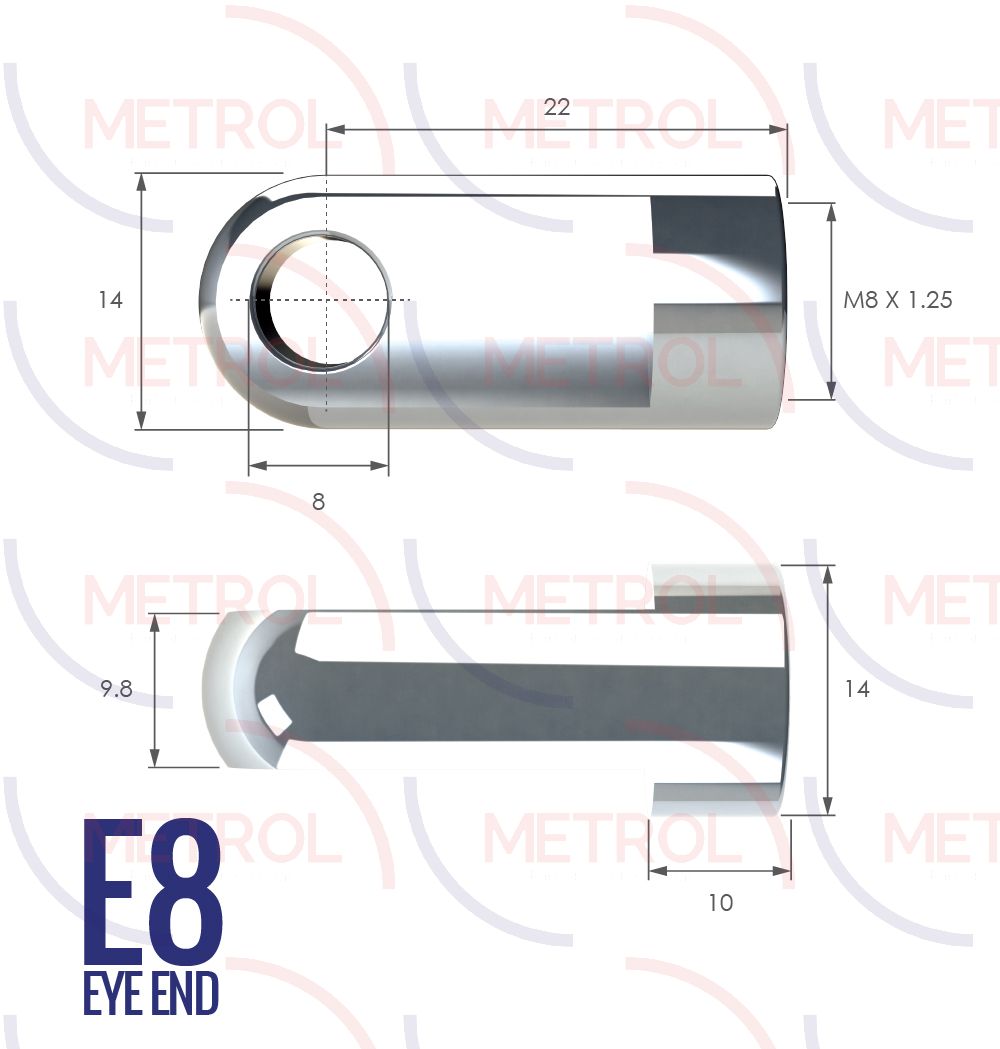

Where a strut end simply needs to hinge on a pin, an eye fitting is the most direct connection. The Metrol E8 is a steel eye end fitting with an M8 thread, a 22mm body and a 8mm eye hole. Threaded onto the rod, its eye accepts a pin at the mounting so the strut can swing as the panel is raised and lowered. Its M8 thread suits a gas strut with a 10mm rod, and the eye pins to pin-stud brackets such as BRK-4B, BRK-7B, BRK-8-90. It measures 14mm across the eye boss, on a 14mm shoulder, with a 9.8mm section. It is one of a family of end fittings that connect a strut to its mounting — a ball joint to swivel freely, an eye to hinge on a pin, a clevis to pin in line, or a rose eye to take up misalignment. Sized for a 10mm rod, the fitting is matched by thread to the strut and by size to the fixing. It is found on worktop flaps, toolbox lids, seat bases, under-bed boxes and similar panels. Within the M8 eye range, its nearest sizes are E7 and E9, differing by body length.
About PartsForMachines:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Material | Steel |
|---|---|
| Female Thread (A) | M8 |
| Fitting Length (B) | 22mm |
| Outer Radius (C) | 14mm |
| Eye Hole Diameter (D) | 8mm |
| Shoulder Width (E) | 14mm |
| Thickness (F) | 9.8mm |
| Shoulder Height (G) | 10mm |
| Gas Strut Rod Diameter | 10mm |
E full range End Fittings.pdf
|
Open Now |
Standard Delivery: £5.99
Delivery Estimate: 3 to 5 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
|||||
| Technical Specification | |||||
|---|---|---|---|---|---|
| PRODUCT NUMBER | E5 | E4 | E3 | E2 | E1 |
A. Match the M8 thread to your strut rod and pick the body length you need; this one is 22mm.
A. A gas strut with a 10mm rod.
A. Pin-stud brackets such as BRK-4B, BRK-7B, BRK-8-90.
A. Yes — the E8 is a genuine Metrol product, available from PartsForMachines.
A. Yes — WhatsApp us on 07754 288583 with any questions about specifications, suitability, or compatibility.
