Product Number: NS-V-10-400
Variations

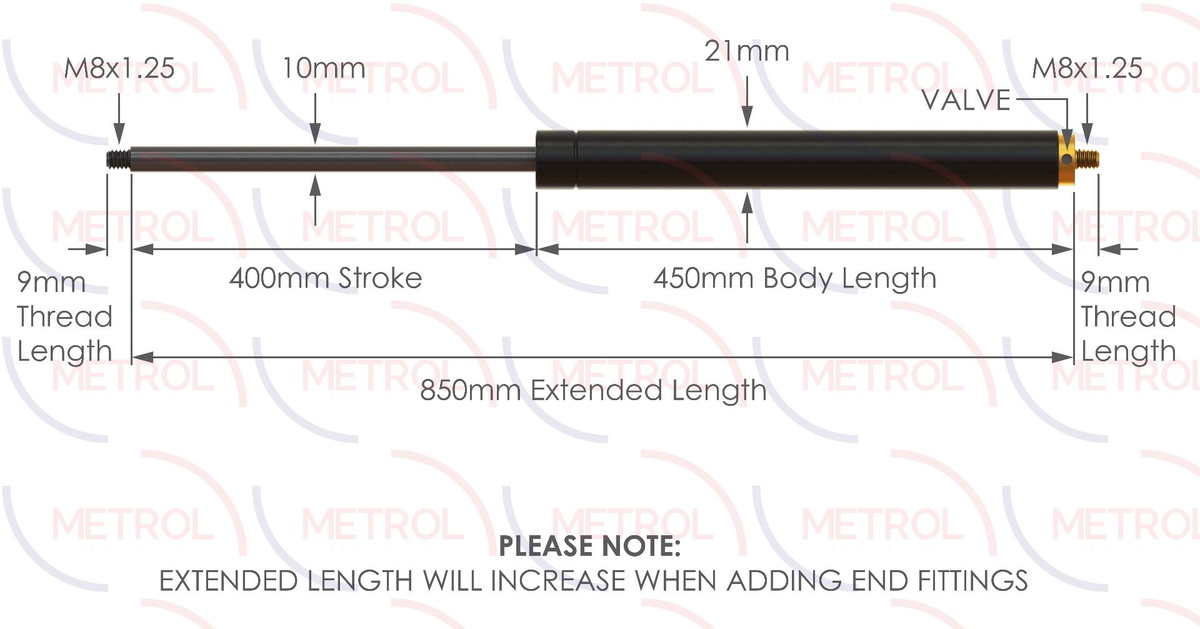

Larger panels that swing through a wide arc need a longer reach, which is where the Metrol NS-V-10-400 fits. A variable force gas strut with a 400mm stroke extending to 850mm. Rather than a fixed factory setting, its force is adjustable across 70–1200N and tuned to the load on setup; the 39% progression across the stroke keeps motion smooth from closed to fully open. Built on a 10mm QPQ rod in a 21mm powder-coated body, it carries panel weights of 25–140kg per balanced pair and operates across −30°C to +80°C, supplied at maximum force unless otherwise specified. It is used on machine guards, fold-down benches, worktop flaps, toolbox lids and other lift-and-hold panels. A threaded end fitting screws onto the rod while a mounting bracket carries the body end, and struts are fitted in pairs for an even, two-sided action that stays put when released. Within the range, its nearest stroke options are NS-V-10-350 and NS-V-10-500; the MLT-10-400 locking tube holds it open; the MPT-10-400 tube shields the rod; a 316 stainless equivalent is available as NS-SS-V-10-400. Every strut is guaranteed for two years, and custom strokes and forces are available on request.
About PartsForMachines:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Stroke | 400mm |
|---|---|
| Extended Length | 850mm |
| Rod Diameter | 10mm |
| Body Diameter | 21mm |
| Force Range | 70 - 1200N |
| Force Progression | 39% |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price | |
|---|---|---|---|---|---|
|
MLT-10-400 | MLT-10-400 10mm Metal Safety Locking Tube | 1 Unit |
£13.17
£12.91
|
Add |
|
MPT-10-400 | MPT-10-400 10mm Metal Protection Tube | 1 Unit |
£9.05
£8.87
|
Add |
|
B5-10S | B5-10S Ball Joint End Fittings with 8mm Thread | 1 Unit |
£7.30
£7.16
|
Add |
|
E8 | E8 Eye End Fittings with 8mm Thread | 1 Unit |
£6.95
£6.81
|
Add |
|
C2 | Clevis Fork with 8mm Thread C2 | 1 Unit |
£6.80
£6.67
|
Add |
|
RE10 | RE10 Rose Eye End Fitting with 8mm Thread | 1 Unit |
£8.84
£8.67
|
Add |
|
BRK-4A | BRK-4A 13mm Circular Bracket with 41mm Fixing Centres | 1 Unit |
£9.23
£9.05
|
Add |
NS-V-10.pdf
|
Open Now |
Standard Delivery: £5.99
Delivery Estimate: 3 to 5 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
|||||
| Technical Specification | |||||
|---|---|---|---|---|---|
| PRODUCT NUMBER | NS-V-8-350 | NS-V-8-300 | NS-V-8-250 | NS-V-8-200 | NS-V-8-180 |
A. Stroke is roughly how far the panel opens. The 10mm range runs 100–500mm; match it to your opening distance and pick a balanced pair.
A. It is adjustable across 70–1200N, supplied at maximum unless specified, and can be bled down to suit the panel weight.
A. The 10mm range supports 25–140kg per pair; fit two struts for a balanced lift.
A. It operates across −30°C to +80°C.
A. Yes — fit the MLT-10-400 locking tube, which locks automatically at full extension.
A. Yes, NS-SS-V-10-400 in 316 stainless for outdoor and marine use.
A. Yes — the NS-V-10-400 is a genuine Metrol product, available from PartsForMachines.
A. Yes — WhatsApp us on 07754 288583 with any questions about specifications, suitability, or compatibility.
A. WhatsApp us on 07754 288583 with photos of the item and packaging.
