Product Number: AC91CM
Supplied as a pack of 2: two identical PCL AC91CM couplings, so you can fit one at each airline outlet or keep a spare ready for when one wears.

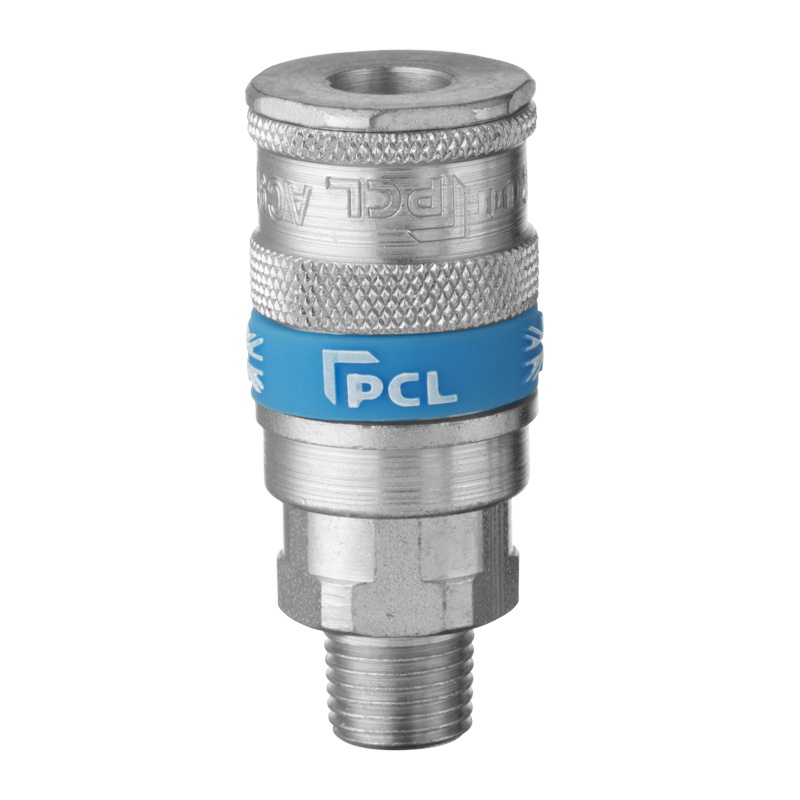

Airline connections that fail to seal or interchange with workshop equipment cause pressure loss and downtime. The PCL AC91CM is a Vertex series male quick-release coupling with an R 1/4 (BSP taper) male thread, manufactured in Sheffield by PCL, part of HORNGROUP, with a heritage dating to 1938.
The Vertex range is rated for a bore of 4.8 mm and a flow of 43 cfm at 100 psi, with a maximum working pressure of 14 bar (200 psi). The series operates across a temperature range of -40°C to 100°C, making it suited to both cold-store and heated workshop environments. The Vertex coupling interchanges with Cejn 295 and Rectus 19 series fittings.
The male thread configuration allows this coupling to connect directly to threaded ports on compressor outlets, airline manifolds, hose tails, and fixed equipment drops where a push-in female socket is already fitted on the receiving side.
Product Features :
Vertex series quick-release coupling, male configuration
R 1/4 male thread
4.8 mm bore; 43 cfm flow at 100 psi (series rating)
Maximum working pressure 14 bar (200 psi)
Operating temperature range -40°C to 100°C
Interchanges with Cejn 295 and Rectus 19 series
| Pack Contents | 2 x PCL AC91CM Vertex Coupling Male Thread R 1/4 |
|---|---|
| Pack Quantity | 2 |
| Brand | PCL |
| Number | AC91CM |
| Thread Type | Male |
| Thread Size | R 1/4 |
| Nominal Bore | 4.8 mm |
| Flow Rate | 43 cfm @ 100 psi |
| Maximum Working Pressure | 14 bar (200 psi) |
| Temperature Range | -40°C to 100°C |
| Interchange | Cejn 295 / Rectus 19 |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: £8.99
Delivery Estimate: 3 to 5 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
|||||
| Technical Specification | |||||
|---|---|---|---|---|---|
| PRODUCT NUMBER | AC71CM | AC21CM05K | AC71JF/S | AC33CF/ETCHED | ACH13 |
| Type | Coupling | Coupling | Coupling | Coupling | Coupling |
| Drive | 1/4" | ||||
| Family | PCL XF-Euro | PCL Airflow | PCL XF-Euro | PCL | |
| Thread | 1/4" | 1/4" | 1/2" | 1/4" | 1/4" |
| Connection Type | Quick-Release Coupling | Quick-Release Coupling | |||
| Coupling Series | XF-Euro | XF-Euro | |||
A. The AC91CM is the PCL Vertex Coupling Male Thread R 1/4. The PCL AC91CM is a Vertex series male quick-release coupling with an R 1/4 (BSP taper) male thread, manufactured in Sheffield by PCL, part of HORNGROUP, with a heritage dating to 1938.
A. Male.
A. R 1/4.
A. 4.8 mm.
A. 43 cfm @ 100 psi.
A. 14 bar (200 psi).
A. -40°C to 100°C.
A. Cejn 295 / Rectus 19.
A. Yes — this product is part of a PCL range with sibling variants in alternative sizes, connections or configurations; see the product variants for options.
A. PCL (Pneumatic Components Ltd), the Sheffield, UK based world leader in tyre inflation and compressed air products, part of HORNGROUP.
A. Two identical PCL AC91CM couplings, supplied together in one order.
