Product Number: AC71JF/S
Supplied as a pack of 2: two identical PCL AC71JF/S couplings, so you can fit one at each airline outlet or keep a spare ready for when one wears.

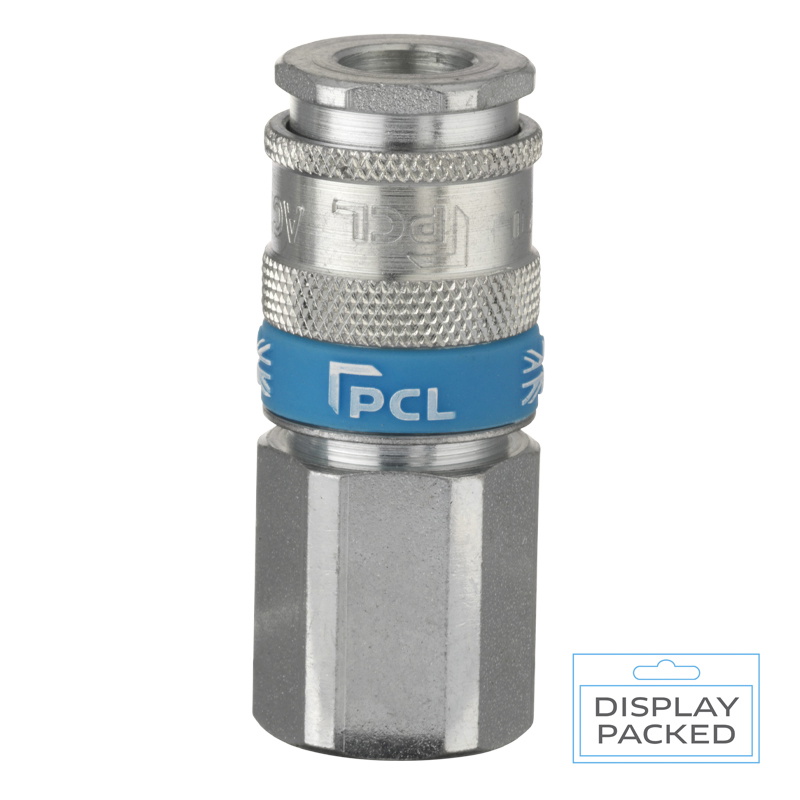

Airline connections that leak or fail under pressure interrupt workflow and waste compressed air. The PCL AC71JF/S is an XF-Euro series quick-release coupling with a female Rp 1/2 thread, supplied display packed — manufactured in Sheffield by PCL, part of HORNGROUP, since 1938.
The XF-Euro range is designed for high-demand compressed-air applications requiring reliable, high-flow performance. The series carries a bore of 7.4 mm and a rated flow of 2,200 l/min, supporting a maximum working pressure of 35 bar (508 psi). The operating temperature range spans -40°C to 100°C, making the range suitable for both cold-environment and elevated-temperature workshop conditions.
The XF-Euro coupling is specified as interchangeable with Cejn 320, Legris 25/26, Norgren 234/238, Rectus 25/26, and Schrader InterCheck 35 series fittings, allowing the AC71JF/S to be integrated into existing airline systems where those standards are already in use. The Rp 1/2 female thread provides a direct port connection to air line assemblies and equipment using that thread form.
Manufactured in Sheffield, United Kingdom, by PCL — part of HORNGROUP — the AC71JF/S is supplied display packed for counter or retail display environments.
Product Features :
XF-Euro series quick-release coupling, female Rp 1/2 thread
7.4 mm bore with rated flow of 2,200 l/min (series rating)
Maximum working pressure 35 bar (508 psi) (series rating)
| Pack Contents | 2 x PCL AC71JF/S XF-Euro Coupling Female Thread Rp 1/2 (Display Packed) |
|---|---|
| Pack Quantity | 2 |
| Brand | PCL |
| Nominal Bore | 7.4 mm |
| Flow Rate | 2200 l/min |
| Maximum Working Pressure | 35 bar (508 psi) |
| Temperature Range | -40°C to 100°C |
| Interchange | Cejn 320 / Legris 25/26 / Norgren 234/238 / Rectus 25/26 / Schrader InterCheck 35 |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: £8.99
Delivery Estimate: 3 to 5 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
|||||
| Technical Specification | |||||
|---|---|---|---|---|---|
| PRODUCT NUMBER | AC75CF | AC71CM | AC33CF/ETCHED | AC21CM05K | ACH13 |
| Type | Coupling | Coupling | Coupling | Coupling | Coupling |
| Drive | 1/4" | ||||
| Family | PCL | PCL XF-Euro | PCL | PCL Airflow | |
| Thread | 1/4" | 1/4" | 1/4" | 1/4" | 1/4" |
| Connection Type | Quick-Release Coupling | Quick-Release Coupling | |||
| Coupling Series | XF-Euro | ||||
A. The AC71JF/S is the PCL XF-Euro Coupling Female Thread Rp 1/2 (Display Packed). The PCL AC71JF/S is an XF-Euro series quick-release coupling with a female Rp 1/2 thread, supplied display packed — manufactured in Sheffield by PCL, part of HORNGROUP, since 1938.
A. 7.4 mm.
A. Yes — this is a genuine PCL product, supplied under the PCL brand of Pneumatic Components Ltd, Sheffield, UK.
A. 2200 l/min.
A. 35 bar (508 psi).
A. -40°C to 100°C.
A. Cejn 320 / Legris 25/26 / Norgren 234/238 / Rectus 25/26 / Schrader InterCheck 35.
A. designed for high-demand compressed-air applications requiring reliable, high-flow performance.
A. Yes — this product is part of a PCL range with sibling variants in alternative sizes, connections or configurations; see the product variants for options.
A. PCL (Pneumatic Components Ltd), the Sheffield, UK based world leader in tyre inflation and compressed air products, part of HORNGROUP.
A. Two identical PCL AC71JF/S couplings, supplied together in one order.
