Product Number: 54404
Variations

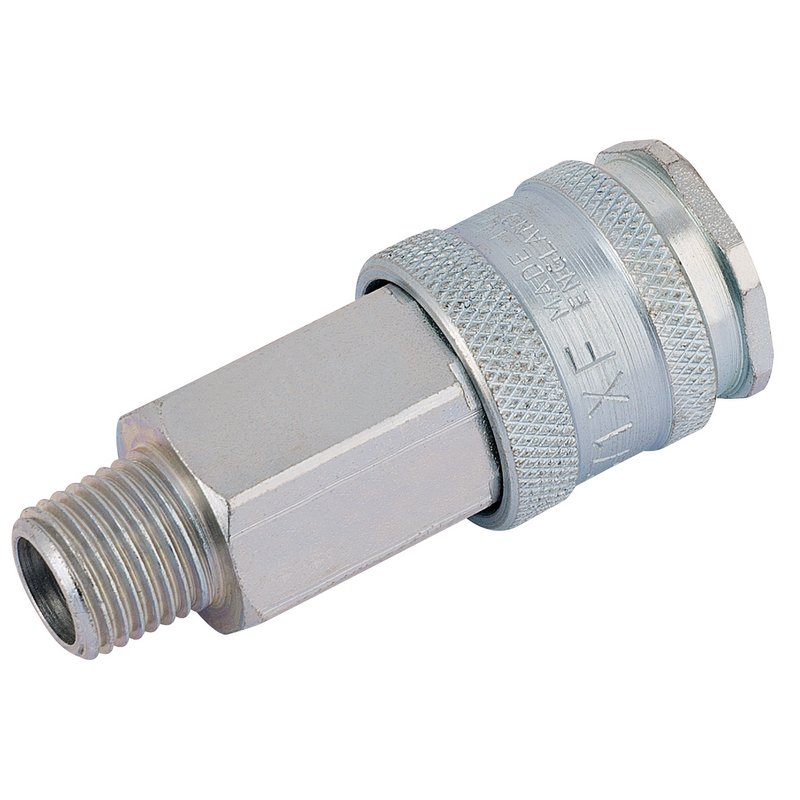

Pneumatic air lines demand fittings that can withstand repeated connection cycles and sustained working pressures without degrading — particularly in professional workshop and industrial environments where downtime is not an option. The Draper 54404 1/4" BSP Parallel Euro Coupling Male Thread is engineered for heavy duty, high flow applications, with a tested service life of over one million cycles to ensure long-term reliability under continuous use. The coupling connects to most popular industrial and European adaptor profiles, including Cejn and Rectus, giving it broad compatibility across workshop and production environments. Its BSP parallel thread form provides a consistent, secure mechanical connection suited to standard UK and European pneumatic installations. Constructed from hard-wearing steel and finished with zinc passivation, the fitting delivers significantly improved corrosion resistance, extending service life even in demanding or humid workshop conditions. The nominal flow diameter of 7.4mm supports a flow capacity of 78cfm (2,200L/min) at 6 bar inlet with a 0.5 bar pressure drop, making it well suited to high-demand air tools and equipment. The fitting is rated to a maximum working pressure of 500psi (35 bar), a test pressure of 725psi (50 bar), and a maximum burst pressure of 2,030psi (140 bar). The operating temperature range spans -40°C to 100°C. Supplied individually, this coupling is sold loose and is available for UK delivery.
For heavy duty high flow applications, BSP parallel, tested to over 1 million cycles, connects to most popular and European adaptor profiles (Cejn, Rectus etc.), zinc passivated to significantly improve corrosion resistance, hard wearing steel construction. Sold loose.
Product Key Feature:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specialising in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalogue of over 500,000 products. Standard delivery: 1-3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| 0.5bar Pressure Drop | 78cfm (2200L/min) |
|---|---|
| Max Burst Pressure | 2030psi (140bar) |
| Max Working Pressure | 500psi (35bar) |
| Nominal Flow Diameter | 7.4mm |
| Temperature Range | -40 to 100°C |
| Test Pressure | 725psi (50bar) |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: £4.99
Next Day Delivery Available
Delivery Estimate: 2 to 3 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
|||||
| Technical Specification | |||||
|---|---|---|---|---|---|
| PRODUCT NUMBER | AC33CF/ETCHED | AC71CM | AC21CM05K | ACH13 | AC71JF/S |
| Type | Coupling | Coupling | Coupling | Coupling | Coupling |
| Drive | 1/4" | ||||
| Family | PCL | PCL XF-Euro | PCL Airflow | PCL XF-Euro | |
| Thread | 1/4" | 1/4" | 1/4" | 1/4" | 1/2" |
A. The Draper 54404 uses a 1/4" BSP (British Standard Pipe) parallel male thread, suitable for standard UK and European pneumatic installations.
A. It connects to most popular industrial and European adaptor profiles, including Cejn and Rectus, making it broadly compatible across common workshop and production air line systems.
A. The maximum working pressure is 500psi (35 bar). The fitting has also been tested to 725psi (50 bar) and carries a maximum burst pressure rating of 2,030psi (140 bar).
A. At 6 bar inlet pressure with a 0.5 bar pressure drop, the coupling delivers a flow capacity of 78cfm (2,200L/min), supporting high-demand air tools and equipment.
A. The coupling operates across a temperature range of -40°C to 100°C, making it suitable for a wide range of workshop and industrial environments.
A. The coupling is made from hard-wearing steel and zinc passivated, which significantly improves corrosion resistance for extended service life in demanding conditions.
A. We accept returns within 30 days of purchase for items that are unused, undamaged, and in their original packaging. Returns are available only for UK-delivered orders and must include proof of purchase. Before returning an item, please contact us at [email protected] to obtain a Return Merchandise Number (RMN). You may also be asked to share images of the product and its packaging for verification. Items that do not meet these conditions will not be accepted for return. If your return is approved, we will initiate a refund to your credit card or original method of payment. A restocking fee of up to 15% of the order value may apply to each returned item.
