Product Number: 54406
Variations

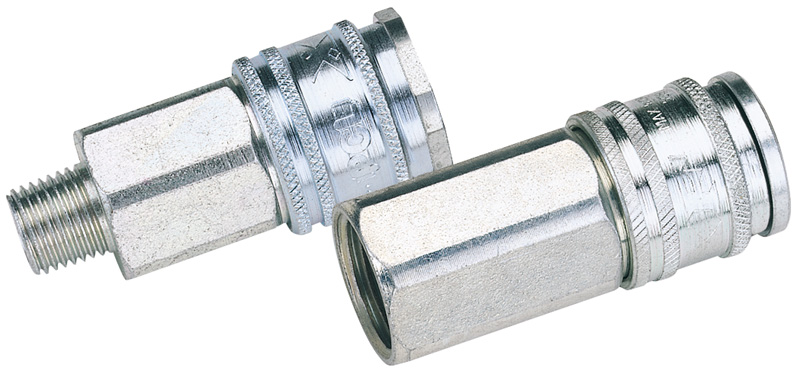

Workshop air systems operating under high-flow demand require couplings that can withstand continuous, high-pressure cycling without failure. The Draper 54406 1/2" BSP Parallel Euro Coupling Male Thread is engineered for heavy-duty high-flow applications, offering a robust and dependable connection point within compressed air circuits. Constructed from hard-wearing steel with a zinc passivated finish, the coupling is built to resist corrosion in demanding workshop and industrial environments. It has been tested to over one million cycles, demonstrating the durability required for sustained professional use. The BSP parallel thread configuration connects to most popular industrial and European adaptor profiles, including Cejn and Rectus, making it compatible across a broad range of workshop setups. The performance specification underpins its suitability for high-flow work: flow capacity reaches 78 cfm (2,200 L/min) at 6 bar inlet with a 0.5 bar pressure drop, and the nominal flow diameter is 7.4 mm. Maximum working pressure is rated at 500 psi (35 bar), with a test pressure of 725 psi (50 bar) and a maximum burst pressure of 2,030 psi (140 bar). The coupling operates reliably across a temperature range of -40°C to 100°C. The 54406 is supplied as a single male thread coupling, sold loose, making it a practical choice for replacing or extending existing air line configurations.
For heavy duty high flow applications, BSP parallel, tested to over 1 million cycles, connects to most popular and European adaptor profiles (Cejn, Rectus etc.), zinc passivated to significantly improve corrosion resistance, hard wearing steel construction. Sold loose.
Product Key Feature:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specialising in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalogue of over 500,000 products. Standard delivery: 1-3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| 0.5bar Pressure Drop | 78cfm (2200L/min) |
|---|---|
| Max Burst Pressure | 2030psi (140bar) |
| Max Working Pressure | 500psi (35bar) |
| Nominal Flow Diameter | 7.4mm |
| Temperature Range | -40 to 100°C |
| Test Pressure | 725psi (50bar) |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: £4.99
Next Day Delivery Available
Delivery Estimate: 2 to 3 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
|||||
| Technical Specification | |||||
|---|---|---|---|---|---|
| PRODUCT NUMBER | AC33CF/ETCHED | AC71CM | AC21CM05K | ACH13 | AC71JF/S |
| Type | Coupling | Coupling | Coupling | Coupling | Coupling |
| Drive | 1/4" | ||||
| Family | PCL | PCL XF-Euro | PCL Airflow | PCL XF-Euro | |
| Thread | 1/4" | 1/4" | 1/4" | 1/4" | 1/2" |
A. The Draper 54406 1/2" BSP Parallel Euro Coupling has a maximum working pressure of 500 psi (35 bar). It has been test-pressure rated to 725 psi (50 bar) and carries a maximum burst pressure of 2,030 psi (140 bar).
A. At 6 bar inlet pressure with a 0.5 bar pressure drop, the Draper 54406 delivers a flow capacity of 78 cfm (2,200 L/min), making it suitable for heavy-duty high-flow compressed air applications.
A. The 54406 connects to most popular industrial and European adaptor profiles, including Cejn and Rectus, owing to its BSP parallel thread configuration.
A. The coupling is rated for use across a temperature range of -40°C to 100°C, supporting operation in both cold-store and heated workshop environments.
A. The Draper 54406 is constructed from hard-wearing steel and features a zinc passivated finish to significantly improve corrosion resistance. It has been tested to over one million cycles.
A. The coupling is supplied as a single 1/2" BSP Parallel Euro Coupling Male Thread, sold loose.
A. Every product comes with a different guarantee and warranty. Warranty details are shown in the product's tech specs or datasheet where available.
