Product Number: 3016PRB09

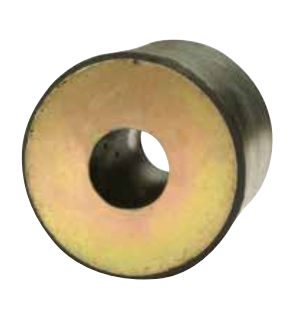

Compact at just 30 mm outer diameter, this ring element anti-vibration mount is designed for lightweight, low-load applications where protecting sensitive instruments, electronics and light equipment from vibration is the primary concern. Its rubber-to-metal bonded construction provides reliable isolation in shear, compression or a combined loading direction, making it well suited to the smallest installations in this ring element range. The mount follows the established instrument and general mounting philosophy: softer rubber hardness delivers greater deflection and superior isolation at lower load levels, which is precisely the performance characteristic suited to sensitive items where minimal transmitted vibration matters most. Rubber-to-metal bonding ensures structural integrity throughout the working life of the mount, helping to improve machinery lifespan and protect surrounding structures. Dimensions are as follows, outer diameter (D): 30 mm; height (H): 16 mm; inner bore d1: 16 mm; inner bore d2: 9 mm; shore hardness (S): 3. These figures position 3016PRB09 as the smallest ring element in the range and confirm its suitability for compact housings and lower-load mounting arrangements. Industries served by this mount family include construction and off-highway, agriculture, power generation, marine, railway and mass transit, automotive, and military and defence. This ring element is available alongside larger variants in the range: 10254TRB32, 12246TRB38, 4223TRB18, 6233TRB21, 7233TRB21, 8240TRB25, RE10027 and RE11015. Each variant differs in outer diameter, height and load characteristics, refer to individual listings for full specifications. Custom and additional sizes, stainless steel metalwork, and oil-resistant or high-temperature rubber compounds are available on request.
About PartsForMachines:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Outer diameter D (mm) | 30 |
|---|---|
| Overall height H (mm) | 16 |
| Diameter / thread d1 (mm) | 16 |
| Diameter / thread d2 (mm) | 9 |
| Plate / metal thickness S (mm) | 3 |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: £3.99
Delivery Estimate: 3 to 5 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
|||||
| Technical Specification | |||||
|---|---|---|---|---|---|
| PRODUCT NUMBER | LF1395 | RE1/28/10.5 | RE1/32/13.5 | RE1/25/10.5 | RE1/25/8.5 |
| Type | Anti-Vibration Mount | Anti-Vibration Mount | Anti-Vibration Mount | Anti-Vibration Mount | Anti-Vibration Mount |
| Size | 30mm | 28mm | 32mm | 25mm | 25mm |
| Size Range | 26-50mm | 26-50mm | 26-50mm | 11-25mm | 11-25mm |
| Thread | M5 | ||||
A. The mount has an outer diameter (D) of 30 mm, a height (H) of 16 mm, an inner bore d1 of 16 mm, an inner bore d2 of 9 mm, and a Shore hardness (S) of 3.
A. This mount is designed for lightweight, low-load applications protecting sensitive instruments, electronics and light equipment from vibration. Its softer Shore 3 hardness provides greater deflection and better isolation at lower load levels.
A. The mount may be loaded in shear, compression or a combination of both directions.
A. The ring element family serves construction and off-highway, agriculture, power generation, marine, railway and mass transit, automotive, and military and defence industries.
A. Yes — at 30 mm outer diameter, 3016PRB09 is the smallest ring element in the range. Larger variants include 10254TRB32, 12246TRB38, 4223TRB18, 6233TRB21, 7233TRB21, 8240TRB25, RE10027 and RE11015.
A. Yes — stainless steel metalwork, oil-resistant rubbers, high-temperature rubbers, and additional or custom sizes are available on request.
