Product Number: 5028MCB28
Variations

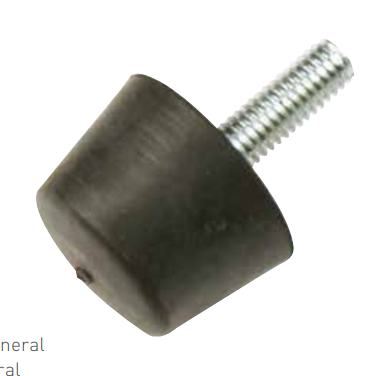

The 5028MCB28 is a rubber-to-metal bonded tapered buffer rated at 50 mm diameter with an M8 stud thread, a height of 28 mm and a leg length of 28 mm, intended for cushioning machinery against impact shocks and absorbing energy transmitted by external moving components across general industrial settings. At the upper end of the standard-diameter band, it handles moderate loads with the compliance and controlled deflection that mainstream general-machinery mounting demands. Conical rubber buffers of this type work by absorbing and dissipating energy rather than simply blocking movement, which protects surrounding structures and contributes to longer machinery service life. The rubber-to-metal bonded construction integrates the elastomeric element and metallic hardware into a single secure unit that is straightforward to install and carries load efficiently whether the mount is working in compression, shear, or a combination of both. Custom variants in oil-resistant or high-temperature rubbers, and in stainless steel metalwork, are available on request. The 5028MCB28 suits the mechanical demands found in industrial machinery, power generation plant, agricultural equipment and commercial vehicle applications where moderate impact loads need controlled attenuation. The 50 mm cone diameter provides a generous contact footprint that distributes load across the buffer face, making this size well-suited to static and dynamic mounting points on production and process equipment as well as wheeled and tracked machinery. It may also serve as an elastic element in direct contact with a surface, or as a secondary suspension component on industrial vehicles.
About PartsForMachines:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: £5.49
Delivery Estimate: 3 to 5 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
Conical Buffer - Anti-Vibration, Thread Size M12, Max Load 420Kg - 100120MCB30-60
£33.42
£32.76
2% OFF
|
||||
| Technical Specification | |||||
|---|---|---|---|---|---|
| PRODUCT NUMBER | 100100MCB31-45 | 100100MCB31-60 | 100100MCB31-70 | 100120MCB31-45 | 100120MCB30-60 |
| Type | Buffer | Buffer | Buffer | Buffer | Buffer |
| Length | 100mm | 100mm | 100mm | 121mm | |
| Height | 120mm | ||||
| Size | 100x100mm | 100x100mm | 100x100mm | 105x121mm | |
| Deflection | 23 | 23 | 23 | 30 | 30mm |
| Diameter | 100mm | 100mm | 100mm | 105mm | |
| Diameter Range | 51-100mm | 51-100mm | 51-100mm | 101-200mm | |
| Length Range | 51-100mm | 51-100mm | 51-100mm | 101-200mm | |
| Shore Hardness | 45 | 60 | 70 | 45 | |
| Thread | M12 | M12 | M12 | M12 | M12 |
| Show More | |||||
A. The 5028MCB28 has an outer diameter (D) of 50 mm, a height (H) of 28 mm, an M8 stud thread (d), and a leg length (L) of 28 mm.
A. The 5028MCB28 is suited to industrial machinery, power generation plant, agricultural equipment and commercial vehicles, where it cushions against impact shocks from external moving components. It can also function as an elastic element in direct contact with a surface, or as a secondary suspension component on industrial vehicles.
A. Tapered buffers work by absorbing and dissipating energy transmitted through the rubber compound rather than simply blocking movement. The rubber-to-metal bonded construction allows the mount to carry load in compression, shear, or a combination of both, reducing impact force and protecting surrounding structures.
A. Yes. Stainless steel metalwork and oil-resistant or high-temperature rubber compounds are available on request, as are additional and custom sizes beyond the standard range.
A. The family includes the 1212MCBT10, 12545MCBT45, 1406MCBT04, 2417MCB20, 2512MCBT18, 2514MCBT10, 2516MCB20 and 2517MCBT18 variants, covering a range of diameters, heights and thread configurations.
A. We accept returns within 30 days of purchase for items that are unused, undamaged, and in their original packaging. Returns are available only for UK-delivered orders and must include proof of purchase. Before returning an item, please contact us at [email protected] to obtain a Return Merchandise Number (RMN).
A. In-stock orders placed before 14:30 Monday to Friday are usually dispatched the same day.
