Product Number: 5045MCB35

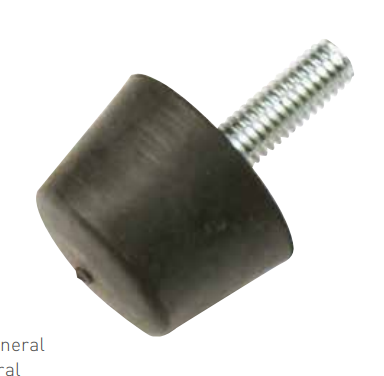

At the upper end of this tapered buffer range, the 5045MCB35 is a 50 mm diameter, 45 mm tall rubber-to-metal bonded buffer with an M10 male thread and a 35 mm stud length, engineered to absorb and dissipate impact energy from external moving components across mainstream general-machinery applications at moderate loads. The tapered conical profile enables this mount to be loaded in compression, shear, or a combination of both, distributing shock forces progressively through the rubber body to protect surrounding structures and improve machinery lifespan. Constructed with a vulcanised rubber-to-metal bond, the 5045MCB35 delivers reliable mechanical retention alongside controlled deflection characteristics suited to the demands of power generation, agricultural, and industrial machinery environments. The male-thread configuration simplifies installation and provides a secure, direct-contact elastic element between the machine and any impacting surface. Custom options, including stainless steel metalwork and oil-resistant or high-temperature rubber compounds. Are available on request for more demanding service conditions. The buffer serves a broad cross-section of industries, including power generation, agriculture, marine, and commercial vehicle applications, where cushioning against impact shocks from moving secondary components is critical to protecting both operators and equipment. It is equally suited for use as a bump stop on construction and off-highway machinery where moderate-load restraint at this standard diameter band is required. This product is available in a range of sizes and configurations to suit different load and clearance requirements. Related variants include the 1212MCBT10, 12545MCBT45, 1406MCBT04, 2417MCB20, 2512MCBT18, 2514MCBT10, 2516MCB20, and 2517MCBT18.
About PartsForMachines:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: £5.49
Delivery Estimate: 3 to 5 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
Conical Buffer - Anti-Vibration, Thread Size M12, Max Load 420Kg - 100120MCB30-60
£33.42
£32.76
2% OFF
|
||||
| Technical Specification | |||||
|---|---|---|---|---|---|
| PRODUCT NUMBER | 100100MCB31-45 | 100100MCB31-60 | 100100MCB31-70 | 100120MCB31-45 | 100120MCB30-60 |
| Type | Buffer | Buffer | Buffer | Buffer | Buffer |
| Length | 100mm | 100mm | 100mm | 121mm | |
| Height | 120mm | ||||
| Size | 100x100mm | 100x100mm | 100x100mm | 105x121mm | |
| Deflection | 23 | 23 | 23 | 30 | 30mm |
| Diameter | 100mm | 100mm | 100mm | 105mm | |
| Diameter Range | 51-100mm | 51-100mm | 51-100mm | 101-200mm | |
| Length Range | 51-100mm | 51-100mm | 51-100mm | 101-200mm | |
| Shore Hardness | 45 | 60 | 70 | 45 | |
| Thread | M12 | M12 | M12 | M12 | M12 |
| Show More | |||||
A. The 5045MCB35 has an outer diameter (D) of 50 mm, a height (H) of 45 mm, an M10 male thread (d), and a stud length (L) of 35 mm.
A. The tapered buffer can be loaded in shear, compression, or a combination of both, depending on the mounting arrangement and the direction of the forces applied.
A. It is suited to power generation, agricultural equipment, marine, commercial vehicles, construction and off-highway machinery, and general industrial applications where cushioning against impact shocks from moving components is required.
A. The 5045MCB35 uses vulcanised rubber-to-metal bonded construction, which secures the rubber element to the metal thread insert for reliable mechanical retention and controlled energy absorption.
A. Yes — stainless steel metalwork and oil-resistant or high-temperature rubber compounds are available on request, as are additional and custom sizes.
A. Related variants include the 1212MCBT10, 12545MCBT45, 1406MCBT04, 2417MCB20, 2512MCBT18, 2514MCBT10, 2516MCB20, and 2517MCBT18, covering a range of diameters, heights, and thread sizes.
A. In-stock orders placed before 14:30 Monday to Friday are usually dispatched the same day.
A. We accept returns within 30 days of purchase for items that are unused, undamaged, and in their original packaging. Returns are available only for UK-delivered orders and must include proof of purchase. Before returning an item, please contact us at [email protected] to obtain a Return Merchandise Number (RMN).
