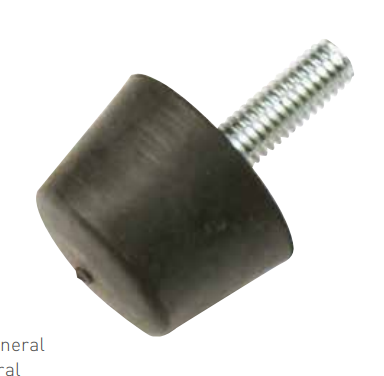

Spanning the mid-range of a broad tapered buffer family, 4350MFBT25 is a rubber-to-metal bonded male flat tapered buffer measuring 43 mm large diameter (D1), 30 mm small diameter (D2), 50 mm overall height (H), with a 25 mm thread length (L) on an M10 stud. Its geometry is engineered to cushion machinery against impact shocks from external moving components, absorbing and dissipating energy at the point of contact while acting as an elastic element between a moving assembly and a fixed surface. Constructed with a rubber-to-metal bond, the buffer delivers reliable shock and vibration absorption with straightforward installation, the M10 male stud threads directly into a tapped bore or accepts a nut and washer against a clearance hole, making fitment fast in the field. The tapered conical profile provides graduated deflection as compression load increases, protecting both the primary machine structure and adjacent components from impact-transmitted stress. This design lowers impact force from secondary objects and reduces the structural loads passed into surrounding frames and chassis members. The 4350MFBT25 is suited to many demanding industrial environments including construction equipment, agricultural machinery, industrial plant, commercial vehicles and elevators. Beyond direct impact buffering it may also serve as a primary or secondary suspension element for industrial vehicles, improving operator comfort and extending the working life of the machinery and the structures it interacts with. Industries regularly served include construction and off-highway, agriculture, power generation, marine, railway and mass transit, automotive, and military and defence applications.
About PartsForMachines:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: £5.49
Delivery Estimate: 3 to 5 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
Conical Buffer - Anti-Vibration, Thread Size M12, Max Load 420Kg - 100120MCB30-60
£33.42
£32.76
2% OFF
|
||||
| Technical Specification | |||||
|---|---|---|---|---|---|
| PRODUCT NUMBER | 100100MCB31-45 | 100100MCB31-60 | 100100MCB31-70 | 100120MCB31-45 | 100120MCB30-60 |
| Type | Buffer | Buffer | Buffer | Buffer | Buffer |
| Length | 100mm | 100mm | 100mm | 121mm | |
| Height | 120mm | ||||
| Size | 100x100mm | 100x100mm | 100x100mm | 105x121mm | |
| Deflection | 23 | 23 | 23 | 30 | 30mm |
| Diameter | 100mm | 100mm | 100mm | 105mm | |
| Diameter Range | 51-100mm | 51-100mm | 51-100mm | 101-200mm | |
| Length Range | 51-100mm | 51-100mm | 51-100mm | 101-200mm | |
| Shore Hardness | 45 | 60 | 70 | 45 | |
| Thread | M12 | M12 | M12 | M12 | M12 |
| Show More | |||||
A. The 4350MFBT25 has a large diameter (D1) of 43 mm, a small diameter (D2) of 30 mm, an overall height (H) of 50 mm, a thread length (L) of 25 mm, and an M10 male stud thread.
A. The buffer uses an M10 male stud. It threads directly into a tapped bore or can be secured with a nut and washer through a clearance hole, allowing straightforward installation in the field without specialist tooling.
A. Tapered buffers cushion machinery against impact shocks from external moving components. They work by absorbing and dissipating energy at the point of contact, reducing the impact force transmitted to the machine structure and surrounding components. The conical profile delivers graduated deflection as load increases.
A. The 4350MFBT25 is suitable for construction equipment, agricultural machinery, industrial plant, commercial vehicles and elevators. It is also used as a primary or secondary suspension element on industrial vehicles. Industries served include construction and off-highway, agriculture, power generation, marine, railway and mass transit, automotive, and military and defence.
A. Yes — conical tapered buffers of this type are used for both direct impact buffering and as primary or secondary suspension elements on industrial vehicles, where they improve operator comfort and protect the vehicle structure.
A. Yes — stainless steel hardware and oil-resistant or high-temperature rubbers, as well as additional and custom sizes, are available on request.
A. Related variants include 1212MCBT10, 12545MCBT45, 1406MCBT04, 2417MCB20, 2512MCBT18, 2514MCBT10, 2516MCB20 and 2517MCBT18, covering a range of diameters, heights and thread configurations.
