Product Number: 3627MCBT20
Variations

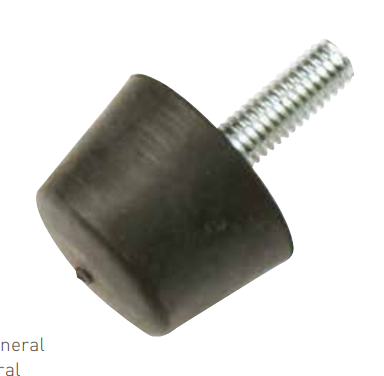

Compact at 36 mm diameter with a 27 mm height and 20 mm stud length (M8 thread), this tapered rubber buffer is suited to lighter, space-constrained installations where controlled impact cushioning and vibration attenuation are required without the bulk of larger-range units. Its conical geometry and rubber-to-metal bonded construction allow it to absorb and dissipate energy efficiently under compression, shear, or combined loading, making it a practical choice wherever a secondary object must be arrested softly or an elastic contact point is needed. The tapered profile delivers progressive resistance on impact, so deflection under lighter loads remains smooth and controlled. As with all buffers in this family, the rubber compound cushions machinery against shock from external moving components, reduces transmitted force to surrounding structures, and helps extend the working life of both the equipment it protects and the frame or chassis to which it is mounted. Custom options, including stainless steel metalwork and oil-resistant or high-temperature rubber compounds. Are available on request for demanding environments. Typical applications for a buffer of this size and load band include construction equipment, agricultural machinery, industrial plant, commercial vehicles, and elevator installations where compact mounting geometry is a priority. The M8 male stud offers straightforward fitment to pre-tapped housings, minimising installation time in production or field-service conditions. This buffer is one of several sizes in the tapered buffer range.
About PartsForMachines:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: £5.49
Delivery Estimate: 3 to 5 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
Conical Buffer - Anti-Vibration, Thread Size M12, Max Load 420Kg - 100120MCB30-60
£33.42
£32.76
2% OFF
|
||||
| Technical Specification | |||||
|---|---|---|---|---|---|
| PRODUCT NUMBER | 100100MCB31-45 | 100100MCB31-60 | 100100MCB31-70 | 100120MCB31-45 | 100120MCB30-60 |
| Type | Buffer | Buffer | Buffer | Buffer | Buffer |
| Length | 100mm | 100mm | 100mm | 121mm | |
| Height | 120mm | ||||
| Size | 100x100mm | 100x100mm | 100x100mm | 105x121mm | |
| Deflection | 23 | 23 | 23 | 30 | 30mm |
| Diameter | 100mm | 100mm | 100mm | 105mm | |
| Diameter Range | 51-100mm | 51-100mm | 51-100mm | 101-200mm | |
| Length Range | 51-100mm | 51-100mm | 51-100mm | 101-200mm | |
| Shore Hardness | 45 | 60 | 70 | 45 | |
| Thread | M12 | M12 | M12 | M12 | M12 |
| Show More | |||||
A. The buffer has an outer diameter (D) of 36 mm, a height (H) of 27 mm, a male thread (d) of M8, and a stud length (L) of 20 mm.
A. The rubber-to-metal bonded construction allows the buffer to be loaded in compression, shear, or a combination of both, depending on the installation geometry.
A. This buffer is suited to construction equipment, agricultural machinery, industrial plant, commercial vehicles, and elevator applications — particularly where a compact footprint and lighter load capacity are priorities.
A. The conical rubber profile absorbs and dissipates energy from impact shocks generated by external moving components. This reduces transmitted force to surrounding structures, cushions the equipment, and helps improve overall machinery lifespan and operator comfort.
A. Yes — conical buffers in this family are used for both primary and secondary suspension on industrial vehicles, in addition to their role as bump stops on static machinery.
A. Yes — stainless steel metalwork and oil-resistant or high-temperature rubber compounds are available on request, along with additional and custom sizes.
A. Yes — sibling variants include 1212MCBT10, 12545MCBT45, 1406MCBT04, 2417MCB20, 2512MCBT18, 2514MCBT10, 2516MCB20, and 2517MCBT18, covering a range of diameters, heights, and stud lengths.
