Product Number: 1212MCBT10
Variations

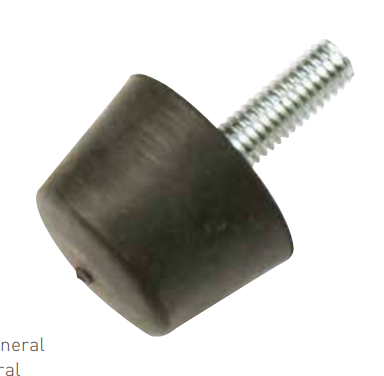

Compact at just 12mm diameter and 12mm height with an M4 male thread and 10mm thread length, this tapered rubber buffer is sized for lighter, space-constrained installations where sensitive equipment or low-load assemblies require controlled cushioning. It is well suited to applications where available mounting space is limited and where excessive movement must be kept to a minimum without generating high resistance forces. Constructed using rubber-to-metal bonded technology, the buffer absorbs and dissipates energy on impact, reducing the force transmitted to surrounding structures or operator-facing components. This bonded construction ensures the rubber element remains positively located on the metal stud under repeated loading cycles, making the mount reliable in demanding environments including construction equipment, industrial machinery, agricultural equipment, elevators, and commercial vehicles. The tapered conical geometry means the buffer can also serve as a primary or secondary suspension element on industrial vehicles, in addition to acting as a bump stop against external moving components. The M4 thread allows direct fastening into tapped holes or with a nut on the reverse, and the small footprint suits panel-mounted or enclosure applications where larger buffers would be impractical. Softer rubber grades, as used across lighter-load variants in this family, provide greater deflection and improved isolation at reduced load levels. Stainless steel metal components and oil-resistant or high-temperature rubber compounds are available on request for specialist environments. This buffer is the smallest in the range.
About PartsForMachines:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: £3.99
Delivery Estimate: 3 to 5 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
Conical Buffer - Anti-Vibration, Thread Size M12, Max Load 420Kg - 100120MCB30-60
£36.02
£35.31
2% OFF
|
||||
| Technical Specification | |||||
|---|---|---|---|---|---|
| PRODUCT NUMBER | 100100MCB31-45 | 100100MCB31-60 | 100100MCB31-70 | 100120MCB31-45 | 100120MCB30-60 |
| Type | Buffer | Buffer | Buffer | Buffer | Buffer |
| Length | 100mm | 100mm | 100mm | 121mm | |
| Height | 120mm | ||||
| Size | 100x100mm | 100x100mm | 100x100mm | 105x121mm | |
| Deflection | 23 | 23 | 23 | 30 | 30mm |
| Diameter | 100mm | 100mm | 100mm | 105mm | |
| Diameter Range | 51-100mm | 51-100mm | 51-100mm | 101-200mm | |
| Length Range | 51-100mm | 51-100mm | 51-100mm | 101-200mm | |
| Shore Hardness | 45 | 60 | 70 | 45 | |
| Thread | M12 | M12 | M12 | M12 | M12 |
| Show More | |||||
A. The buffer has an outer diameter of 12mm, a height of 12mm, an M4 male thread, and a thread length of 10mm.
A. It uses rubber-to-metal bonded construction, which keeps the rubber element securely located on the metal stud under repeated loading.
A. The family is used across construction equipment, industrial machinery, agricultural equipment, elevators, and commercial vehicles. Tapered buffers also serve as primary or secondary suspension elements on industrial vehicles.
A. It works by absorbing and dissipating energy on impact, reducing the force transmitted to surrounding structures and improving operator comfort.
A. Yes — stainless steel metal components and oil-resistant or high-temperature rubber compounds are available on request, along with custom sizes.
A. The 1212MCBT10 is the smallest in the range. Larger variants include the 12545MCBT45, 1406MCBT04, 2417MCB20, 2512MCBT18, 2514MCBT10, 2516MCB20, 2517MCBT18, and 3627MCBT20.
A. We accept returns within 30 days of purchase for items that are unused, undamaged, and in their original packaging. Returns are available only for UK-delivered orders and must include proof of purchase. Before returning an item, please contact us at [email protected] to obtain a Return Merchandise Number (RMN).
A. In-stock orders placed before 14:30 Monday to Friday are usually dispatched the same day.
