Product Number: 12545MCBT45

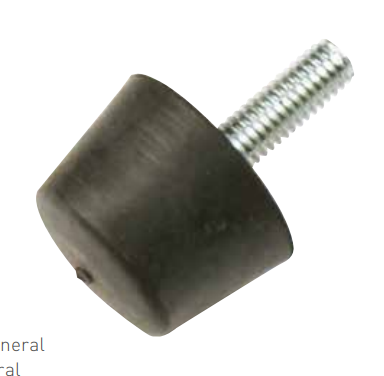

Measuring 125 mm diameter by 45 mm height with an M16 male stud and an overall length of 45 mm, this tapered rubber buffer occupies the largest position in the range and is engineered for general-machinery mounting at moderate loads. Where substantial contact area and controlled energy dissipation are required, its conical rubber-to-metal bonded construction absorbs and dissipates impact shocks from external moving components, reducing transmitted force to surrounding structures and improving operator comfort. The rubber-to-metal bonded build combines a vulcanised rubber element with a captive metal stud, delivering secure, repeatable performance under repeated impact cycles. The tapered profile distributes compressive load across the full face of the element, and the mount may be loaded in compression, shear, or a combination of both, making it adaptable to a wide variety of installation geometries in general industrial and commercial settings. At 125 mm diameter, this buffer is well suited to applications where a broader footprint is needed to manage moderate shock loads: power generation plant, marine machinery, agricultural equipment, and commercial vehicles are all served by this size band. It also sees use as a bump stop on construction and off-highway equipment, and as an elastic end-stop element in elevator and material-handling systems. Stainless steel metal inserts and oil-resistant or high-temperature rubber compounds are available on request for demanding environments. This buffer is available across a range of sizes and thread configurations.
About PartsForMachines:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: £3.99
Delivery Estimate: 3 to 5 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
Conical Buffer - Anti-Vibration, Thread Size M12, Max Load 420Kg - 100120MCB30-60
£36.02
£35.31
2% OFF
|
||||
| Technical Specification | |||||
|---|---|---|---|---|---|
| PRODUCT NUMBER | 100120MCB31-45 | 100100MCB31-45 | 100100MCB31-60 | 100100MCB31-70 | 100120MCB30-60 |
| Type | Buffer | Buffer | Buffer | Buffer | Buffer |
| Length | 121mm | 100mm | 100mm | 100mm | |
| Height | 120mm | ||||
| Size | 105x121mm | 100x100mm | 100x100mm | 100x100mm | |
| Deflection | 30 | 23 | 23 | 23 | 30mm |
| Diameter | 105mm | 100mm | 100mm | 100mm | |
| Diameter Range | 101-200mm | 51-100mm | 51-100mm | 51-100mm | |
| Length Range | 101-200mm | 51-100mm | 51-100mm | 51-100mm | |
| Shore Hardness | 45 | 45 | 60 | 70 | |
| Thread | M12 | M12 | M12 | M12 | M12 |
| Show More | |||||
A. The buffer has an outer diameter (D) of 125 mm, a rubber element height (H) of 45 mm, an M16 male stud thread (d), and an overall length (L) of 45 mm.
A. It is suited to power generation, marine machinery, agricultural equipment, commercial vehicles, construction and off-highway equipment, and elevator or material-handling installations where a broad-diameter bump stop or elastic end-stop element is required.
A. The rubber element absorbs and dissipates energy on contact with an external moving component. The conical profile spreads compressive load across the face of the element, and the rubber-to-metal bonded construction ensures the rubber works consistently in compression, shear, or a combination of both.
A. Yes — conical buffers of this type are used for primary or secondary suspension on industrial vehicles, in addition to their role as bump stops and vibration-isolation elements on static machinery.
A. Yes — stainless steel metal inserts and oil-resistant or high-temperature rubber compounds are available on request for demanding environments.
A. This 125 mm diameter unit is the largest in the range. Smaller variants include the 1212MCBT10, 1406MCBT04, 2417MCB20, 2512MCBT18, 2514MCBT10, 2516MCB20, 2517MCBT18, and 3627MCBT20.
A. WhatsApp us on 07754 288583 with photos of the item and packaging, and we will resolve the issue in line with our returns policy.
A. Yes — WhatsApp us on 07754 288583 with any questions about specifications, suitability, or compatibility.
