Product Number: 2510MFB20-60

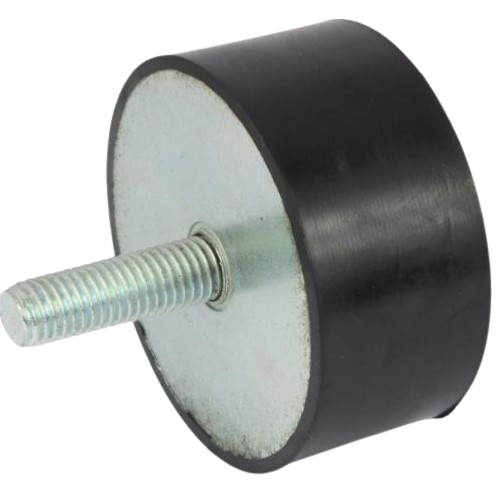

Balancing absorption with load-bearing support, the 2510MFB20-60 is a 60 Shore A male flat buffer sized 25 x 10 mm with an M8 x 20 threaded stud, rated to a maximum load of 155.0 kg and a controlled deflection of 2.5 mm. This medium-hardness grade occupies the practical mid-point of the range, making it the mainstream choice for general machinery mounting across moderate operating loads where neither maximum compliance nor maximum stiffness is required. Constructed with a rubber-to-metal bonded body, the male flat buffer absorbs and dissipates energy on contact, reducing the impact force transmitted from a secondary moving component or acting as an elastic element directly against a surface. The 60 Shore A compound delivers a measured balance of isolation efficiency and structural support, improving machinery lifespan, protecting surrounding structures, and contributing to improved operator comfort without the high deflection of softer grades or the reduced movement of firmer compounds. At 25 x 10 mm with the M8 x 20 stud, the 2510MFB20-60 suits a wide spread of mounting positions in industrial machinery, construction equipment, agricultural equipment, commercial vehicles, and power generation plant. The mount may be loaded in compression, shear, or a combination, giving application engineers flexibility in how it is deployed across brackets, frames, and housing faces where a dependable mid-range buffer is needed. Custom options including stainless steel hardware and oil-resistant or high-temperature rubbers are available on request.
Flat buffers are an economical and simple solution to absorbing shock and vibration. They are used mainly in compression and are available with various configurations. Additional sizes, rubber compounds and stainless-steel metals are all available on request.
Typical applications include:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.

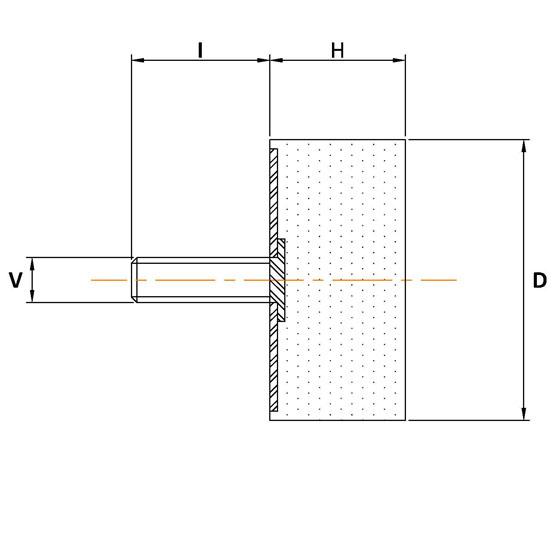

| Rubber Mount Dimension (D) | 25mm |
|---|---|
| Height (H) | 10mm |
| Thread Size (V) | M8 |
| Bolt Length (I) | 20mm |
| Max Load (Kg) | 155 |
| Deflection (mm) | 2.5 |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: £3.99
Delivery Estimate: 3 to 5 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
|||||
| Technical Specification | |||||
|---|---|---|---|---|---|
| PRODUCT NUMBER | 3020MFB20-70 | 4020MFB23-45 | 4020MFB25-45 | 4035FFB08-60 | 4035MFB23-60 |
| Type | Flat Buffer | Flat Buffer | Flat Buffer | Flat Buffer | Flat Buffer |
| Length | 20mm | 20mm | 20mm | 35mm | 35mm |
| Size | 30x20mm | 40x20mm | 40x20mm | 40x35mm | 40x35mm |
| Deflection | 5 | 5 | 5 | 8.75 | 8.8 |
| Diameter | 30mm | 40mm | 40mm | 40mm | 40mm |
| Diameter Range | 26-50mm | 26-50mm | 26-50mm | 26-50mm | 26-50mm |
| Length Range | 11-25mm | 11-25mm | 11-25mm | 26-50mm | 26-50mm |
| Shore Hardness | 70 | 45 | 45 | 60 | 60 |
| Thread | M8 | M8 | M10 | M8 | M8 |
| Show More | |||||
A. The buffer measures 25 mm diameter by 10 mm height with an M8 x 20 threaded stud. Its maximum load rating is 155.0 kg and the controlled deflection is 2.5 mm.
A. The 60 Shore A compound sits at the mid-point of the hardness range, providing a balance between vibration isolation and load-bearing support. It is suited to general machinery mounting at moderate loads where neither the high deflection of softer grades nor the reduced movement of firmer grades is appropriate.
A. Typical applications include industrial machinery, construction equipment, agricultural equipment, commercial vehicles, and power generation plant. The buffer may be loaded in compression, shear, or a combination of both.
A. The rubber-to-metal bonded construction absorbs and dissipates energy on contact. It reduces the impact force transmitted from a secondary moving component or acts as an elastic element in direct contact with a surface, protecting surrounding structures and improving machinery lifespan.
A. Yes. The same geometry is available in 45 Shore A for greater deflection and softer isolation (SKU 2510MFB20-45) and 70 Shore A for higher load restraint with reduced movement (SKU 2510MFB20-70).
A. Yes. The range includes sizes such as 0808MFB06, 10030MFB41, 10040MFB44, 10050MFB41, 10055MFB44, and 100100MFB44 to cover different load and dimensional requirements.
A. Yes. Stainless steel metal components and oil-resistant or high-temperature rubber compounds are available on request, along with additional and custom sizes.
