Product Number: 4040MFB23-60
Variations

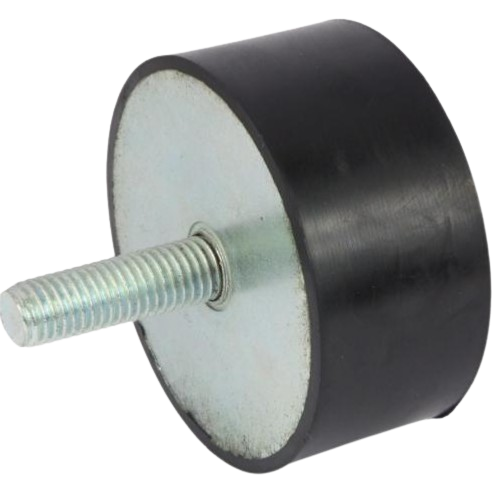

Balancing vibration isolation with dependable load support, the 4040MFB23-60 is a 40 x 40 mm male flat buffer fitted with an M8 x 23 mm threaded stud and rated to a maximum load of 145.5 kg with a deflection of 10.0 mm. The 60 Shore A hardness grade positions this buffer squarely in the general-purpose band, making it well suited to installations that demand a measured compromise between energy absorption and positional control across a broad range of operating conditions. Constructed using rubber-to-metal bonded technology, the flat buffer design provides low-cost shock and vibration absorption and installs easily against any surface in direct contact. The medium hardness rubber absorbs and dissipates impact energy efficiently, reducing transmitted force from secondary moving components while still accommodating the moderate deflection that general-purpose machinery mounting requires. The bonded construction ensures consistent performance and long service life without mechanical fastener complexity. With a 60 Shore A compound, this buffer serves the broad middle ground of machinery mounting applications across construction equipment, agricultural machinery, industrial plant and commercial vehicles. It is equally at home as a bump stop preventing metal-to-metal contact, or as an elastic mounting element within elevator and power-generation installations, where the balance of support and compliance under moderate loads is more critical than maximum deflection or maximum rigidity.
Flat buffers are an economical and simple solution to absorbing shock and vibration. They are used mainly in compression and are available with various configurations. Additional sizes, rubber compounds and stainless-steel metals are all available on request.
Typical applications include:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.

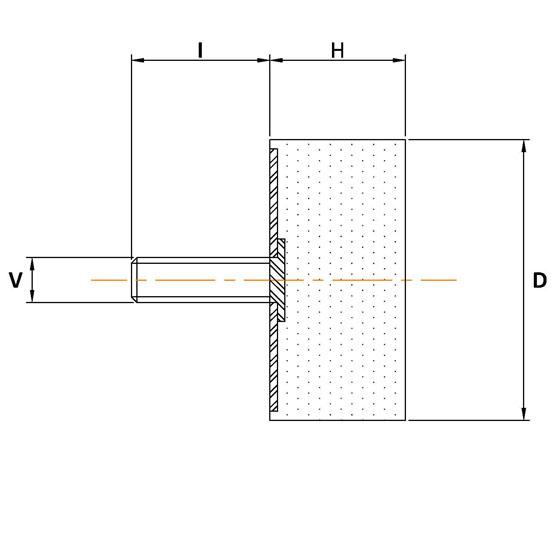

| Rubber Mount Dimension (D) | 40mm |
|---|---|
| Height (H) | 40mm |
| Thread Size (V) | M8 |
| Bolt Length (I) | 23mm |
| Max Load (Kg) | 145.5 |
| Deflection (mm) | 10 |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: £5.49
Delivery Estimate: 3 to 5 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
|||||
| Technical Specification | |||||
|---|---|---|---|---|---|
| PRODUCT NUMBER | 3022MFB20-70 | 4040FFB08-60 | 2518MFB18-70 | 2515MFB18-70 | 2515FFB06-70 |
| Type | Flat Buffer | Flat Buffer | Flat Buffer | Flat Buffer | Flat Buffer |
| Length | 22mm | 40mm | 18mm | 15mm | 15mm |
| Size | 30x22mm | 40x40mm | 25x18mm | 25x15mm | 25x15mm |
| Deflection | 5.5 | 10 | 4.25 | 3.75 | 3.75 |
| Diameter | 30mm | 40mm | 25mm | 25mm | 25mm |
| Diameter Range | 26-50mm | 26-50mm | 11-25mm | 11-25mm | 11-25mm |
| Length Range | 11-25mm | 26-50mm | 11-25mm | 11-25mm | 11-25mm |
| Shore Hardness | 70 | 60 | 70 | 70 | 70 |
| Thread | M8 | M8 | M6 | M6 | M6 |
| Show More | |||||
A. The buffer measures 40 mm diameter by 40 mm height, with an M8 x 23 mm threaded stud. It has a maximum load rating of 145.5 kg and a deflection of 10.0 mm.
A. This buffer is 60 Shore A, a medium hardness grade. According to the source data, medium hardness provides a balance between vibration isolation and load support, making it suitable for general-purpose machinery mounting where neither maximum deflection nor maximum rigidity is required.
A. The buffer uses rubber-to-metal bonded construction to absorb and dissipate energy from impact shocks, reducing the force transmitted from secondary moving components and cushioning machinery against vibration in shear, compression or combined loading.
A. The male flat buffer family is designed for construction equipment, industrial machinery, agricultural equipment, elevators and commercial vehicles. Industries served include construction and off-highway, agriculture, power generation, marine, railway and mass transit, automotive, and military and defence.
A. Yes. The 40 x 40 mm M8 family includes a 45 Shore A grade (4040MFB23-45) for greater deflection at lower loads and a 70 Shore A grade (4040MFB23-70) for higher-load duties. Additional sizes in the range include 0808MFB06, 100100MFB44, 10030MFB41, 10040MFB44, 10050MFB41 and 10055MFB44.
A. Yes. Stainless steel metalwork and oil-resistant or high-temperature rubber compounds are available on request, as are additional and custom sizes.
