Product Number: 10030MFB41-60

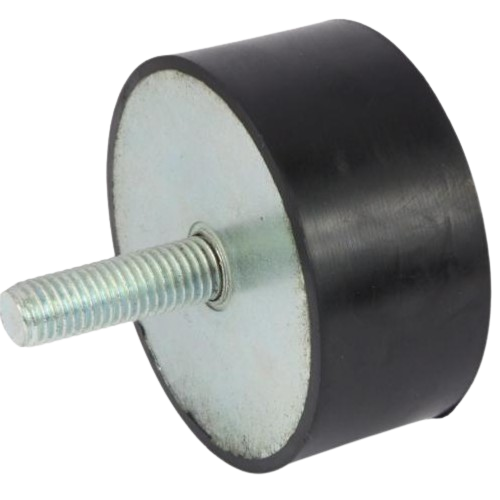

With a rated maximum load of 3,648 kg with a controlled deflection of 7.50 mm, this 100 x 30 mm Male Flat Buffer with M16 x 41 thread sits at the heavier end of the flat buffer range, offering the balanced combination of vibration isolation and structural support that a 60 Shore A medium-grade rubber delivers. Designed for machinery subject to sustained loading or moderate impact shock, it provides the broad middle ground between compliant isolation and firm resistance, absorbing and dissipating energy without excessive movement under load. Rubber-to-metal bonded construction gives this buffer its mechanical integrity, enabling it to perform reliably whether loaded in shear, compression, or a combination of both. The male threaded stud allows straightforward installation direct to a machine frame or mounting plate, keeping fitment time low. Medium-hardness rubber at 60 Shore A carries higher loads than softer grades while retaining enough deflection to attenuate vibration from rotating or reciprocating machinery effectively. The 100 x 30 mm footprint and substantial M16 thread make this buffer well suited to heavier industrial machinery, commercial vehicles, power generation equipment, and agricultural plant where impact shocks from external moving components must be cushioned without sacrificing positional control. It serves equally well as an elastic element in direct surface contact or as a secondary stop absorbing residual shock. Industries served include construction and off-highway, marine, railway and mass transit, and military and defence applications.
Flat buffers are an economical and simple solution to absorbing shock and vibration. They are used mainly in compression and are available with various configurations. Additional sizes, rubber compounds and stainless-steel metals are all available on request.
Typical applications include:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.

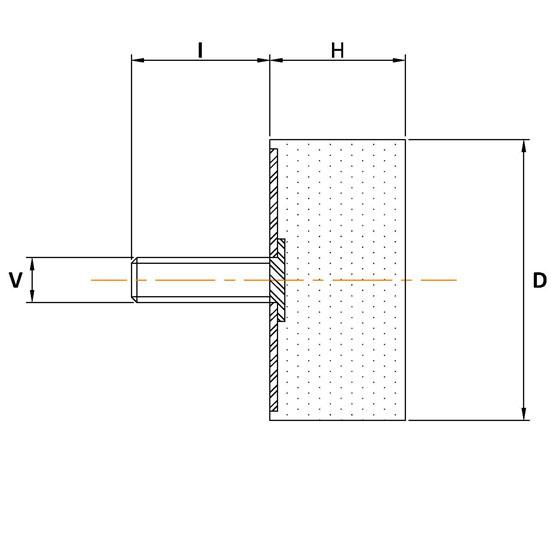

| Rubber Mount Dimension (D) | 100mm |
|---|---|
| Height (H) | 30mm |
| Thread Size (V) | M16 |
| Bolt Length (I) | 41mm |
| Max Load (Kg) | 3648 |
| Deflection (mm) | 7.5 |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: £5.49
Delivery Estimate: 3 to 5 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
|||||
| Technical Specification | |||||
|---|---|---|---|---|---|
| PRODUCT NUMBER | 10040MFB44-70 | 10050MFB41-70 | 10030FFB16-60 | 10040FFB16-70 | 10050FFB16-70 |
| Type | Flat Buffer | Flat Buffer | Flat Buffer | Flat Buffer | Flat Buffer |
| Length | 40mm | 50mm | 30mm | 40mm | 50mm |
| Size | 100x40mm | 100x50mm | 100x30mm | 100x40mm | 100x50mm |
| Deflection | 10 | 12.5 | 7.5 | 10 | 12.5 |
| Diameter | 100mm | 100mm | 100mm | 100mm | 100mm |
| Diameter Range | 51-100mm | 51-100mm | 51-100mm | 51-100mm | 51-100mm |
| Length Range | 26-50mm | 26-50mm | 26-50mm | 26-50mm | 26-50mm |
| Shore Hardness | 70 | 70 | 60 | 70 | 70 |
| Thread | M16 | M16 | M16 | M16 | M16 |
| Show More | |||||
A. This buffer has a maximum load rating of 3,648 kg and a deflection of 7.50 mm, making it suited to heavy-duty industrial mounting and shock-absorption duties.
A. At 60 Shore A, this is a medium-hardness grade that balances vibration isolation with load-bearing support. It carries higher loads than softer grades while retaining sufficient deflection to attenuate vibration from rotating or reciprocating machinery effectively — the broad middle ground between a compliant isolating mount and a firm restraint.
A. The buffer measures 100 mm diameter by 30 mm height (D x H), with a male threaded stud of M16 x 41 mm (d x L).
A. Suitable applications include industrial machinery, commercial vehicles, power generation equipment, agricultural plant, construction and off-highway equipment, marine installations, and railway and mass transit, as well as military and defence contexts where impact shocks from external moving components need to be cushioned.
A. The rubber-to-metal bonded construction allows the buffer to work in shear, compression, or a combination of both, absorbing and dissipating energy from impact shocks and vibration whilst protecting surrounding structures and improving operator comfort.
A. The same 100 x 30 mm geometry is also available in 45 Shore A (10030MFB41-45) and 70 Shore A (10030MFB41-70). Related Male Flat Buffer variants include 0808MFB06, 100100MFB44, 10040MFB44, 10050MFB41, 10055MFB44, and 10060MFB44. Custom sizes, stainless steel fittings, and oil-resistant or high-temperature rubber compounds are also available on request.
