Product Number: 10050MFB41-60

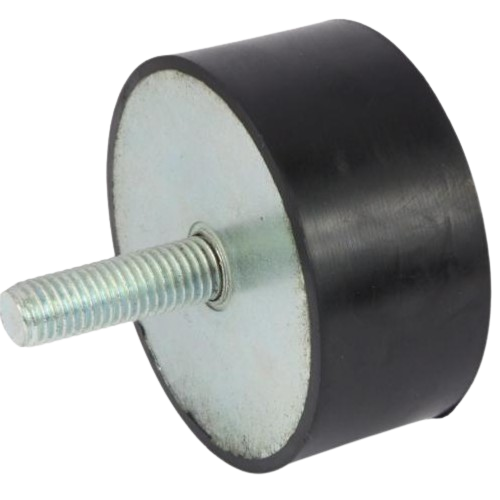

Spanning 100 mm in diameter and 50 mm in height with an M16 x 41 mm male stud, the 10050MFB41-60 is the largest buffer in the Male Flat range and is engineered to balance vibration isolation with structural support across the broad middle ground of general industrial machinery mounting. At 60 Shore A, this medium-hardness grade accommodates a maximum load of 2,022 kg with a controlled deflection of 12.50 mm, figures that position it squarely for demanding, continuous-duty applications where equipment must remain firmly supported yet protected from the energy of recurrent shock and vibration. Rubber-to-metal bonded construction is central to the 10050MFB41-60's performance: the vulcanised rubber element absorbs and dissipates impact energy whilst the M16 stud provides a secure, direct fastening interface to the mounting surface. The medium 60 Shore A hardness delivers the equilibrium that is often required in high-throughput industrial settings, sufficiently compliant to attenuate vibration and protect surrounding structures, yet rigid enough under the full 2,022 kg working load to limit unwanted movement. Loads may be applied in compression, shear or a combination of both. This buffer is well suited to power generation plant, agricultural machinery, commercial vehicles and construction equipment where frame-mounted components must absorb repeated impacts from external moving parts or act as elastic contact elements against mating surfaces. Its scale and load capacity also make it appropriate for elevator and railway applications where dimensional envelope permits.
Flat buffers are an economical and simple solution to absorbing shock and vibration. They are used mainly in compression and are available with various configurations. Additional sizes, rubber compounds and stainless-steel metals are all available on request.
Typical applications include:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.

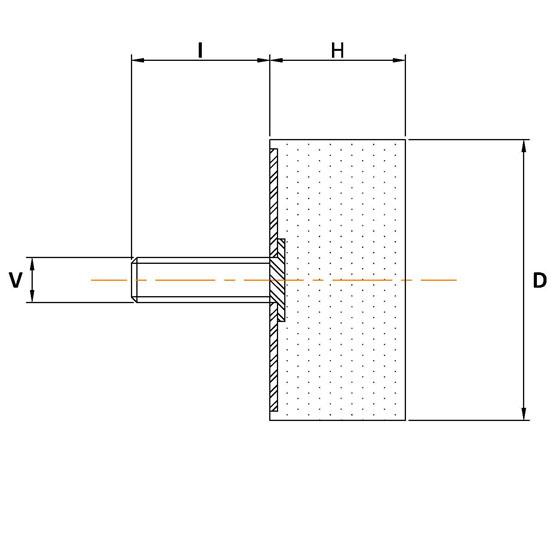

| Rubber Mount Dimension (D) | 100mm |
|---|---|
| Height (H) | 50mm |
| Thread Size (V) | M16 |
| Bolt Length (I) | 41mm |
| Max Load (Kg) | 2022 |
| Deflection (mm) | 12.5 |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: £3.99
Delivery Estimate: 3 to 5 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
|||||
| Technical Specification | |||||
|---|---|---|---|---|---|
| PRODUCT NUMBER | 10055MFB44-60 | 8030MFB35-70 | 10050FFB16-60 | 10055FFB16-60 | 7525FFB12-70 |
| Type | Flat Buffer | Flat Buffer | Flat Buffer | Flat Buffer | Flat Buffer |
| Length | 55mm | 30mm | 50mm | 55mm | 25mm |
| Size | 100x55mm | 80x30mm | 100x50mm | 100x55mm | 75x25mm |
| Deflection | 13.75 | 7.5 | 12.5 | 13.75 | 6.25 |
| Diameter | 100mm | 80mm | 100mm | 100mm | 75mm |
| Diameter Range | 51-100mm | 51-100mm | 51-100mm | 51-100mm | 51-100mm |
| Length Range | 51-100mm | 26-50mm | 26-50mm | 51-100mm | 11-25mm |
| Shore Hardness | 60 | 70 | 60 | 60 | 70 |
| Thread | M16 | M14 | M16 | M16 | M12 |
| Show More | |||||
A. The buffer measures 100 mm diameter by 50 mm height, with an M16 male stud of 41 mm length.
A. At 60 Shore A (medium hardness), the 10050MFB41-60 carries a maximum load of 2,022 kg with a deflection of 12.50 mm, making it suitable for heavy-duty continuous industrial mounting.
A. The 60 Shore A medium grade delivers a balance between vibration isolation and firm load support. It provides controlled deflection under high load — more movement resistance than the 45 Shore A grade but greater compliance than the 70 Shore A grade — suiting general-purpose machinery mounting where both isolation and structural stability are required.
A. This buffer is used across power generation, agricultural machinery, commercial vehicles, construction equipment, elevators, and railway and marine applications where components must cushion against repeated impact shocks or serve as elastic contact elements against a mating surface.
A. The vulcanised rubber-to-metal bond allows the buffer to absorb and dissipate energy in compression, shear or a combination of both loading directions, while the M16 stud ensures secure, direct fastening. This construction improves machinery lifespan, protects surrounding structures and improves operator comfort.
A. Yes. This geometry is also available in 45 Shore A (10050MFB41-45) for greater deflection and isolation, and 70 Shore A (10050MFB41-70) for higher load with less movement. Additional sizes in the Male Flat Buffer family include 0808MFB06, 10030MFB41, 10040MFB44, 10055MFB44, 10060MFB44 and 100100MFB44.
A. Yes — stainless steel metalwork and oil-resistant or high-temperature rubber compounds, as well as additional and custom sizes, are available on request.
