Product Number: 5020MFB28-60

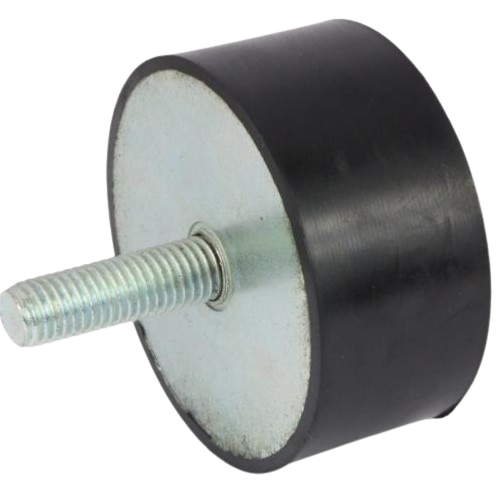

Carrying a maximum load of 511 kg and limiting deflection to 5.0 mm, the 5020MFB28-60 is a 50 x 20 mm Male Flat Buffer with an M10 x 28 stud, vulcanised in 60 Shore A natural rubber, a medium hardness that delivers the balanced combination of load support and vibration isolation demanded across the broad middle ground of industrial and commercial machinery mounting. At 60 Shore A, this buffer sits at the midpoint of the range where neither maximum compliance nor maximum stiffness takes priority. The rubber-to-metal bonded construction allows the element to absorb and dissipate energy effectively whether loaded in shear, compression, or a combination of both. That versatility makes it well-suited to plant and process machinery, commercial vehicle bodywork, power generation equipment, and agricultural machinery, applications where moderate dynamic loading is constant and reliable energy absorption is essential to protecting surrounding structures and improving operator comfort. The flat buffer geometry keeps installation straightforward: the single male stud threads directly into a tapped hole or accepts a standard nut, with no secondary hardware required. Softer grades within the 5020MFB28 family offer greater deflection and superior isolation under lighter loads, whilst the 70 Shore A variant is available where higher stiffness and maximum load restraint are the priority. Custom stainless-steel hardware and oil-resistant or high-temperature rubber compounds are available on request for demanding service environments. This buffer is part of a wider Male Flat Buffer range.
Flat buffers are an economical and simple solution to absorbing shock and vibration. They are used mainly in compression and are available with various configurations. Additional sizes, rubber compounds and stainless-steel metals are all available on request.
Typical applications include:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.

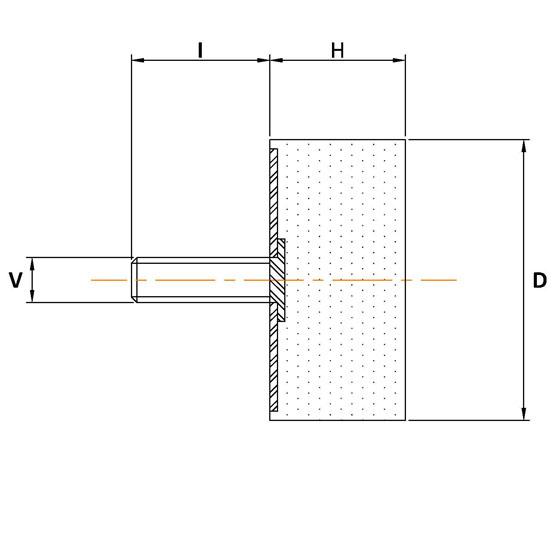

| Rubber Mount Dimension (D) | 50mm |
|---|---|
| Height (H) | 20mm |
| Thread Size (V) | M10 |
| Bolt Length (I) | 28mm |
| Max Load (Kg) | 511 |
| Deflection (mm) | 5 |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: £3.99
Delivery Estimate: 3 to 5 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
|||||
| Technical Specification | |||||
|---|---|---|---|---|---|
| PRODUCT NUMBER | 5021MFB25-60 | 6025MFB25-45 | 5030FFB12-70 | 6045FFB12-60 | 7040FFB10-45 |
| Type | Flat Buffer | Flat Buffer | Flat Buffer | Flat Buffer | Flat Buffer |
| Length | 21mm | 25mm | 30mm | 45mm | 40mm |
| Size | 50x21mm | 60x25mm | 50x30mm | 60x45mm | 70x40mm |
| Deflection | 5.3 | 6.3 | 7.5 | 11.25 | 10 |
| Diameter | 50mm | 60mm | 50mm | 60mm | 70mm |
| Diameter Range | 26-50mm | 51-100mm | 26-50mm | 51-100mm | 51-100mm |
| Length Range | 11-25mm | 11-25mm | 26-50mm | 26-50mm | 26-50mm |
| Shore Hardness | 60 | 45 | 70 | 60 | 45 |
| Thread | M10 | M10 | M12 | M12 | M10 |
| Show More | |||||
A. The 5020MFB28-60 is rated to a maximum load of 511 kg and a deflection of 5.0 mm, making it suited to medium-to-heavy duty mounting applications where controlled movement under load is required.
A. A 60 Shore A rating places this buffer at the mid-range of the hardness scale. It balances vibration isolation with load-carrying capacity, providing adequate compliance to absorb and dissipate energy without the high deflection of softer grades or the minimal movement of firmer ones. It is well-suited to general-purpose machinery mounting across construction, agricultural, commercial vehicle, and power generation applications.
A. The 5020MFB28-60 uses an M10 x 28 mm male stud, which threads directly into a tapped hole or accepts a standard M10 nut. The overall buffer dimensions are 50 mm diameter by 20 mm height.
A. Male Flat Buffers in this range are used across construction and off-highway equipment, agricultural machinery, industrial plant, commercial vehicles, power generation, marine, and railway applications, as well as in elevators and military and defence equipment.
A. The rubber-to-metal bonded construction allows the element to absorb and dissipate energy when loaded in shear, compression, or a combination of both. This cushions machinery against impact shocks and reduces transmitted vibration to protect surrounding structures and improve operator comfort.
A. Yes — the 50 x 20 mm M10 x 28 Male Flat Buffer is also available in 45 Shore A (5020MFB28-45) for greater deflection and superior isolation under lighter loads, and in 70 Shore A (5020MFB28-70) where higher stiffness and maximum load restraint are required.
A. Yes — stainless steel metal components and oil-resistant or high-temperature rubber compounds are available on request, as are additional and custom sizes.
