Product Number: 2015MCB10-60
Balancing isolation with support, the 2015MCB10-60 is a rubber-to-metal bonded conical buffer measuring 20 mm diameter by 15 mm height, fitted with an M6 x 10 male stud and rated to a maximum load of 19.7 kg with a controlled deflection of 3.75 mm. At 60 Shore A hardness, this mid-grade buffer sits at the centre of the conical buffer range, offering a practical equilibrium between vibration isolation and structural support that suits a broad spread of general-purpose industrial and commercial applications. Rubber-to-metal bonded construction gives the buffer reliable energy absorption and dissipation, cushioning machinery against impact shocks from moving components whilst protecting surrounding structures and improving operator comfort. The 60 Shore A compound delivers measured compliance, sufficient movement to absorb vibration effectively, yet firm enough to maintain positional control under moderate operational loads. Like all grades in this family, the buffer may be loaded in shear, compression, or a combination of both. With a 20 x 15 mm footprint and an M6 stud, the 2015MCB10-60 is well suited to general machinery mounting, commercial vehicles, agricultural equipment, construction and off-highway plant, elevators, and light industrial installations where a versatile, mid-range hardness grade is the practical choice. The balance of deflection and load capacity makes this grade appropriate across the construction and off-highway, agricultural, marine, railway and mass transit, power generation, and automotive sectors. Custom stainless steel metalwork and oil-resistant or high-temperature rubber compounds are available on request. This buffer is part of a wider conical buffer range.
The AV Industrial Products range of Conical Buffers (also known as Parabolic Buffers) are the ideal product for absorbing high levels of vibration and shock. The innovative design of these mountings provides a progressive stiffness, so that under extreme levels of deformation, the energy of the shock is absorbed gradually, and the equipment is protected.
The Parabolic Dampers comes in various configurations, additional sizes, rubber compounds and stainless-steel metals are all available on request.
Typical applications include:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.

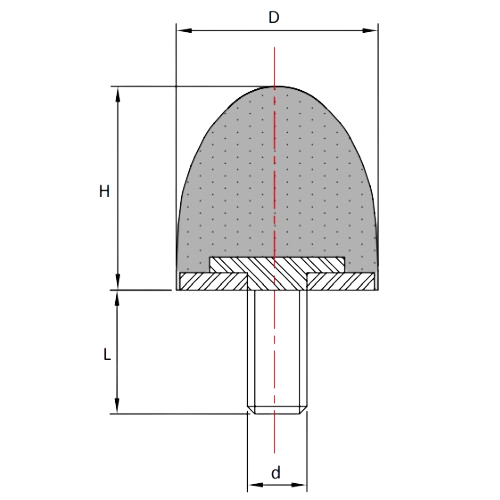

| Rubber Body Dimension (D) | 20mm |
|---|---|
| Height (H) | 15mm |
| Thread Size (V) | M6 |
| Bolt Length (I) | 10mm |
| Max Load (kg) | 19.7 |
| Deflection (mm) | 3.75mm |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: £5.49
Delivery Estimate: 3 to 5 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
|||||
| Technical Specification | |||||
|---|---|---|---|---|---|
| PRODUCT NUMBER | 2015MCB10-45 | 2015MCB10-70 | 2516MCB18-45 | 2024MCB18-70 | 3540MCB23-45 |
| Type | Buffer | Buffer | Buffer | Buffer | Buffer |
| Length | 15mm | 15mm | 16mm | 24mm | 40mm |
| Size | 20x15mm | 20x15mm | 25x16mm | 20x24mm | 35x40mm |
| Deflection | 3.75 | 3.75 | 4 | 6.25 | 10 |
| Diameter | 20mm | 20mm | 25mm | 20mm | 35mm |
| Diameter Range | 11-25mm | 11-25mm | 11-25mm | 11-25mm | 26-50mm |
| Length Range | 11-25mm | 11-25mm | 11-25mm | 11-25mm | 26-50mm |
| Shore Hardness | 45 | 70 | 45 | 70 | 45 |
| Thread | M6 | M6 | M6 | M6 | M8 |
| Show More | |||||
A. The 2015MCB10-60 measures 20 mm diameter by 15 mm height, with an M6 x 10 male stud. It has a maximum load rating of 19.7 kg and a deflection of 3.75 mm.
A. At 60 Shore A, this is the medium hardness grade in the range. It provides a balance of vibration isolation and load support, offering measurable deflection for effective energy absorption whilst maintaining positional control under moderate loads. Softer grades (such as 45 Shore A) give greater deflection and better isolation at lower loads; harder grades (such as 70 Shore A) carry higher loads with less movement.
A. This buffer is suited to general-purpose machinery mounting across a broad range of industries, including construction and off-highway plant, agricultural equipment, commercial vehicles, elevators, marine, railway and mass transit, power generation, and automotive applications. It functions as a bump stop or primary/secondary suspension buffer for industrial vehicles.
A. The rubber-to-metal bonded construction works by absorbing and dissipating energy from impact shocks or vibration transmitted by external moving components. The buffer may be loaded in shear, compression, or a combination of both.
A. Yes. The same 20 x 15 mm M6 geometry is available in 45 Shore A (2015MCB10-45) and 70 Shore A (2015MCB10-70). Larger conical buffer variants are also available in the range, including the 2024MCB18 family. Select the hardness grade according to your load, deflection, and isolation requirements.
A. Yes. Stainless steel metalwork and oil-resistant or high-temperature rubber compounds, as well as additional and custom sizes, are available on request.
