Product Number: PR757040-60

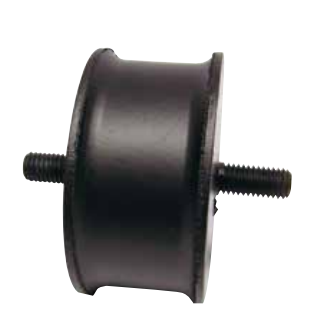

Balancing structural support with effective vibration isolation, the PR757040-60 is a 75mm diameter, 40mm height profiled bobbin mount rated to a maximum load of 258 kg and bonded to a medium 60 Shore A natural rubber element. This mid-range hardness grade occupies the broad general-machinery band, delivering the equilibrium between deflection compliance and load-carrying capacity that makes it the most versatile choice across the profiled bobbin range for moderate-duty applications. The rubber-to-metal bonded construction permits loading in shear, compression, or a combination of both, giving engineers flexibility in how the mount is oriented within a machine frame. At 60 Shore A, the rubber resists movement sufficiently to restrain machinery under moderate dynamic loads while still absorbing transmitted vibration before it reaches surrounding structures or operators. The dual M12 thread configuration, m12x37 stud on the primary face and M12 thread on the secondary face. Suits direct bolt-in installation without adaptor hardware in the majority of standard mounting configurations. The 258 kg maximum load capacity positions this mount squarely for mainstream industrial and commercial plant: diesel generator sets operating under continuous load cycles, industrial machinery and equipment subject to sustained running vibration, exhaust mounting applications, and instrument support frames where moderate isolation is required without excessive deflection. The profiled geometry distributes compressive stress evenly across the bonded rubber face, supporting machinery lifespan and protecting adjacent structures from fatigue damage over extended service.
About PartsForMachines:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Hardness (Shore A) | 60 |
|---|---|
| Diameter / thread d1 (mm) | 75 |
| Diameter / thread d2 (mm) | 70 |
| Overall height H (mm) | 40 |
| Type d1 | M12x37 |
| 1 d1 | M12x37 |
| 2 d2 | M12 |
| Type d2 | M12 |
| 3 d2 | M12 |
| Max load (kg) | 258 |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: £3.99
Delivery Estimate: 3 to 5 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
|||||
| Technical Specification | |||||
|---|---|---|---|---|---|
| PRODUCT NUMBER | 7040MM25-60 | 7040MM37-60 | 10060MM44-45 | 6035FF12-60 | 6040MF25-70 |
| Type | Bobbin Mount | Bobbin Mount | Bobbin Mount | Bobbin Mount | Bobbin Mount |
| Length | 40mm | 40mm | 60mm | 35mm | 40mm |
| Size | 70x40mm | 70x40mm | 100x60mm | 60x35mm | 60x40mm |
| Deflection | 3.4 | 3.4 | 5.2 | 3.1 | 3.5 |
| Diameter | 70mm | 70mm | 100mm | 60mm | 60mm |
| Diameter Range | 51-100mm | 51-100mm | 51-100mm | 51-100mm | 51-100mm |
| Length Range | 26-50mm | 26-50mm | 51-100mm | 26-50mm | 26-50mm |
| Shore Hardness | 60 | 60 | 45 | 60 | 70 |
| Thread | M10 | M12 | M16 | M12 | M10 |
| Show More | |||||
A. The PR757040-60 has an outer diameter (D1) of 75 mm, a secondary diameter (D2) of 70 mm, and an overall height (H) of 40 mm. The primary thread is M12x37 and the secondary thread is M12.
A. The PR757040-60 is rated to a maximum load of 258 kg per mounting.
A. The rubber-to-metal bonded construction allows the mount to be loaded in shear, compression, or a combination of both, providing flexibility in installation orientation.
A. At 60 Shore A, this mount is suited to the broad mid-range of general industrial and commercial machinery, including diesel generator sets, industrial machinery and equipment subject to continuous running vibration, exhaust mountings, and instrument support frames operating at moderate loads.
A. The 60 Shore A medium grade balances isolation performance with load support, making it the general-purpose choice. The 45 Shore A grade (PR757040-45) offers greater deflection and improved isolation at lower loads, while the 70 Shore A grade (PR757040-70) carries higher loads with less movement for shock-dominant or heavy-duty installations.
A. Yes — stainless steel metalwork and oil-resistant or high-temperature rubber compounds are available on request for applications in aggressive or elevated-temperature environments.
A. In-stock orders placed before 14:30 Monday to Friday are usually dispatched the same day.
A. We accept returns within 30 days of purchase for items that are unused, undamaged, and in their original packaging. Returns are available only for UK-delivered orders and must include proof of purchase. Before returning an item, please contact us at [email protected] to obtain a Return Merchandise Number (RMN).
