Product Number: PR403528-60
Variations
Sitting at the lighter end of the 40mm profiled bobbin range, PR403528-60 is a male-male rubber-to-metal bonded anti-vibration mount rated to a maximum load of 40 kg and supplied in a 60 Shore A medium rubber compound. Its balanced hardness grade makes it well suited to compact or weight-sensitive installations where controlled deflection and steady vibration isolation must be maintained in equal measure, particularly where softer grades would allow too much movement and harder grades would sacrifice isolation performance. The mount measures 40 mm across the outer diameter, 35 mm at the inner profile, and 28 mm in height. Both threaded connections are M10, with the top stud offered in either an M10x16 or M10x20 configuration and the lower thread in M10. Rubber-to-metal bonded construction provides a reliable mechanical connection under dynamic loading, and the profiled geometry allows the mount to be loaded in shear, compression, or a combination of the two, giving installation engineers practical flexibility without compromising structural integrity. At the 60 Shore A grade, this mount occupies the broad middle ground between isolation sensitivity and load-carrying capability, making it a dependable choice for instruments, air-conditioning units, and lighter industrial machinery where moderate vibration attenuation and consistent support are both required. It is equally applicable to generator sets, exhaust mountings, and agricultural or off-highway equipment operating within its rated load envelope. The family source covers a weight range from approximately 1 kg up to 2,000 kg per mounting across the full bobbin range.
About PartsForMachines:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Hardness (Shore A) | 60 |
|---|---|
| Diameter / thread d1 (mm) | 40 |
| Diameter / thread d2 (mm) | 35 |
| Overall height H (mm) | 28 |
| Type d1 | M10x16 |
| 1 d1 | M10x20 |
| 2 d2 | M10 |
| Type d2 | M10 |
| 3 d2 | M10 |
| Max load (kg) | 40 |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: £3.99
Delivery Estimate: 3 to 5 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
|||||
| Technical Specification | |||||
|---|---|---|---|---|---|

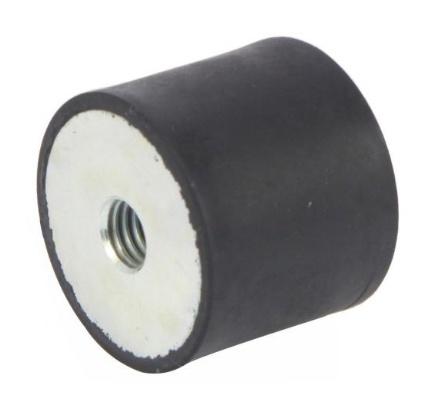

| PRODUCT NUMBER | 2520MF20-70 | 3020FF08-70 | 3025MM20-70 | 3030FF08-70 | 5050MM25-45 |
| Type | Bobbin Mount | Bobbin Mount | Bobbin Mount | Bobbin Mount | Bobbin Mount |
| Length | 20mm | 20mm | 25mm | 30mm | 50mm |
| Size | 25x20mm | 30x20mm | 30x25mm | 30x30mm | 50x50mm |
| Deflection | 1.6 | 1.2 | 2.1 | 2.6 | 4.5 |
| Diameter | 25mm | 30mm | 30mm | 30mm | 50mm |
| Diameter Range | 11-25mm | 26-50mm | 26-50mm | 26-50mm | 26-50mm |
| Length Range | 11-25mm | 11-25mm | 11-25mm | 26-50mm | 26-50mm |
| Shore Hardness | 70 | 70 | 70 | 70 | 45 |
| Thread | M8 | M8 | M8 | M8 | M10 |
| Show More | |||||
A. The PR403528-60 has a maximum load rating of 40 kg per mounting.
A. The outer diameter (D1) is 40 mm, the inner profile diameter (D2) is 35 mm, and the height (H) is 28 mm. Both connections are M10: the top stud is available in M10x16 or M10x20 configurations and the lower thread is M10.
A. This mount uses a 60 Shore A medium rubber compound. At this hardness grade it balances vibration isolation with structural support, making it suitable for the broad middle ground of machinery mounting where neither maximum deflection nor maximum stiffness is required.
A. The mount may be loaded in shear, compression, or a combination of both, giving installation engineers flexibility to suit different mounting arrangements.
A. Applications from the product family include air-conditioning units, exhaust mountings, diesel engines, generator sets, instruments, and industrial machinery. Industries served include construction and off-highway, agriculture, power generation, marine, railway and mass transit, automotive, and military and defence.
A. Yes. The same 40mm profiled profile is available in 45 Shore A (PR403528-45) and 70 Shore A (PR403528-70). The wider profiled bobbin family also includes PR262222-60, PR464025-60, PR1009555, PR1009575, PR757040, and PR262222 for differing load envelopes and installation geometries.
A. Yes — stainless steel metalwork and oil-resistant or high-temperature rubber compounds are available on request, as are additional and custom sizes.
