Product Number: PR1009575-45

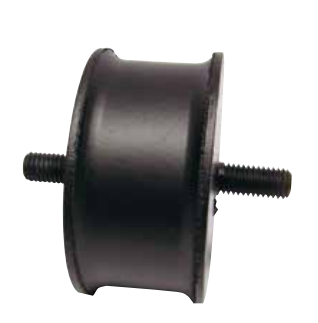

Where maximum vibration isolation takes priority over restraint, the 100mm profiled bobbin mount PR1009575-45 delivers at the softer end of the Shore A range. Rated to a maximum load of 215 kg and built to a 100 mm outer diameter with a 95 mm secondary diameter and 75 mm height, this 45 Shore A mount is engineered to yield the greatest deflection under load, absorbing lower-frequency disturbances and protecting sensitive equipment from the vibration and shock that harder grades would transmit rather than isolate. Rubber-to-metal bonded construction gives the mount reliable integrity across shear, compression, and combined loading orientations, while the male-male thread configuration (M16 x 45 on the primary stud, M16 on the secondary) provides straightforward bolt-in installation without adapters. The softer rubber compound is the correct selection when protecting instruments, precision equipment, or lighter machinery where operator comfort and structural protection of surrounding assemblies matter most. Applications well suited to this grade include air-conditioning units, instrumentation panels, lighter diesel engines, generator sets, and industrial machinery where isolation efficiency at lower loads is the governing criterion. The mount's compliance at 45 Shore A means the rubber works actively to attenuate vibration rather than merely dampen it, improving machinery lifespan and reducing stress on connected structures across sectors including power generation, marine, agricultural, and automotive. For higher load duties or reduced deflection requirements, this mount is available in 60 Shore A (PR1009575-60) and 70 Shore A (PR1009575-70).
About PartsForMachines:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Hardness (Shore A) | 45 |
|---|---|
| Diameter / thread d1 (mm) | 100 |
| Diameter / thread d2 (mm) | 95 |
| Overall height H (mm) | 75 |
| Type d1 | M16x45 |
| 1 d1 | M16x45 |
| 2 d2 | M16 |
| Type d2 | M16 |
| 3 d2 | M16 |
| Max load (kg) | 215 |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: £3.99
Delivery Estimate: 3 to 5 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
Anti-Vibration Mount - Male - Female Bobbin Range, M12, Max Load 217Kg - 7050MF37-60
£15.37
£15.07
2% OFF
|
||||
| Technical Specification | |||||
|---|---|---|---|---|---|
| PRODUCT NUMBER | 10075MM44-45 | 6050FF12-70 | 6540MF37-60 | 7060MF37-60 | 7050MF37-60 |
| Type | Bobbin Mount | Bobbin Mount | Bobbin Mount | Bobbin Mount | Bobbin Mount |
| Length | 75mm | 50mm | 40mm | 60mm | |
| Height | 50mm | ||||
| Size | 100x75mm | 60x50mm | 65x40mm | 70x60mm | 70x50mm |
| Deflection | 6.7 | 4.5 | 3.5 | 5.4 | 4.4 |
| Diameter | 100mm | 60mm | 65mm | 70mm | |
| Diameter Range | 51-100mm | 51-100mm | 51-100mm | 51-100mm | |
| Length Range | 51-100mm | 26-50mm | 26-50mm | 51-100mm | |
| Mount Dimension | 70mm | ||||
| Shore Hardness | 45 | 70 | 60 | 60 | |
| Thread | M16 | M12 | M12 | M12 | M12 |
| Show More | |||||
A. The PR1009575-45 is rated to a maximum load of 215 kg per mounting.
A. The mount has an outer diameter (D1) of 100 mm, a secondary diameter (D2) of 95 mm, and a height (H) of 75 mm.
A. The primary stud is M16 x 45 and the secondary connection is M16, in a male-male bobbin configuration.
A. The 45 Shore A grade provides greater deflection under load than harder grades, which means better vibration isolation — particularly at lower frequencies. It is the correct choice when protecting sensitive equipment or lighter machinery where isolation efficiency matters more than load restraint.
A. The mount may be loaded in shear, compression, or a combination of the two.
A. Suitable applications include air-conditioning units, exhaust mountings, diesel engines, generator sets, instruments, and industrial machinery. Industries served include power generation, marine, agricultural, automotive, construction and off-highway, and railway and mass transit.
A. Yes — the same 100 mm M16 profiled bobbin is available in 60 Shore A (PR1009575-60) and 70 Shore A (PR1009575-70) for higher load duties or where less deflection is required.
A. Yes — stainless steel metalwork, oil-resistant rubbers, high-temperature rubbers, and custom sizes are available on request.
