Product Number: 7050MM37-60
Variations

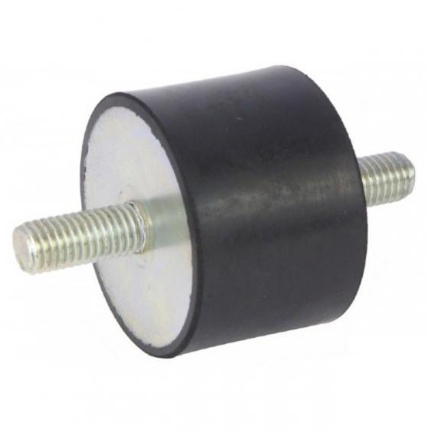

Carrying a maximum load of 211.0 kg with a controlled deflection of 4.4 mm, the 7050MM37-60 is a 70 x 50 mm male-male bobbin mount with M12 x 37 mm threads and a 60 Shore A rubber hardness, a medium-grade specification that delivers the broad middle ground of vibration control: meaningful isolation without sacrificing load-bearing stability. Where softer grades prioritise movement and harder grades prioritise restraint, this 60 Shore A mount balances both, making it suitable across the widest practical range of plant and equipment mounting requirements. Rubber-to-metal bonded construction gives the mount structural integrity under combined loading modes, shear, compression, or a combination of both. While the medium hardness absorbs vibration energy effectively enough to protect surrounding structures and improve operator comfort. The thread configuration is male-male (Type A / Type 1), ready for direct installation between equipment and supporting framework without adapters. At 70 mm diameter and 50 mm height, the 7050MM37-60 is positioned in the upper range of this bobbin family. With a 211.0 kg load rating it is suited to heavier equipment where reliable vibration attenuation and shock absorption are required alongside genuine load support: diesel engines, generator sets, air-conditioning units, industrial machinery, and exhaust mountings in sectors including power generation, construction and off-highway, marine, agriculture, and automotive applications. This mount is part of a wider male-male bobbin range. Softer and firmer Shore grades of the same 70 x 50 mm body are available as 7050MM37-45 and 7050MM37-70.
About PartsForMachines:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Hardness (Shore A) | 60 |
|---|---|
| Body diameter D (mm) | 70 |
| Overall height H (mm) | 50 |
| Stud thread d | M12 |
| Stud length L (mm) | 37 |
| Max load (kg) | 211 |
| Deflection (mm) | 4.4 |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: £3.99
Delivery Estimate: 3 to 5 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
|||||
| Technical Specification | |||||
|---|---|---|---|---|---|
| PRODUCT NUMBER | 7060MF37-60 | 10075MM44-45 | 6050FF12-70 | 5025MF25-70 | 7070FF10-60 |
| Type | Bobbin Mount | Bobbin Mount | Bobbin Mount | Bobbin Mount | Bobbin Mount |
| Length | 60mm | 75mm | 50mm | 25mm | 70mm |
| Size | 70x60mm | 100x75mm | 60x50mm | 50x25mm | 70x70mm |
| Deflection | 5.4 | 6.7 | 4.5 | 2 | 6.4 |
| Diameter | 70mm | 100mm | 60mm | 50mm | 70mm |
| Diameter Range | 51-100mm | 51-100mm | 51-100mm | 26-50mm | 51-100mm |
| Length Range | 51-100mm | 51-100mm | 26-50mm | 11-25mm | 51-100mm |
| Shore Hardness | 60 | 45 | 70 | 70 | 60 |
| Thread | M12 | M16 | M12 | M10 | M10 |
| Show More | |||||
A. This mount is rated to a maximum load of 211.0 kg with a deflection of 4.4 mm at that load, based on the published specification.
A. The 7050MM37-60 uses an M12 x 37 mm thread and is a male-male (Type A / Type 1) configuration, with a threaded stud protruding from both ends for direct bolted installation.
A. The rubber body measures 70 mm in diameter by 50 mm in height.
A. A 60 Shore A rating is a medium hardness. It provides a balance between vibration isolation and load-bearing capacity, making it broadly suitable for general industrial and power-generation equipment where neither maximum deflection nor maximum stiffness is the priority.
A. The mount may be used in shear, compression, or a combination of both, as stated in the product source data.
A. The family source confirms suitability for diesel engines, generator sets, air-conditioning units, exhaust mountings, industrial machinery, and equipment. Industries served include power generation, construction and off-highway, marine, agriculture, automotive, railway and mass transit, and military and defence.
A. Yes — the same 70 x 50 mm male-male body is available in a softer 45 Shore A grade (7050MM37-45) and a firmer 70 Shore A grade (7050MM37-70). Additional bobbin sizes include 0808MM06, 100100MM44, 10030MM44, 10040MM44, 10050MM44, and 10055MM44.
A. Stainless steel metals and oil-resistant or high-temperature rubbers, plus additional and custom sizes, are available on request.
