Product Number: 7555FF12-60
Variations

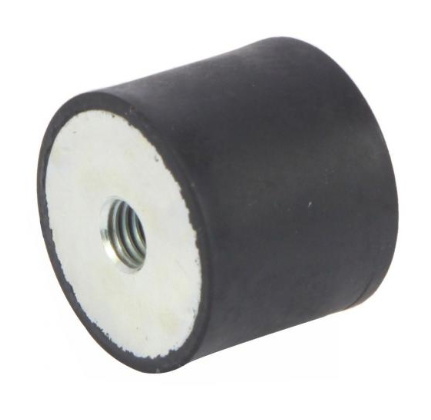

With a rated maximum load of 245.0 kg with a controlled deflection of 4.9 mm, the 7555FF12-60 is a 75 x 55 mm female-female bobbin mount threaded M12 to 60 Shore A hardness, a medium-grade specification that delivers the balanced combination of vibration isolation and structural support required for mainstream general-machinery applications. Where softer grades prioritise isolation at lighter loads and harder grades are tuned for high-load restraint, this 60 Shore A unit occupies the broad middle ground: firm enough to carry moderate loads without excessive movement, yet compliant enough to attenuate the vibration and shock energy that reduces machinery lifespan and affects operator comfort. Rubber-to-metal bonded construction throughout gives the mount dependable resistance to the shear, compression and combined loading conditions encountered across many industrial environments. The female-female thread configuration presents an M12 interface at both ends, simplifying installation and replacement in applications where a through-bolt arrangement is not practical. As part of a range that spans approximately 1 kg to 2,000 kg per mounting, the 245.0 kg capacity of this unit positions it as an upper-range option within the standard load band, suited to equipment that demands more than a light-duty mount can offer without requiring the stiffness of a high-Shore grade. Typical applications include industrial machinery and equipment, generator sets, diesel engines, air-conditioning units and instrument mounting, wherever a moderate-load anti-vibration solution must protect surrounding structures and improve operational reliability.
About PartsForMachines:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Hardness (Shore A) | 60 |
|---|---|
| Body diameter D (mm) | 75 |
| Overall height H (mm) | 55 |
| Fixing thread / bolt size d | M12 |
| Max load (kg) | 245 |
| Deflection (mm) | 4.9 |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: £3.99
Delivery Estimate: 3 to 5 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
|||||
| Technical Specification | |||||
|---|---|---|---|---|---|
| PRODUCT NUMBER | 6535MF25-60 | 7555MF37-60 | 6040MM25-70 | 6040MM37-70 | 6045FF10-70 |
| Type | Bobbin Mount | Bobbin Mount | Bobbin Mount | Bobbin Mount | Bobbin Mount |
| Length | 35mm | 55mm | 40mm | 40mm | 45mm |
| Size | 65x35mm | 75x55mm | 60x40mm | 60x40mm | 60x45mm |
| Deflection | 3 | 4.9 | 3.5 | 3.5 | 4 |
| Diameter | 65mm | 75mm | 60mm | 60mm | 60mm |
| Diameter Range | 51-100mm | 51-100mm | 51-100mm | 51-100mm | 51-100mm |
| Length Range | 26-50mm | 51-100mm | 26-50mm | 26-50mm | 26-50mm |
| Shore Hardness | 60 | 60 | 70 | 70 | 70 |
| Thread | M10 | M12 | M10 | M12 | M10 |
| Show More | |||||
A. This mount is rated to a maximum load of 245.0 kg with a deflection of 4.9 mm, making it suitable for moderate to upper-range general-machinery mounting duties.
A. A 60 Shore A rating places this mount in the medium-hardness band. Medium-grade mounts balance vibration isolation against structural support, carrying moderate loads with controlled movement — suited to the broad middle ground of general-machinery applications where neither maximum compliance nor maximum stiffness is required.
A. The mount features a female-female thread configuration with an M12 interface at both ends, allowing straightforward installation where a through-bolt arrangement is not practical.
A. The mount measures 75 mm in diameter by 55 mm in height (D x H: 75 x 55 mm) with an M12 thread.
A. The mount may be loaded in shear, compression or a combination of both, giving flexibility across a range of installation orientations.
A. Confirmed applications include industrial machinery and equipment, generator sets, diesel engines, air-conditioning units and instrument mounting. Industries served include construction and off-highway, agriculture, power generation, marine, automotive, and railway and mass transit.
A. Yes. The same geometry is available in 45 Shore A for greater isolation at lower loads (SKU 7555FF12-45) and 70 Shore A for higher-load, lower-deflection duty (SKU 7555FF12-70).
A. Yes. Stainless steel metalwork and oil-resistant or high-temperature rubber compounds, as well as additional and custom sizes, are available on request.
