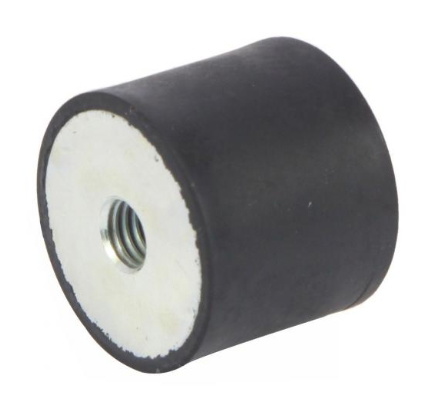

Product Number: 1515FF04-70
Rated at a maximum load of 15.8 kg with a controlled deflection of just 1.3 mm, the 1515FF04-70 is the firm-grade variant in the 15 x 15 mm female-female bobbin mount range, built for compact installations where secure retention and resistance to shock and impact take priority over maximum isolation. The 70 Shore A rubber compound delivers the highest load capacity and least movement of the three available hardness grades in this geometry, making it the appropriate choice where the mounted component must be held firmly against dynamic forces rather than allowed to deflect freely. Constructed with rubber-to-metal bonded technology, this bobbin mount accepts an M4 female thread at both ends and may be loaded in shear, compression, or a combination of both. The rubber-to-metal bond ensures consistent performance across the full rated load range, while the bobbin geometry keeps the installed envelope to 15 mm diameter and 15 mm height, suited to space-constrained brackets and light equipment housings. Stainless steel metalwork and oil-resistant or high-temperature rubber compounds are available on request for demanding environments. Applications for this firm 70 Shore A grade include exhaust mountings, instrument panels subject to mechanical shock, small generator sets, and automotive or off-highway components where positive restraint is required alongside vibration attenuation. The mount also serves agricultural, marine, railway, and industrial machinery installations wherever a 15 x 15 mm footprint and M4 fixing thread are specified alongside a requirement for firm, load-bearing performance.
About PartsForMachines:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Hardness (Shore A) | 70 |
|---|---|
| Body diameter D (mm) | 15 |
| Overall height H (mm) | 15 |
| Fixing thread / bolt size d | M4 |
| Max load (kg) | 15.8 |
| Deflection (mm) | 1.3 |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: £3.99
Delivery Estimate: 3 to 5 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
|||||
| Technical Specification | |||||
|---|---|---|---|---|---|
| PRODUCT NUMBER | 3030FF08-45 | 2515FF06-45 | 3020FF08-45 | 2520MM20-45 | 3030MF20-45 |
| Type | Bobbin Mount | Bobbin Mount | Bobbin Mount | Bobbin Mount | Bobbin Mount |
| Length | 30mm | 15mm | 20mm | 20mm | 30mm |
| Size | 30x30mm | 25x15mm | 30x20mm | 25x20mm | 30x30mm |
| Deflection | 2.6 | 1 | 1.2 | 1.6 | 2.6 |
| Diameter | 30mm | 25mm | 30mm | 25mm | 30mm |
| Diameter Range | 26-50mm | 11-25mm | 26-50mm | 11-25mm | 26-50mm |
| Length Range | 26-50mm | 11-25mm | 11-25mm | 11-25mm | 26-50mm |
| Shore Hardness | 45 | 45 | 45 | 45 | 45 |
| Thread | M8 | M6 | M8 | M8 | M8 |
| Show More | |||||
A. The 1515FF04-70 has a maximum load rating of 15.8 kg and a deflection of 1.3 mm, reflecting the firm 70 Shore A rubber grade's characteristic of carrying load with minimal movement.
A. The mount measures 15 mm in diameter by 15 mm in height (D x H: 15 x 15 mm) with an M4 female thread at both ends, providing a compact double-female fixing arrangement.
A. The three hardness grades suit different loading and isolation priorities. The 45 Shore A grade (1515FF04-45) provides greater deflection and better vibration isolation at lower loads. The 60 Shore A grade (1515FF04-60) offers a general-purpose balance of load capacity and isolation. The 70 Shore A grade (1515FF04-70) carries the highest load with the least deflection, making it appropriate for applications requiring firm retention and shock resistance.
A. This bobbin mount may be loaded in shear, compression, or a combination of both, giving flexibility in mounting orientation across a range of installation types.
A. The firm 70 Shore A grade is well suited to exhaust mountings, instrument panels subject to mechanical shock, small generator sets, and automotive or off-highway components where positive restraint is needed. It also serves agricultural, marine, railway, and general industrial machinery applications requiring an M4 fixing and a firm, load-bearing mount.
A. Yes — stainless steel metalwork and oil-resistant or high-temperature rubber compounds are available on request for applications where standard materials are not suitable.
