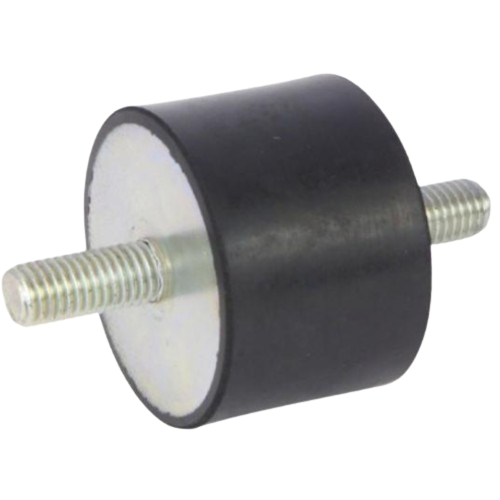

Product Number: 3015MM20-60
Sized at 30 x 15 mm with an M8 x 20 mm male-male stud configuration, the 3015MM20-60 is a compact rubber-to-metal bonded anti-vibration bobbin mount rated to a maximum load of 41.0 kg with a deflection of 1.1 mm, making it well suited to lighter, sensitive installations where a measured balance of isolation and structural support is required. At 60 Shore A, this medium-hardness grade sits at the mid-point of the bobbin mount range, offering a working compromise between the greater deflection of softer grades and the higher load capacity of firmer ones. The rubber-to-metal bonded construction provides reliable vibration and shock attenuation, and the mount may be loaded in shear, compression, or a combination of both, giving installation engineers flexibility in how it is oriented and used. With a compact 30 mm diameter and 15 mm height, this mount is particularly appropriate for lighter compact machinery, instruments, and sensitive equipment where excessive movement must be avoided but effective vibration attenuation remains a priority. Typical applications drawn from the product family include air-conditioning units, instrumentation panels, and light industrial machinery and equipment. The 60 Shore grade is the practical general-purpose choice for installations that do not fall clearly at either end of the load spectrum. This mount is available in additional Shore hardness grades within the 30 x 15 mm geometry: 45 Shore A for greater isolation at lower loads (3015MM20-45) and 70 Shore A for firmer support under higher loads (3015MM20-70).
Male Male Bobbins- also known as Type A Bobbins or Type 1 Bobbins. Low-cost Anti-Vibration solution for reducing vibration & shock. They can be used in either Shear or Compression or a combination and are available with various thread configurations. Additional Sizes are available, Plus Stainless-Steel metals and Oil Resistant / High Temperature rubbers available on request.
Applications include - General Purpose mountings, where a Male / Male Fixing is preferred. Popular in a wide range of applications & industries including Air Conditioning Units, Exhaust Mountings, Diesel Engines, Generator Sets, Instruments, Industrial Machinery & Equipment. Weight ranges from 1kg to 2000Kg per mounting.
About PartsForMachines:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Mount Dimension (D) | 30mm |
|---|---|
| Height (H) | 15mm |
| Thread Size (V) | M8 |
| Bolt Length (L) | 20mm |
| Max Load (Kg) | 41 |
| Deflection (mm) | 1.1 |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: £3.99
Delivery Estimate: 3 to 5 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
Anti-Vibration Mount - Male - Male Bobbin Range, M10, Max Load 41Kg - 4015MM25-45
£11.53
£11.30
2% OFF
|
||||
| Technical Specification | |||||
|---|---|---|---|---|---|
| PRODUCT NUMBER | 2520FF06-70 | 3025MF20-70 | 4015MM25-45 | 4020MM23-45 | 4020MM25-45 |
| Type | Bobbin Mount | Bobbin Mount | Bobbin Mount | Bobbin Mount | Bobbin Mount |
| Length | 20mm | 25mm | 20mm | 20mm | |
| Height | 15mm | ||||
| Size | 25x20mm | 30x25mm | 40x20mm | 40x20mm | |
| Deflection | 1.6 | 2.1 | 1.6 | 1.6 | 1.6 |
| Diameter | 25mm | 30mm | 40mm | 40mm | |
| Diameter Range | 11-25mm | 26-50mm | 26-50mm | 26-50mm | |
| Length Range | 11-25mm | 11-25mm | 11-25mm | 11-25mm | |
| Mount Dimension | 40mm | ||||
| Shore Hardness | 70 | 70 | 45 | 45 | |
| Thread | M6 | M8 | M10 | M8 | M10 |
| Show More | |||||
A. The mount has an outer diameter of 30 mm and a height of 15 mm, with M8 x 20 mm male-male threaded studs on both faces.
A. The 3015MM20-60 is rated to a maximum load of 41.0 kg with a deflection of 1.1 mm.
A. At 60 Shore A, this is the medium-hardness grade in the 30 x 15 mm bobbin mount range. It provides a balanced performance between the greater isolation deflection offered by softer grades and the higher load capacity of firmer grades, making it suitable for general-purpose mounting applications where both isolation and positional support are needed.
A. The 3015MM20-60 may be loaded in shear, compression, or a combination of both, giving flexibility in how it is orientated during installation.
A. Applications within the bobbin mount family include air-conditioning units, exhaust mountings, diesel engines, generator sets, instruments, and general industrial machinery and equipment. At 60 Shore A and 41.0 kg maximum load, this particular mount is especially well suited to lighter, compact, or sensitive installations.
A. Yes. The 30 x 15 mm male-male bobbin mount is also available in 45 Shore A (3015MM20-45) for greater deflection and isolation at lower loads, and 70 Shore A (3015MM20-70) for firmer support under higher loads.
A. Yes — stainless steel metalwork and oil-resistant or high-temperature rubber compounds, as well as additional and custom sizes, are available on request.
