Product Number: 4025MM25-60
Variations

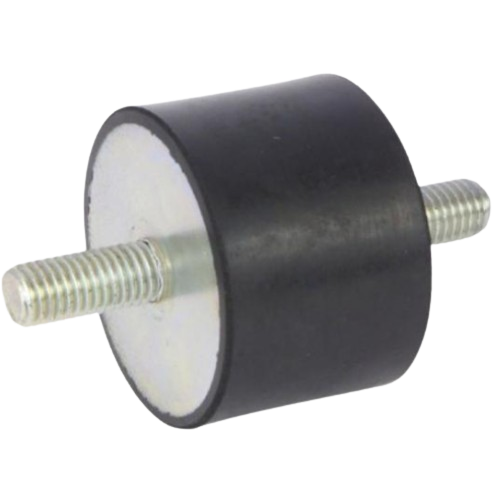

Sitting at the centre of the range, the 4025MM25-60 is a 40 x 25 mm male-male bobbin mount with M10 x 25 mm threaded studs, rated to a maximum load of 71.0 kg and a controlled deflection of 2.1 mm at 60 Shore A hardness, figures that place it firmly in the mainstream general-machinery bracket where balanced isolation and structural support are both required. This medium-grade hardness delivers the broad middle ground: enough compliance to attenuate vibration and protect sensitive instruments and surrounding structures, yet sufficient stiffness to carry moderate loads without excessive movement under normal operating conditions. Rubber-to-metal bonded construction gives the mount its mechanical integrity, and the geometry supports loading in shear, compression, or a combination of both, making it versatile across installation orientations. The 60 Shore A compound is the natural choice wherever a softer grade would permit too much deflection under working loads and a firmer grade would sacrifice isolation, generator sets, industrial machinery and equipment, air-conditioning units, and diesel engines are representative applications. The mount contributes to improved machinery lifespan, protection of surrounding structures, and better operator comfort across industries including power generation, agriculture, construction and off-highway, and marine. Custom sizes and, on request, stainless steel hardware or oil-resistant and high-temperature rubber compounds are available for specialist requirements beyond standard specification. This mount is part of a wider male-male bobbin family.
Male Male Bobbins- also known as Type A Bobbins or Type 1 Bobbins. Low-cost Anti-Vibration solution for reducing vibration & shock. They can be used in either Shear or Compression or a combination and are available with various thread configurations. Additional Sizes are available, Plus Stainless-Steel metals and Oil Resistant / High Temperature rubbers available on request.
Applications include - General Purpose mountings, where a Male / Male Fixing is preferred. Popular in a wide range of applications & industries including Air Conditioning Units, Exhaust Mountings, Diesel Engines, Generator Sets, Instruments, Industrial Machinery & Equipment. Weight ranges from 1kg to 2000Kg per mounting.
About PartsForMachines:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Mount Dimension (D) | 40mm |
|---|---|
| Height (H) | 25mm |
| Thread Size (V) | M10 |
| Bolt Length (L) | 25mm |
| Max Load (Kg) | 71 |
| Deflection (mm) | 2.1 |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: £3.99
Delivery Estimate: 3 to 5 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
Anti-Vibration Mount - Male - Female Bobbin Range, M10, Max Load 70Kg - 5030MF25-60
£13.68
£13.41
2% OFF
|
||||
| Technical Specification | |||||
|---|---|---|---|---|---|
| PRODUCT NUMBER | 5030FF10-45 | PR464025-60 | 5030MF25-45 | 5030MF25-60 | 4025MF20-60 |
| Type | Bobbin Mount | Bobbin Mount | Bobbin Mount | Bobbin Mount | Bobbin Mount |
| Length | 30mm | 30mm | 25mm | ||
| Height | 30mm | ||||
| Size | 50x30mm | 46mm | 50x30mm | 50x30mm | 40x25mm |
| Deflection | 2.5 | 2.5 | 2.5 | 2.1 | |
| Diameter | 50mm | 50mm | 40mm | ||
| Diameter Range | 26-50mm | 26-50mm | 26-50mm | ||
| Length Range | 26-50mm | 26-50mm | 11-25mm | ||
| Mount Dimension | 50mm | ||||
| Shore Hardness | 45 | 60 | 45 | 60 | |
| Size Range | 26-50mm | ||||
| Thread | M10 | M10 | M10 | M10 | M8 |
| Show More | |||||
A. The mount has an outer diameter of 40 mm and a height of 25 mm, with M10 x 25 mm threaded studs. It is rated to a maximum load of 71.0 kg with a deflection of 2.1 mm at 60 Shore A hardness.
A. The 4025MM25-60 is suited to a broad range of applications at moderate loads, including generator sets, industrial machinery and equipment, air-conditioning units, diesel engines, and instruments. It serves industries such as power generation, agriculture, construction and off-highway, and marine.
A. Yes. The rubber-to-metal bonded construction allows the mount to be used in shear, compression, or a combination of both, giving flexibility across different installation orientations.
A. At 60 Shore A, this mount delivers a balance of vibration isolation and load-carrying support appropriate to the broad middle ground of general-machinery mounting. Where a softer grade would allow excessive deflection under moderate working loads, and a firmer grade would reduce isolation performance, the 60 Shore A grade is the appropriate choice for mainstream applications at up to 71.0 kg.
A. Yes. The same geometry is offered in 45 Shore A (4025MM25-45) and 70 Shore A (4025MM25-70), allowing selection of a softer or firmer grade to match specific load and isolation requirements.
A. Yes. Stainless steel hardware and oil-resistant or high-temperature rubber compounds, as well as additional and custom sizes, are available on request beyond the standard specification.
