Product Number: 4020MF23-60
Handling loads up to 79.0 kg with a controlled deflection of 1.6 mm, this 40 x 20 mm male-female bobbin mount (SKU 4020MF23-60) occupies the productive middle ground of the anti-vibration range, delivering a measured balance between isolation performance and structural support that makes it well suited to lighter, compact or sensitivity-conscious installations. The M8 male stud (d1 x L: M8 x 23) and M8 female thread (d2: M8) allow direct in-line installation without additional hardware, and the 60 Shore A rubber hardness sits at the mid-point of the available grade options, providing useful deflection without the high movement associated with softer grades. Rubber-to-metal bonded construction gives the mount consistent load transfer in shear, compression or a combination of both loading modes. The bonded interface improves machinery lifespan by reducing transmitted vibration and shock, protects surrounding structures from stress, and contributes to improved operator comfort in attended applications. Stainless steel metal inserts and oil-resistant or high-temperature rubber compounds are available on request for more demanding environments, as are custom sizes. At 60 Shore A this mount is particularly appropriate for instruments, air-conditioning units, generator sets and industrial machinery and equipment where vibration isolation and modest positional control are both required. It is equally applicable across the construction and off-highway, agricultural, power generation, marine, railway and mass transit, automotive, and military and defence sectors wherever a mid-range bobbin mount is specified. This mount is one of a range of male-female bobbins available from PartsForMachines.
Male Female Bobbin Mounts referred to as Type B Bobbin or Type 2 Bobbins. They are a low-cost solution to reducing vibration & shock and are used in applications where a bolt fixing is required. They can be used in either Shear of Compression or a combination of both and can be produced with different thread variations. Many additional sizes are also offered, and the Bobbins can also be produced in Stainless Steel and Oil Resistant & High Temperature rubber compounds.
Applications include - General Purpose mounts, where a Male / Female connection is required. Suitable for a wide range of applications & industries which may include Diesel Engines, Generator Sets, Instrumentation, Industrial Machines & Equipment. Weight ranges from 1kg to 2000Kg per mount.
About PartsForMachines:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Mount Dimension (D) | 40mm |
|---|---|
| Height (H) | 20mm |
| Thread size (V) | M8 |
| Bolt Length (I) | 23mm |
| Max Load (Kg) | 79 |
| Deflection (mm) | 1.6 |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: £3.99
Delivery Estimate: 3 to 5 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
|||||
| Technical Specification | |||||
|---|---|---|---|---|---|

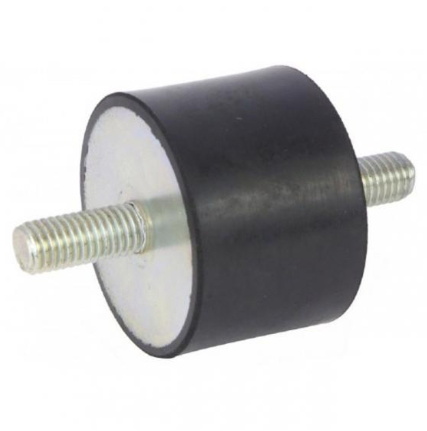

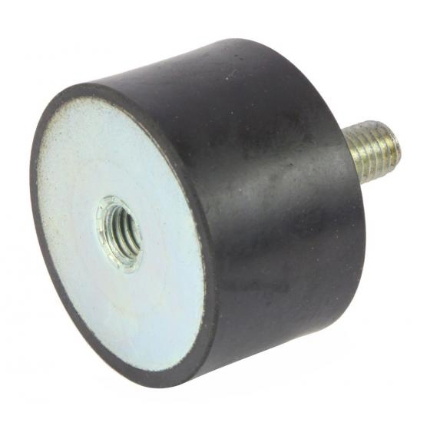

| PRODUCT NUMBER | 4020MF25-60 | 4035FF08-70 | 4035FF10-70 | 5025MM25-45 | 4035MF23-70 |
| Type | Bobbin Mount | Bobbin Mount | Bobbin Mount | Bobbin Mount | Bobbin Mount |
| Length | 20mm | 35mm | 35mm | 25mm | 35mm |
| Size | 40x20mm | 40x35mm | 40x35mm | 50x25mm | 40x35mm |
| Deflection | 1.6 | 2.5 | 2.5 | 2 | 3.1 |
| Diameter | 40mm | 40mm | 40mm | 50mm | 40mm |
| Diameter Range | 26-50mm | 26-50mm | 26-50mm | 26-50mm | 26-50mm |
| Length Range | 11-25mm | 26-50mm | 26-50mm | 11-25mm | 26-50mm |
| Shore Hardness | 60 | 70 | 70 | 45 | 70 |
| Thread | M10 | M8 | M10 | M10 | M8 |
| Show More | |||||

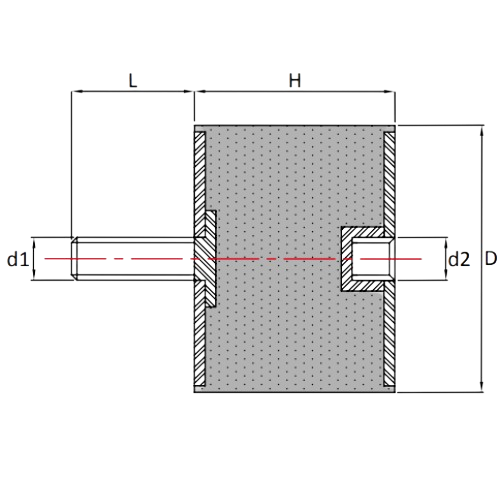

A. The mount measures 40 mm diameter by 20 mm height (D x H). The male stud is M8 with a 23 mm length (d1 x L: M8 x 23) and the female thread is M8 (d2: M8).
A. This 60 Shore A bobbin mount is rated to a maximum load of 79.0 kg with a deflection of 1.6 mm at that load.
A. At 60 Shore A, this mount balances vibration isolation with positional support, making it well suited to lighter, compact or sensitivity-conscious installations. Softer grades (such as 45 Shore A) give greater deflection and better isolation at lower loads; firmer grades (such as 70 Shore A) carry higher loads with less movement but reduced isolation.
A. The mount may be loaded in shear, compression, or a combination of both, giving flexibility in how it is installed and oriented within a machine assembly.
A. Source applications include air-conditioning units, exhaust mountings, diesel engines, generator sets, instruments, and general industrial machinery and equipment across sectors including power generation, marine, agriculture, construction and off-highway, automotive, railway and mass transit, and military and defence.
A. Yes — stainless steel metal inserts, oil-resistant rubber compounds, high-temperature rubber compounds, and custom sizes are all available on request.
A. The 40 x 20 mm M8 bobbin is also available in 45 Shore A (SKU 4020MF23-45) and 70 Shore A (SKU 4020MF23-70). Larger-format and alternative thread variants include 4020MF25-60, 5050MF25-60, 100100MF44, 10050MF44, 10055MF44, 10060MF44, 10075MF44 and 1008MF10.
A. Every product comes with a different guarantee and warranty. Warranty details are shown in the product tech specs or datasheet where available.
A. Yes — WhatsApp us on 07754 288583 with any questions about specifications, suitability, or compatibility.
A. Yes — WhatsApp us on 07754 288583 with any questions about specifications, suitability, or compatibility.
