Product Number: 4028MF25-60

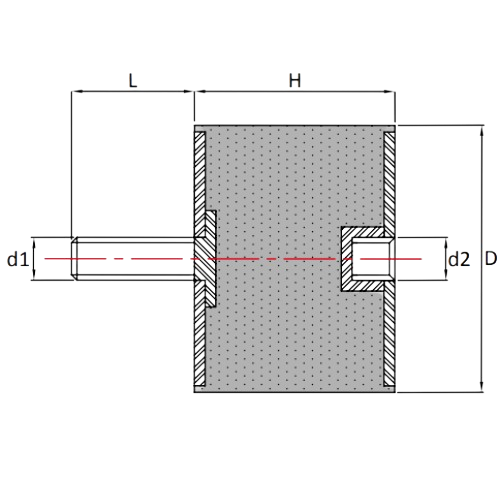

The 4028MF25-60 is a anti-vibration mount from AV Industrial Products, rated to 73 kg. Key dimensions: Mount Dimension (D) 40 mm; Height (H) 28 mm; Bolt Length (I) 25 mm.
Fit is by dimensions - match the figures in this listing's technical specifications against the part being replaced, or WhatsApp our team with your measurements before ordering. Bobbin mountings of this type are used across construction, agriculture, material handling and power generation, from combustion engines and generating sets to instruments and transit cases. Typical homes for this size include generating sets, compressors, instrument panels and general industrial machinery where a compact isolator is wanted.
About PartsForMachines:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Mount Dimension (D) | 40mm |
|---|---|
| Height (H) | 28mm |
| Thread size (V) | M8 |
| Bolt Length (I) | 25mm |
| Max Load (Kg) | 73 |
| Deflection (mm) | 2.1 |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: £3.99
Delivery Estimate: 3 to 5 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
Anti-Vibration Mount - Male - Male Bobbin Range, M8, Max Load 71Kg - 4025MM23-60
£11.80
£11.57
2% OFF
|
||||
| Technical Specification | |||||
|---|---|---|---|---|---|
| PRODUCT NUMBER | 4025MF20-60 | 4045MM25-70 | 4040MM23-70 | 4040MM25-70 | 4025MM23-60 |
| Type | Bobbin Mount | Bobbin Mount | Bobbin Mount | Bobbin Mount | Bobbin Mount |
| Length | 25mm | 45mm | 40mm | 40mm | |
| Height | 25mm | ||||
| Size | 40x25mm | 40x45mm | 40x40mm | 40x40mm | |
| Deflection | 2.1 | 4.1 | 3.6 | 3.6 | 2.1 |
| Diameter | 40mm | 40mm | 40mm | 40mm | |
| Diameter Range | 26-50mm | 26-50mm | 26-50mm | 26-50mm | |
| Length Range | 11-25mm | 26-50mm | 26-50mm | 26-50mm | |
| Mount Dimension | 40mm | ||||
| Shore Hardness | 60 | 70 | 70 | 70 | |
| Thread | M8 | M10 | M8 | M10 | M8 |
| Show More | |||||
A. Fit is dimensional. Match the dimensions in this listing's technical specifications (Mount Dimension (D) 40 mm; Height (H) 28 mm; Bolt Length (I) 25 mm) against the part you are replacing, or WhatsApp our team to confirm.
A. 73 kg maximum, as stated in this listing.
A. We accept returns within 30 days of purchase for items that are unused, undamaged, and in their original packaging. Returns are available only for UK-delivered orders and must include proof of purchase. Before returning an item, please contact us at [email protected] to obtain a Return Merchandise Number (RMN).
A. Every product comes with a different guarantee and warranty. Warranty details are shown in the product's tech specs or datasheet where available.
